CAT MD6310 Driller Improves Drilling Efficiency

CAT MD6310 Driller Improves Drilling Efficiency

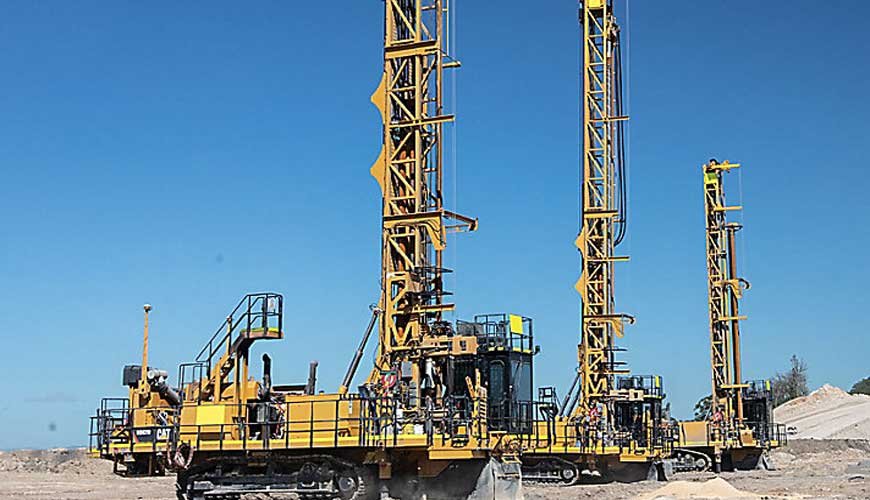

Cat MD6310 blast hole drill offers substantial technology, efficiency, and productivity improvements. A key advantage of the machine, Cat Electronics delivers advanced troubleshooting for efficient drill operation and scalable automation. The building blocks include drill assist, semi-autonomous and remote control operation, and machine health reporting to improve drilling accuracy, reduce fuel consumption and lower total cost of ownership. The new MD6310 is application-built for efficient single pass drilling down to 13.7 m (44.9 ft) or 17.5 m (57.4 ft), depending on mast configuration. Offering up to 30-degree angle holes for cast blasting, it is ideal for numerous mining applications. Reaching deeper hole depths than the MD6420C, the MD6310 better matches specific drill and blast requirements when working with Electric Rope Shovels or other loading tools that require a tall and steep muck pile. Standard on the MD6310 is a drill depth indicator, auto level/retract, auto mast, all of which contribute to cycle time improvement.

Cat Terrain for drilling guides the drill for up to 4 times greater pattern accuracy to ensure every hole is accurately placed and drilled to plan. Cat Terrain’s logging function ensures all production is timed, mapped and recorded. Cat Terrain’s HP GPS ensures:

• Accurate hole placement based on HP GPS navigation
• Proper hole depth achieved using GPS to calculate and adjust based on altitude
• Proper hole angle through orienting the drill heading and position

The MD6310 offers semi-autonomous drilling of single row missions and remote control operation for remote operation missions. One remote operator station allows an operator to manage drill operations and run up to three machines simultaneously.

MD6310 Specifications

Engine : Cat C32 ACERT

Max Net Power @ 1,800 rpm (Tier 4 Final /Equivalent Tier 2) : 760 kW (1,018 hp) / 770 kW (1,032 hp)

Bit Load, single pass – 13.7 m / 17.5  mast : Up to 31 640 kg (69,755 lb) / Up to 42 149 kg (92,922 lb)

Hole Diameter – 13.7 m / 17.5  mast : 203 mm to 279 mm (8 in to 11 in) / 203 mm to 311 mm (8 to 12.25 in)

Single-pass Hole Depth – 13.7 m / 17.5  mast : 13.7 m (44.9 ft) / 17.5 m (57.4 ft)

Multi-pass Hole Depth – 13.7 m / 17.5 : Down to 62.5 m (205 ft) / Down to 48 m (157.5 ft )
