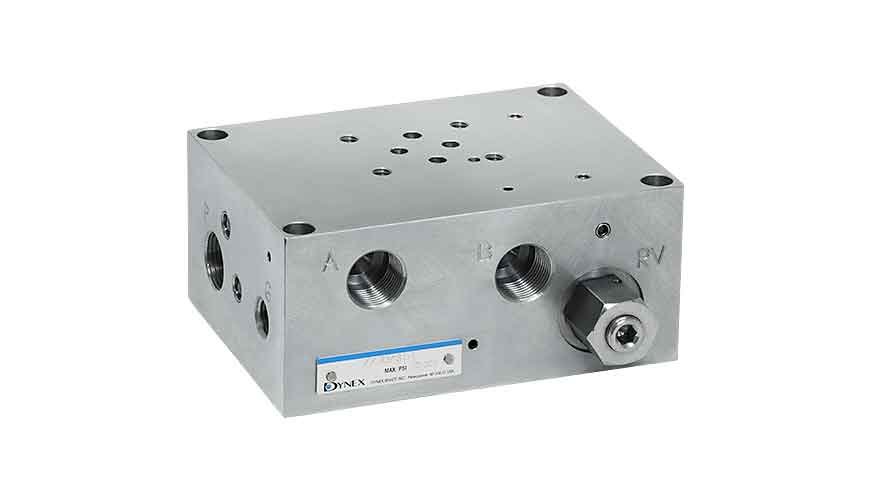

Dynex SPRV Series Subplates

Dynex SPRV Series Subplates
Dynex is introducing a line of sub plates with integral relief valves. The integral relief valve is adjustable and provides circuit protection in a low profile configuration eliminating the need for additional plumbing and connections. SPRV Series sub plates provide easy transition from standard N.F.P.A. and special Dynex high pressure or high flow mounting patterns to common hydraulic connections. Each includes an integrated, adjustable relief valve for circuit protection.

DIRECTIONAL CONTROL VALVE SUBPLATES WITH INTEGRAL RELIEF VALVES
Rated Pressure to: 5 000 psi (345 bar) — 10 000 psi (700 bar) Depending on model.
Available for the following valve mounting patterns:
D03 Pattern
HP03 Pattern [10 000 PSI (700 Bar)]
D05 Pattern
D05H Pattern
D08 Pattern
