Eaton’s FloWash™ portable filters are compact, self-contained, and easy to operate. They provide versatile, reliable filtration for a wide range of industrial applications. The Industrial and Basic carts clean and revitalize industrial fluids helping industrial users maintain fluid cleanliness, improve performance, and reduce their amount of waste and disposal costs. It comes in Two different designs.

1.FloWash™ Industrial Filter Cart
Eaton’s FloWash™ portable filters are compact, self-contained, and easy to operate. Each model is equipped with Eaton’s FLOWLINE II™ high-performance single bag filter housing. A flexible system that operates in-line or as a stand-alone portable filtration system. Safe to operate and easy to maintain.

FloWash Industrial Filter Cart Components

FLOWLINE II™ fabricated filter vessel features a unique one-piece body design with safe and reliable “no tools required” access for bag replacement. The FloWash filter cart system is rated 125 psi and 150 °F.

Filter vessel is available in carbon or stainless steel with elastomer seal options of Buna N, EPDM, or Viton.

Double diaphragm pump is powered by compressed air. No electric power needed.

Eaton Model 30R Strainer with a 1/8" perforated basket prefilters incoming contaminated fluids on the carbon steel model, and the Model 72 Strainer pre-filters fluids on the stainless steel version.

The filter vessel includes 1-1/2" inlet and outlet hoses, extension wands, and pressure gauge.

FloWash Industrial Filter Cart Specifications

Dimensions: Approximately 25"W x 31"D x 49"H

Weight: Approximately 220 lbs empty, 278 lbs full

Power: 30 psi shop air (20 to 125 psi operating range)

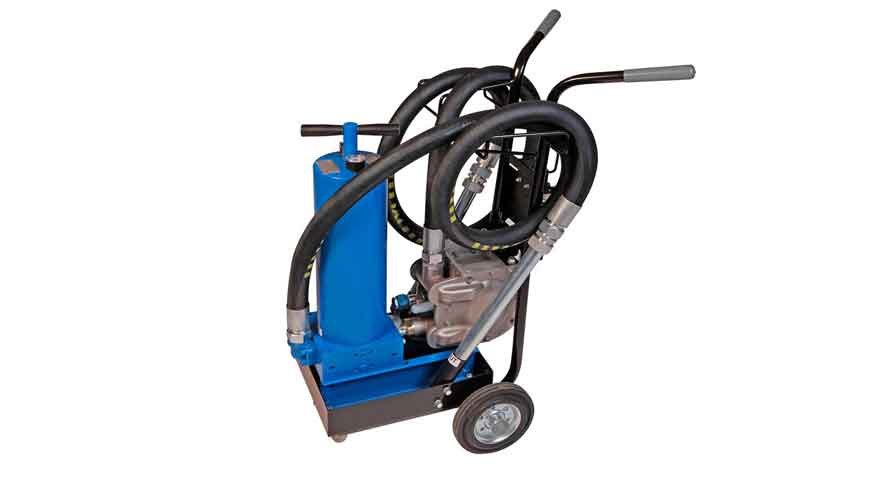

2. FloWash™ Basic Filter Cart
The Eaton FloWash Basic Filter Cart is an easy-to-deploy mobile system that helps keep your shop floor fluids cleaner for improved production efficiency. It can be used on-line or as a stand-alone filter station. Save on replacement fluids as well as the associated disposal costs by cleaning machine coolants, hydraulic oils, and many other fluids.

FloWash Basic Filter Cart Components

FLOWLINE II™ fabricated filter vessel features a unique one piece body design with safe and reliable “no tools required” access for bag replacement. The FloWash Basic Filter Cart is

rated 75 psi and 180 °F.

Carbon steel filter vessel, pump and cart are equipped with Buna-N seals for high-performance, leak-free service

Centrifugal, 1/2 HP pump requires priming only if the pump is completely drained. The fully enclosed fan-cooled, electric motor is outdoor rated and includes a ground-fault circuit interrupter (GFCI).

Filter cart includes a 1” diameter, 45” long suction and discharge wand with an 8’ Eaton Weatherhead® hose. Fast acting nylon cam and groove couplings make connections easy. The nitrile with a neoprene cover hose is reinforced with cable wire and fiber braid.

SPLASH GUARD cover helps make changeouts safer.

FloWash Basic Filter Cart Specifications

Dimensions: Approximately 22.25”W x 17”D x 51.75”H

Weight: Approximately 185 lbs empty and 243 lbs full (water)

Power: 115 VAC/9A @ 60 Hz

Model: F3F000004-B Basic Filter Cart, Carbon Steel with Buna-N Elastomers
