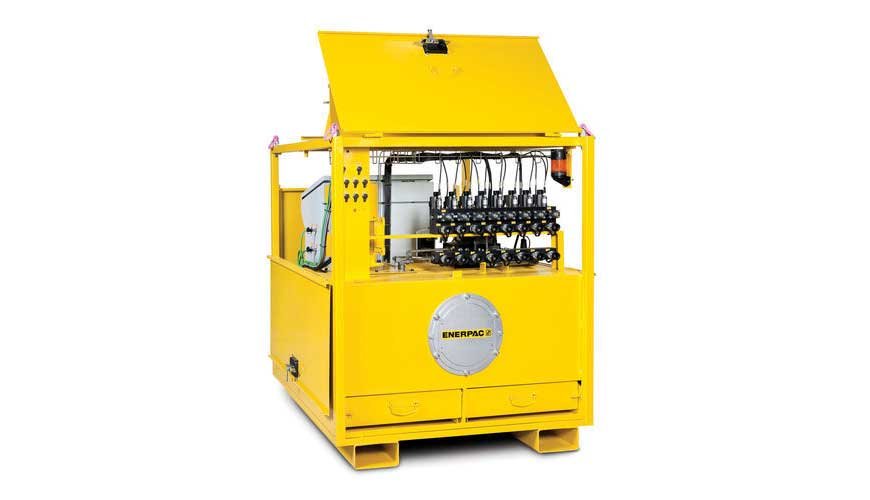

Enerpac EVO-Series Lifting Systems

Enerpac EVO-Series Lifting Systems

Enerpac’s family of EVO synchronous lifting systems provides precision control suitable for most lifting/lowering applications. To achieve high-precision movement of heavy objects it is necessary to control and synchronize the movements of multiple lifting points.
The PLC-control uses feedback from multiple sensors to control the lifting, lowering and positioning of any large, heavy or complex structure, regardless of weight distribution. PLC-controlled synchronous lifting systems reduce the risk of bending, twisting or tilting, due to uneven weight distribution or load-shifts between the lift points.
By varying the oil flow to each cylinder, the system maintains very accurate positional control. By eliminating manual intervention, the sync lift helps maintain structural integrity and increases the productivity and safety of the lift.

Features
Managing lifting operations from a central control system improves safety and operational productivity

Lifting system to control 4, 8 or 12 lifting points (12 points for Standard EVO only)

Intuitive user interface provides easy set-up and control with multiple lifting options

Accuracy of up to 0.040 in (1 mm) between leading and lagging cylinders

For use with standard single- or double-acting cylinders

Built-in warning and stop alarms for optimum safety

Available with several flow options for optimal lifting speed

Products
Enerpac offers two series of Synchronous Lift Systems:

Standard Synchronous Lift Systems (EVO): a comprehensive system for numerous applications

Basic Synchronous Lift Systems (EVOB): an economical solution for basic applications

Custom systems tailored to unique project requirements are also available.

The Standard EVO-System has nine work modes. The operator can navigate to any of these menus:
Manual

Pre-Load

Automatic

Retract Fast

Depressurize

Tilting

Stage Lift

Weighing*

Center of Gravity determination*

Available in the EVO-W System with calibrated sensors
