FSL New Remote Control System

FSL New Remote Control System For Tipping Reject Grids On Bulk Material Handling Equipment
FSL have launched a new remote control system for tipping reject grids which will increase efficiency and safety of operation within washing, crushing and screening operations. Designed for bulk material handling machinery, the FSL Minigrip remote control system allows a safer, efficient operation (raising & lowering) of hydraulic tipping reject grids as featured on a wide range of wash plants, screeners & crushers on bulk material handling equipment

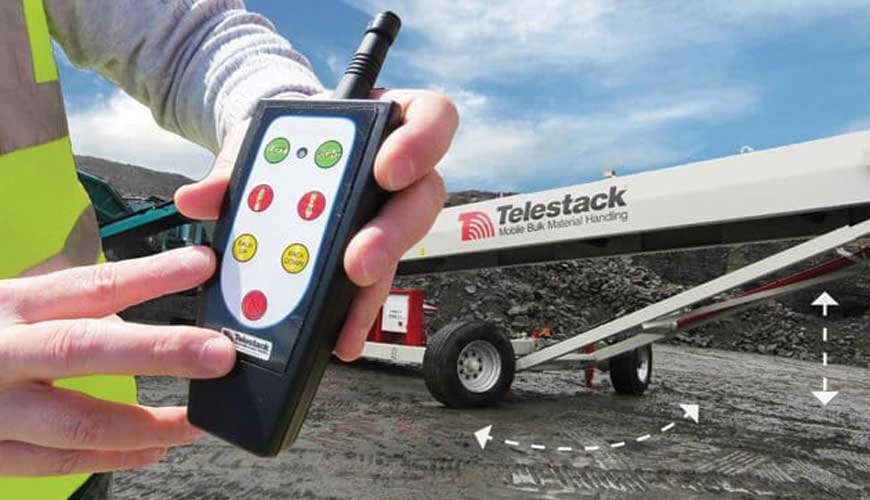

The system is complete with an ergonomically designed, light, compact sized Minigrip transmitter with 2 buttons for safe, efficient, wireless operation. The Minigrip label can be custom designed with customer / OEM logos. FSL Ultrabeam® Radio systems have become the industry standard proven to be among the most durable remote controls ever produced with many units operating in the harshest environments for over 15 years without fail.

Technical information
Transmitter:
2 button Minigrip handset
Radio frequency 433 MHz (other frequencies available on request)
Sealed to IP55 protection rating
Custom label design with customer logo/graphics
2 x AAA replaceable batteries
Dimensions: 140 x 63 x 32mm
Weight: 150g (approx)

Receiver
2 channel radio receiver<
2 x N/O volt free momentary relays for up/down
4 x buttons for manual override plus setup
12/24V DC supply
Sealed to IP65 protection rating
Supplied with external antenna & mounting brackets
