Hawe Hydraulik introduces New Hydraulic Products Shuttle valves. These are type of Check Valve. They have two inlets and one outlet. As soon as a pressure signal is present on at least one of the two inlets, an outlet signal is generated. The inlet with the higher pressure is automatically connected to the outlet. The other inlet with lower pressure is blocked by a ball (OR operator).

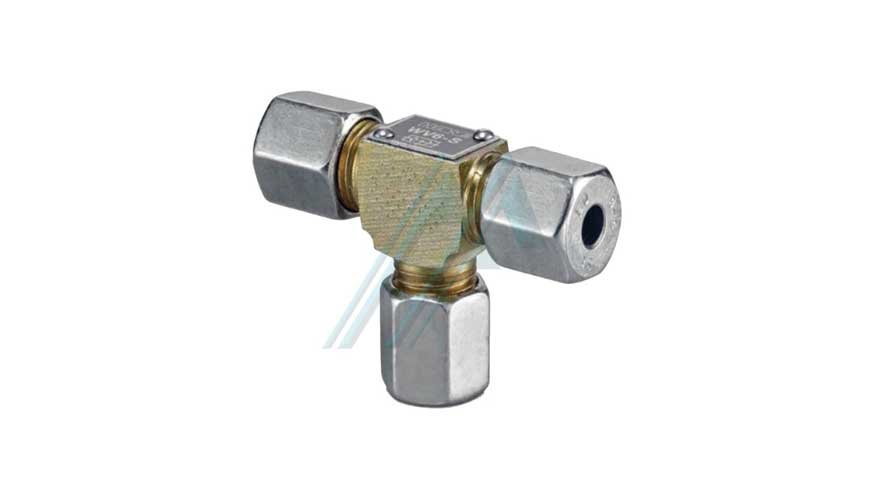

The shuttle valve type WV is integrated in a T-fitting for pipe connection. The type WVC is a screw-in valve. The shuttle valves can withstand pressures up to 700 bar and have low flow resistances.
They can be used for transmitting control pressures or control and operating volumetric flows.

Features and benefits:
Pressures up to 700 bar
Insert and housing versions

Intended applications:
In load-sensing systems
Often in mobile hydraulics
Construction and construction materials machinery
Cranes and lifting equipment
Road vehicle
