How does water pressure impact efficiency in hydraulic mining?

Hydraulic mining is one of the most effective and efficient methods to extract soft or weakly consolidated material such as alluvial Gold, gravel, sand, and some mineral ores. At the core of this process is a simple but extremely powerful factor: water pressure. By sending high-pressure water jets towards deposits, hydraulic mining systems break down materials and transport them to be processed.

While the idea may seem simple, the effectiveness of hydraulic mining is dependent on the efficiency with which water pressure is produced, controlled, applied, and maintained. Insufficient pressure can result in weak material degradation, whereas excessive pressure can cause environmental damage, wastage, and wear on equipment. Understanding the relation between pressure in the water and the efficiency of mining is essential for optimizing mining operations.

Understanding hydraulic mining and water pressure

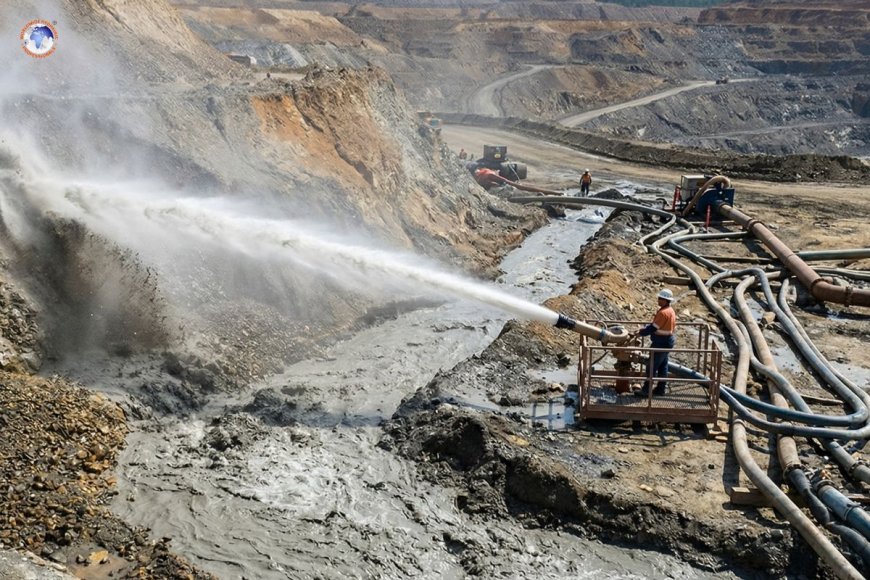

Hydraulic mining makes use of powerful water jets, usually delivered via devices known as cannons or monitors, to break up and move earth-based substances. The loose material is a slurry that is then transported via pipelines or channels for separation and reuse.

The term "water pressure" in this context is the force per square inch generated by the water flow. It is usually expressed in pounds or bars in square inches (psi). The pressure is created by pumps or gravity-fed systems according to the configuration of the location.

The efficiency of hydraulic mining can be described as the proportion of the material that is extracted as well as processed, considering the resources and energy used. The pressure of water directly affects the efficiency of mining through many interconnected elements.

The role of water pressure in material disintegration

The main function of pressure water during hydraulic mining is to break down the material being mined. The efficiency of this process is dependent on:

1. Jet velocity and impact force

A higher pressure in water results in a greater jet speed. When the water jet hits the face of the rock, it transmits kinetic energy to the rock, causing it to break into pieces.

• The reason for low-pressure is Insufficient energy to dislodge the compacted or cohesive material
• The optimal pressure-efficient fragmentation, with minimum energy loss
• Pressure is excessive, energy loss from the splashback and turbulence

The efficient mining process occurs at the point where pressures are sufficient to overcome the material's strong cohesiveness, without the need for unnecessary energy.

2. Depth of penetration

The pressure in the water determines how far the jet is able to penetrate the deposit. The higher pressure allows the jet to penetrate deeper into the deposit, which reduces the requirement for several passes.

• Increased penetration improves productivity per unit time
• Reduces costs for operating and labour
• Improves the overall efficiency of

Beyond the threshold of a certain amount, increased pressure results in decreased returns since further penetration is unlikely to significantly increase material recovery.

Influence on material transport efficiency

After the material has been dislodged, it is then transported in a Slurry. Water pressure can influence this step as well.

1. Slurry formation

A proper pressure will ensure that water is properly mixed with solids, which results in a stable fluid that flows easily.

• The low-pressure Mixing issues, which can cause blocks and irregular flow
• The ideal pressure for smooth slurry formation and transportation
• High pressure: High dilution, increasing the use of water, and decreasing the efficiency of processing

2. Flow rate and transport distance

A higher pressure in water is usually a sign of increased flow rates. This aids in transporting materials across longer distances, without getting settled.

The efficiency of transport can be reduced:

• The downtime is caused by blocked connections
• Energy needed for secondary pumping
• Material losses during handling

But too much flow could cause the mineral to be diluted, which makes the downstream process less efficient.

Energy consumption and operational efficiency

The pressure of water is directly related to the power required to run pumps. This has a major impact on efficiency overall.

1. Pumping costs

To create high pressure, you need powerful pumps that consume significant energy.

• Higher pressure = higher energy consumption
• The efficiency of a mine is dependent on the ability to balance pressure and the actual needs of mining

Unnecessarily high pressure will increase:

• Electricity or fuel costs
• Wear and tear on equipment
• Maintenance frequency

2. Pressure optimization

The modern hydraulic mining system seeks to improve pressure, rather than increase it. This includes:

• Pressure matching the type of material
• The nozzle can be adjusted in size and shape.
• Using variable-speed pumps

The optimized pressure system ensures the maximum removal of material with minimal energy usage, thus increasing the efficiency of the process.

Impact on equipment performance and longevity

The pressure of water does not just affect mining efficiency, but it also affects the longevity of the equipment.

1. Wear and tear

High-pressure water jets can lead to erosion in:

• Nozzles
• Pipes
• Pumps
• Valves

The excessive pressure causes wear and tear, which can result in:

• Replacements frequently
• More downtime
• More expensive maintenance costs

2. System reliability

Maintaining pressure levels within the optimal range assures stability in system performance. Sudden pressure fluctuations can cause:

• Pipe explodes
• Pump failures
• Safety hazards

The control of pressure can improve reliability and minimize interruptions that could occur.

Environmental considerations

The pressure of water plays an important influence on the environmental impact of mining hydraulics.

1. Erosion and sediment control

Jets of high pressure can cause excessive erosion, which can lead to:

• Sediment runoff in nearby water bodies
• Landscape degradation
• Reclamation costs are rising.

Pressures that are controlled and lower reduce the environmental impact while also ensuring that it is efficient.

2. Water usage efficiency

Pressure that is higher often demands a greater volume of water. A well-designed pressure management system can reduce the consumption of water, which is particularly important in areas with a shortage of water.

Closed-loop water recycling systems and recycling circuits could further increase efficiency by decreasing the need for fresh drinking water.

Effect of material type on pressure requirements

Different materials require different pressure levels for optimal efficiency.

1. Loose materials (e.g., sand, gravel)

• Requires a relatively low pressure
• Excess pressure leads to unneeded energy consumption

2. Compact or clay-rich deposits

• It is necessary to apply more pressure to break the bonds of cohesion
• A proper selection of pressure is essential to maximize productivity

3. Rocky or cemented deposits

• It may require extremely high pressure or other mechanical techniques
• The mining of hydraulics on its own may not be enough

The ability to match pressure with the material's characteristics is crucial to maximising efficiency.

Technological advancements in pressure control

The modern hydraulic mines employ modern technology to maximize the pressure of water.

1. Automated pressure control systems

The control and sensor systems constantly check the pressure and regulate it in real-time to ensure the same level of performance.

2. High-efficiency pumps

Modern pumps are engineered to provide high pressure and lower energy consumption, which improves the overall efficiency of the system.

3. Advanced nozzle design

Specialized nozzles improve the jet's focus and transfer of energy and allow for efficient material disintegration even at low pressures.

Balancing pressure and efficiency: key strategies

To get the most efficient use of hydraulic mining, miners must achieve an equilibrium between energy consumption, pressure, and the material's characteristics. The most effective strategies are:

• Conducting a site-specific analysis of pressure
• By using nozzles that are adjustable and flow control
• Implementing real-time monitoring systems
• Operators are trained to control pressure effectively
• Regular maintenance of pipelines and pumps

This ensures that pressure water is utilized most efficiently while minimizing waste and increasing output.

Challenges in pressure management

Despite its importance, regulating the pressure of water in hydraulic mining poses a variety of problems:

• Variability in the composition of the material
• Variations in the water supply
• Equipment limitations
• Environmental laws

To overcome these issues, a combination of engineering knowledge, operating experience, operational knowledge, and support from technology.

Future outlook

As the mining sector progresses towards greater efficiency and sustainability, the importance of water pressure is set to change. Future developments may include:

• Artificially-driven systems for pressure optimization
• Technologies for energy-efficient pumping
• Improved methods for water recycling
• Sustainable mining practices for mining

These developments will help to reduce the environmental impact of mining hydraulics while ensuring a high level of productivity.

The pressure of water is the primary factor that drives hydraulic mining, and it has an impact on every step of the process, from the disintegration of materials to the transport of slurry and the overall effectiveness of the system. Although higher pressure may increase efficiency, it also raises the use of energy, wear on equipment, and the environmental impact.

The most effective way to extract hydraulic minerals is not by increasing pressure, but by improving it. By taking care to balance pressure with materials' characteristics, energy consumption, and operating goals, mining operations can attain more efficiency, lower cost, and a less negative environmental impact.

In a business where sustainability and margins are becoming more important, understanding the importance of water pressure is crucial to ensure long-term success.
