How often should heavy equipment hydraulic components be inspected?

Heavy equipment hydraulic components should be inspected on a tiered schedule: a quick visual walk-around before every shift, a more detailed check every 250 to 500 operating hours, and a full condition assessment every 1,000 to 2,000 hours or annually. Hoses, cylinders, filters, and fluid need the most frequent attention, while pumps, motors, and valves can be checked less often, as long as condition monitoring is in place. Harsh duty cycles, high heat, and heavy contamination should shorten every interval. Hydraulics are the muscle of excavators, loaders, dozers, cranes, and graders. When a hydraulic component fails in the field, the cost goes well beyond the part itself. Unplanned downtime, environmental cleanup from spilled oil, and secondary damage to expensive pumps and motors add up quickly. Most hydraulic failures also give warning signs for days or weeks before they happen, but only if someone is looking.

This guide explains how often each major hydraulic component should be inspected, what to look for at each interval, and how to adjust your schedule to real-world operating conditions.

Why inspection frequency matters?

Hydraulic systems operate at pressures that commonly range from 3,000 to over 6,000 psi. At those pressures, a small weep at a fitting or a slightly scored cylinder rod can turn into a serious failure surprisingly fast. A pinhole leak in a hose can inject oil under the skin, and a failed hose on a boom can drop a load.

Regular inspection delivers three practical benefits:

• Safety: Catching leaks, bulging hoses, and damaged guards protects operators and ground crews.
• Lower repair costs: Replacing a $40 hose or a $15 seal is far cheaper than rebuilding a pump contaminated by a failing hose liner.
• Higher uptime: Planned stops during scheduled maintenance windows cost much less than breakdowns during a project.

The three-tier inspection framework

Rather than inspecting everything at one interval, most fleets use three tiers that match effort to risk.

Tier 1: Daily or pre-shift walk-around

The operator or a technician should spend five to ten minutes on a visual check before the machine starts work. This tier is about spotting obvious problems early. Look for:

• Fresh oil on the ground beneath the machine
• Wet or oily surfaces on hoses, fittings, and cylinder glands
• Hydraulic reservoir level and sight-glass condition
• Damaged, missing, or loose hose guards and clamps
• Scratches, dents, or pitting on exposed cylinder rods
• Unusual noise, slow response, or jerky movement during warm-up

Daily checks do not require tools. Their value is consistency, because a leak that was dry yesterday and wet today is a clear signal.

Tier 2: Detailed inspection every 250 to 500 hours

This is the core preventive maintenance interval for most heavy equipment. It usually coincides with engine service. A technician should:

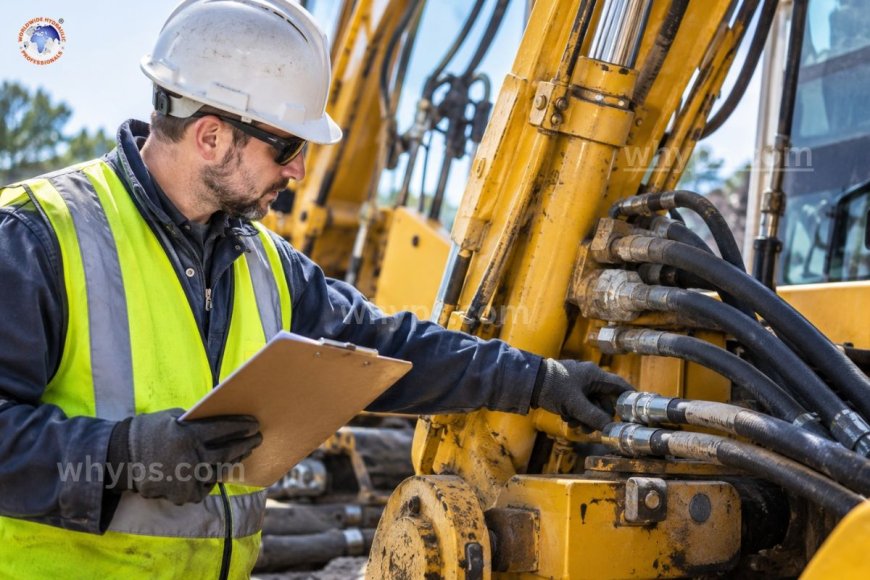

• Inspect every hose for abrasion, cracking, blistering, kinking, and cover damage
• Check fitting torque and look for weeping at threads and flanges
• Examine cylinder rods, wiper seals, and rod seals for wear and leakage
• Check pivot pins and bushings that load the cylinders
• Review filter differential pressure indicators and replace filters as required
• Take an oil sample for analysis
• Clean or replace breather filters
• Check accumulator pre-charge where fitted

Tier 3: Comprehensive inspection every 1,000 to 2,000 hours or annually

Once or twice a year, take a deeper look at system health. This tier includes:

• System pressure tests, including relief valve settings and pump output
• Cylinder drift and internal leakage testing
• Pump and motor case drain flow checks
• Valve spool response and internal leakage evaluation
• Reservoir inspection and cleaning if sludge or varnish is present
• Heat exchanger and cooler inspection for blockages
• Full hose replacement review based on age and condition

Inspection frequency by component

Different components wear at different rates, so a single interval does not suit everything. Here is how to think about each major part.

Hoses and fittings

Hoses are the most common failure point on heavy equipment because they flex, vibrate, and rub against structures all day. Inspect them visually every day and examine them closely every 250 to 500 hours. Many operators also set a service-life limit of roughly five to six years from the manufacturing date, or sooner in severe duty. Replace any hose with exposed reinforcement wire, soft spots, bulges, or persistent leaks.

Hydraulic cylinders

Cylinders take constant mechanical loads and are exposed to dirt, moisture, and impact. Check rods and seals daily, and perform a detailed inspection of rod finish, gland condition, and drift behavior at 250 to 500 hours. Plan for an overhaul or reseal based on condition. Typical triggers include persistent external leakage, measurable drift under load, or scored rod chrome.

Hydraulic pumps and motors

Pumps and motors are expensive and usually fail from contamination, cavitation, or overheating rather than from simple age. Listen for whining or knocking daily. At 500 to 1,000 hours, check case drain flow, since rising drain flow is one of the clearest indicators of internal wear. Pair this with oil analysis to look for wear metals.

Control valves

Valves tend to degrade gradually through spool wear, sticking from varnish, and seal deterioration. Observe actuator response every day, and perform deeper testing for internal leakage and response time during 1,000-hour services. If an implement drifts or responds sluggishly, test the valve sooner.

Filters and hydraulic fluid

Fluid condition drives the life of everything else. Monitor filter indicators daily, change filters at the manufacturer's interval or when the bypass indicator trips, and sample oil every 250 to 500 hours. Oil analysis can reveal particle counts, water content, viscosity changes, and additive depletion long before symptoms appear.

Accumulators

Where accumulators are fitted, check pre-charge pressure at least every six months, or more often in high-cycle applications. Loss of nitrogen charge reduces shock absorption and can stress the rest of the circuit. Only trained personnel should test or service them, because stored energy is dangerous.

Coolers and reservoirs

Check cooler fins and cores for dirt, debris, and damage during every 250-hour service, and clean them as needed. Hydraulic oil that runs consistently above 80°C (176°F) ages much faster. Inspect reservoir breathers, seals, and tank condition at the same time.

When to inspect more often

The intervals above are starting points. Shorten them when any of the following apply:

• Severe duty: Mining, demolition, quarrying, and forestry subject components to heavy shock loads and dirt.
• Extreme temperatures: Very hot climates accelerate oil oxidation, while cold starts stress pumps and hoses.
• Dusty or wet sites: High contamination risk calls for more frequent filter and breather checks.
• Older machines: Components near the end of their expected life deserve closer attention.
• Recent repairs or component changes: Check the system again after the first 50 to 100 hours of operation.
• Past failures: A machine with a history of repeated hose or seal failures needs a root-cause review, not only tighter intervals.

Always treat the equipment manufacturer's service manual as the baseline, and adjust upward in strictness based on your operating conditions.

Building an effective inspection program

Good intervals only work if inspections are done consistently and recorded. A few practices make the difference:

1. Use written checklists. Standardized lists ensure nothing is skipped, whoever performs the check.
2. Record findings and trends. A hose that was dry last month and damp now tells a story that a single inspection cannot.
3. Train operators. Operators spend the most time with the machine and often notice the earliest changes.
4. Invest in condition monitoring. Oil analysis, pressure sensors, temperature monitoring, and telematics alerts can trigger inspections based on actual condition instead of a fixed calendar.
5. Stock critical spares. Hoses, seals, filters, and fittings on the shelf shorten repair time when an inspection finds a problem.
6. Follow safety rules. Depressurize the system, lock out the machine, and never check for leaks with your hands.

There is no single inspection interval that fits every hydraulic component, but a tiered approach works well: look every day, inspect in detail every 250 to 500 hours, and perform a comprehensive evaluation every 1,000 to 2,000 hours or once a year. Hoses, cylinders, and fluid deserve the closest attention, while pumps, motors, and valves benefit from trend-based monitoring. Adjust for your duty cycle and environment, document what you find, and act on early warning signs. A disciplined inspection program is one of the most cost-effective ways to extend the life of heavy equipment and keep jobs on schedule.

How often should hydraulic hoses on heavy equipment be inspected?

Hoses should be checked visually every day and examined closely every 250 to 500 operating hours. Replace any hose showing cracks, bulges, exposed wire, or leaks, and consider replacing hoses at five to six years of age regardless of appearance.

How often should hydraulic oil be tested?

Sample hydraulic oil for laboratory analysis every 250 to 500 hours, or more often in severe duty. Testing reveals contamination, water, viscosity changes, and wear metals before they cause failures.

What are the warning signs that a hydraulic component needs immediate inspection?

Watch for oil leaks, slow or jerky movement, unusual noise, overheating, implement drift, frequent filter clogging, and pressure loss. Any of these should prompt inspection before the machine continues working.

Do hydraulic cylinders need inspection even if they are not leaking?

Yes. Cylinders can develop internal seal bypass, rod damage, or worn bearings without visible external leakage. Drift testing and rod inspection at 250 to 500 hours help catch these problems early.

Should inspection intervals change in harsh operating conditions?

Yes. High dust, heat, moisture, shock loading, and heavy duty cycles all speed up wear and contamination. In these conditions, shorten intervals, sometimes by half, and rely more on condition monitoring.
