Hydraulic Cylinder

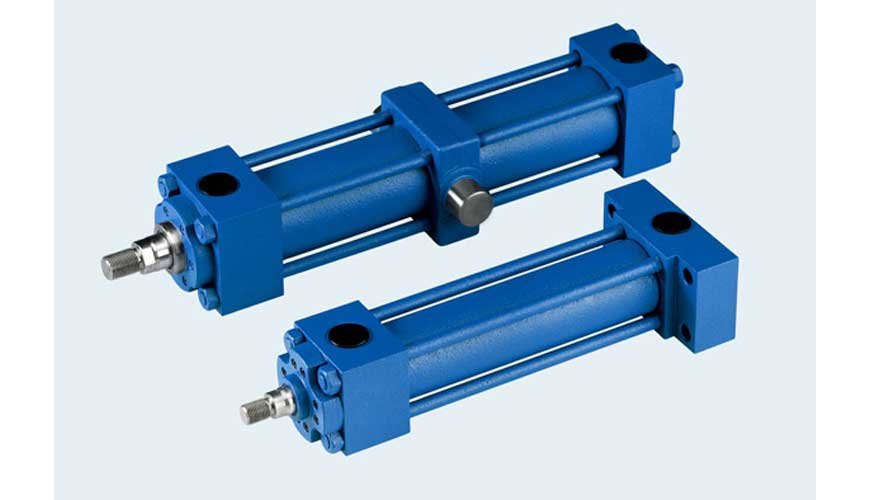

DG Series Double Acting Hydraulic Cylinders
DG Series Cylinders are high-performance double acting hydraulic actuators designed for reciprocating motion in hydraulic systems. They are commonly used across a wide range of applications including:

Vehicles

Engineering machinery

Lifting and conveying equipment

Mining machinery

Other heavy-duty machinery

Optional features include rod end boots and hydraulic locks, depending on specific application requirements.

Technical Specifications

Specification Details Specification Details
Standard or Nonstandard Standard Structure Series Cylinder
Power Type Hydraulic Body Material Steel
Maximum Stroke 0–1200 mm Shaft Diameter 28 mm
Bore Size 50 mm Maximum Working Pressure 16 MPa
Maximum Pushing Force 31.42 kN (3 Tons) Maximum Pulling Force 21.56 kN (2 Tons)
Place of Origin Shanxi, China (Mainland) Model Number DG
Brand Name CJ
