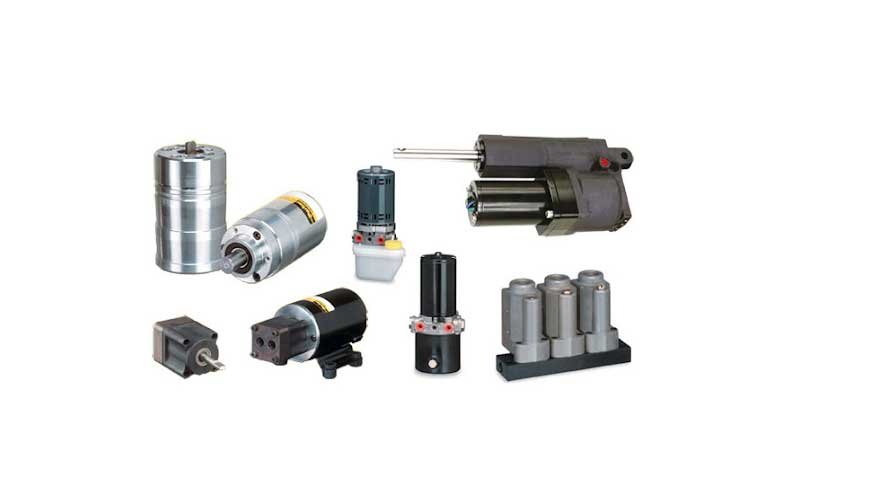

Parker Compact Hydraulic Power Unit - 108 SERIES

The 108 Series compact hydraulic power units are completely self-contained with an AC or DC motor, gear pump, reservoir, internal valving, load hold checks, and relief valves. Designed by Parker for intermittent service, these units come in four standard pump sizes.

The compact hydraulic power packs in this series are available with single- or bi-directional rotation. Single direction units are commonly used to charge accumulators, power uni-directional hydraulic motors and cylinders, provide pilot flow to servo valves, pressurize lube systems, and supply multifunction circuits through external valving. Bi-directional, reversible units operate double-acting cylinders and bi-rotational motors.

Applications include:
Positioning

Recreational

Vehicle leveling

Clamping

Patient handling

Lifting operations

Features:
Pressures up to 241 bar (3500 psi)

Flows from 0.5 to 2.8 lpm (0.14 to 0.75 gpm)

Locking check valves available in all models

Several hydraulic circuits available

Single- or bi-directional rotation

Multiple reservoir sizes
