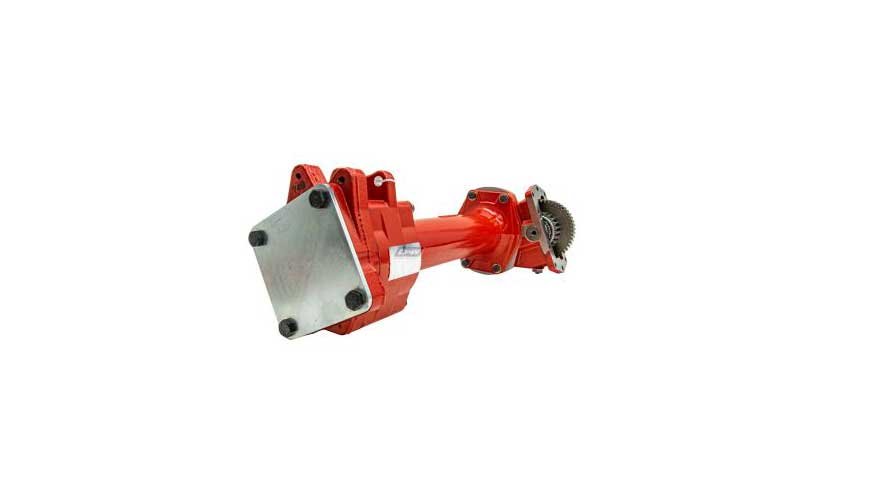

Parker Chelsea 800 Series Powershift

The Chelsea 800 Series Power Take-Off (PTO) exemplifies why Chelsea PTO technology is the best in the business. This 8-Bolt Powershift is a workhorse in the Chelsea PTO line. It features a cast iron housing and heavy-duty ball bearings on the output shaft. The large clutch pack provides a torque rating up to 500 lbs-ft, offering long service life in heavy-duty applications. The output shaft features a 1-1/8" round shaft, 4 shift options, and the Electric Overspeed Control (EOC) option, making this a versatile PTO. Take advantage of over 65 years of Chelsea PTO technology to increase performance and lower costs.

Product Features
Pressure Lubrication standard

Only Single Gear Powershift PTO on the market today

Electric-Over-Hydraulic shifting

Two Year Warranty

Markets
Oil Field Application

Bulk Transporter Trucks

Fire and Rescue

Technical Specifications
Mounting Styles: 8-Bolt

Shift Type: PowerShift (Hydraulic)

Standard Output Shaft Size: 1-1/8" Round with Key

Intermittent Torque Rating (lbs.ft): 250 (Check Application Pages for Actual Torque Ratings)

Intermittent Torque Rating (Nm): 339 (Check Application Pages for Actual Torque Ratings)

Output Shaft Power (HP): 24 at 500 RPM, 48 at 1000 RPM

Output Shaft Power (kW): 18 at 500 RPM, 36 at 1000 RPM

Weight: 38 lbs (17 kg)
