Standard Hydraulic Cylinders

Standard hydraulic cylinders are a critical component in hydraulic systems, used to generate mechanical force and motion in various machinery and industrial applications. They convert hydraulic energy (pressurized fluid) into linear motion and mechanical force. Here’s a detailed overview of standard hydraulic cylinders:

1. Types of Standard Hydraulic Cylinders

Single-Acting Cylinders: Hydraulic pressure is applied in one direction only, with a return mechanism (spring or load) for retraction.
Double-Acting Cylinders: Hydraulic pressure can be applied in both directions, providing controlled extension and retraction.

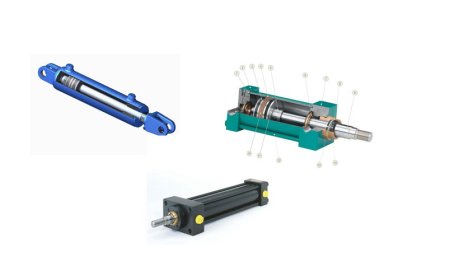

2. Components of Hydraulic Cylinders

Cylinder Barrel: Houses the pressurized fluid and piston.
Piston: Moves within the cylinder barrel to create motion.
Piston Rod: Connects the piston to the external machine or load.
Seals: Prevent fluid leakage and maintain pressure.
End Caps: Close both ends of the cylinder and support the piston rod.

3. Specifications and Dimensions

Bore Size: The internal diameter of the cylinder barrel, determining the force capacity.
Stroke Length: The distance the piston rod can travel.
Rod Diameter: Affects the strength and buckling resistance.
Mounting Styles: Include flange, trunnion, clevis, and others, based on application needs.

4. Applications

Industrial Equipment: Used in presses, manufacturing machines, and automation systems.
Mobile Equipment: Applied in construction, agriculture (tractors, loaders), and forestry machinery.
Marine: Used in ship steering and deck machinery.

5. Materials and Construction

Cylinder Tube: Usually made of steel or aluminum for strength and durability.
Piston Rod: Often chrome-plated steel to resist wear and corrosion.
Seals and Bearings: Made from polymers or elastomers for fluid containment and rod support.

6. Design Standards

Standards such as ISO 6020/2, ISO 6022, and NFPA T3.6.7 define dimensions and performance criteria for standard hydraulic cylinders. These ensure interchangeability and reliability across different manufacturers and applications.

7. Maintenance and Troubleshooting

Common Issues: Include seal wear, rod bending, and fluid leakage.
Preventive Maintenance: Regular inspection, proper lubrication, and use of clean hydraulic fluid.

8. Popular Manufacturers

Roth Hydraulics: Known for a wide range of hydraulic cylinders, including customized solutions.
Parker Hannifin: Offers standard industrial and mobile hydraulic cylinders.
Bosch Rexroth: Provides comprehensive hydraulic cylinder solutions.
Hydraulic cylinders are versatile and integral to various mechanical systems, and selecting the right specifications is crucial for efficient and reliable performance.
