The Unsung Heroes of Motion: Hydraulic Motors in the World of Engineering

The Unsung Heroes of Motion: Hydraulic Motors in the World of Engineering
hydraulic motor

When we think of productive machines, the first thought may go to powerful engines or big gears. However, at the core of many industrial and mobile uses are the unsung heroes of motion; hydraulic motors. These small and very strong multiple-purpose machines are a mechanical engineer’s tool, making rotary mechanical motion possible and simple by converting fluid power to mechanical power with incredible efficiency, and always controlling fluid power.

What is a Hydraulic Motor?

A hydraulic motor is basically the rotary equivalent of a hydraulic cylinder. A cylinder produces a linear motion, while a hydraulic motor transforms the hydraulic energy (pressure and flow) of fluid into rotary motion and torque…for example, when fluid is pushed through this mechanism, it spins a shaft!

How Do They Work Their Magic?

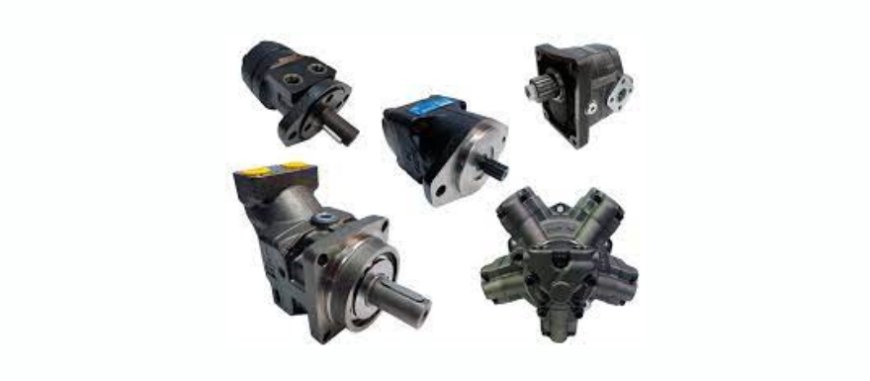

The concept is beautifully straightforward, but their construction is complex. Hydraulic motors use an internal mechanism driven by pressurized hydraulic fluid. The force generates torque to rotate the output shaft. There are different internal systems of doing so, including:

Gear Motors: Two gears in contact, one of which is driven by hydraulic fluid, create the rotation. They are simple, economical, and robust.

Vane Motors: Vane sections on the rotor are pushed by fluid pressure against an eccentric ring, producing torque. Vane motors are smooth, and fairly efficient.

Piston Motors (Axial and Radial): Piston motors are used on the high-power, high-pressure end of the spectrum. Fluid pressure acts on various pistons, which drive a rotating shaft. Axial piston motors are used in hydrostatic transmissions with varying displacements and good control.

Each system has its benefits, and engineers use a specific design to suit the demands for an application based on speed, torque, pressure, and efficiency.

Why Hydraulic Motors Are Essential for Engineering

High Power Density: Likely the most celebrated feature of hydraulic motors, they can provide high power from a surprisingly small and lightweight package. This is important in applications where size and weight matter.

Exceptional Torque and Speed Control: Hydraulic motors can deliver very high starting torque, and maintain excellent torque output over an outstanding range of speeds, near zero RPM to thousands of RPM and with high load. Determining control in motion is especially important.

Rugged & Reliability: Hydraulic motors are rugged, designed to withstand harsh environments dirt and extreme temperatures. They are significantly durable. Rather they are sealed, protecting the internal components.

Fast Reversibility: Many hydraulic motors can reverse travel direction with a simple switch of fluid motion, offering dynamic control for multi-directional motion.

Streamlined Transmissions: In many cases, hydraulic motors can minimize the need for multi-gear complex mechanical gears, minimizing equipment design and reducing maintenance.

Where Can We Find Hydraulic Motors Operating?

Hydraulic motors are utilized in many capacities and most individuals are likely unaware of their presence. They provide muscle for:

Construction Equipment: Driving excavator tracks, turning concrete mixer drums, and operating crane swing functions.

Agricultural Equipment: Powering harvesters, planters, and sprayers.

Industrial Applications: Operating conveyor belts, mixers, machine tools, and plastic injection molders.

Marine and Offshore: Controlling winches, thrusters, and steering on boats and oil platforms.

Material Handling: Moving equipment such as forks, aerial work platforms, and automated guided vehicles (AGVs).

Aerospace: Extending landing gear, flight control surfaces, and many utility systems.

The Future of Hydraulic Motors

Efficiency, automation, and sustainability are all goals industries are working towards, and hydraulic motor technology is always evolving. New materials, greater precision in manufacturing, and advanced control systems are creating smaller, more energy-efficient, and more intelligent hydraulic motors. The development of electrical controls (electro-hydraulics) is allowing for predictive maintenance, allowing for remote operation, and development of complex motion profiles.

Conclusion

Hydraulic motors are not just parts but critical enablers of modern engineering. It allows machines to move, lift, rotate, and push with more power than precision than ever before. Next time you see a piece of heavy machinery cruising through a task with the greatest of ease, take a moment to appreciate the hydraulic motor churning silently, powerfully, underneath, truly the unsung hero defining what is capable in our engineered world.
