1600 RPM 115 VAC FAN MOTOR

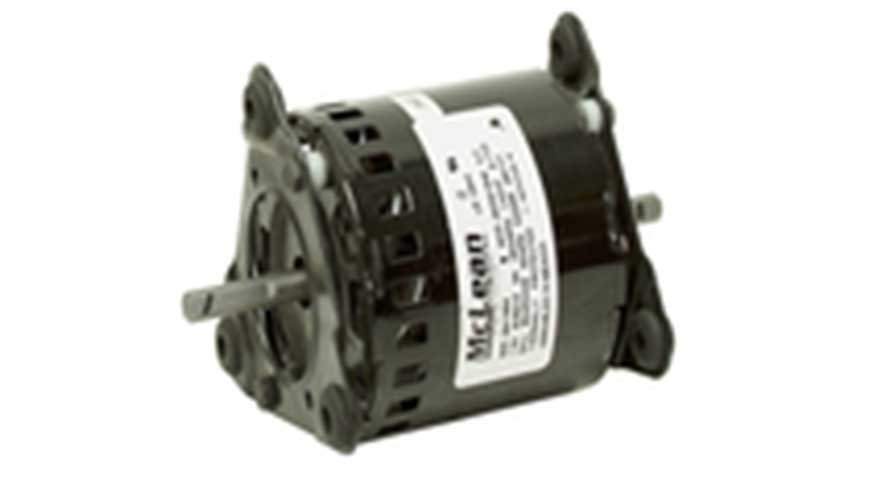

New, MCLEAN ENGINEERING dual shaft fan motor. Model 2JBN016N. Thermally protected. Air over design, sealed ball bearings.    SPECIFICATIONS  Voltage 115 AC  Amperage 0.9 Amps  Speed 1600  Rotation CW -lead end  Phase 1  Enclosure Open  Duty Continuous  Mount 2 studs both ends, 2-7/8" C/C     Adapters to 3/1/8" triangular mount  Shafts 5/16" dia. x 1-3/8" w/flat  Size 3-3/8" dia. x 4" total width  Shpg. 5 lbs.
