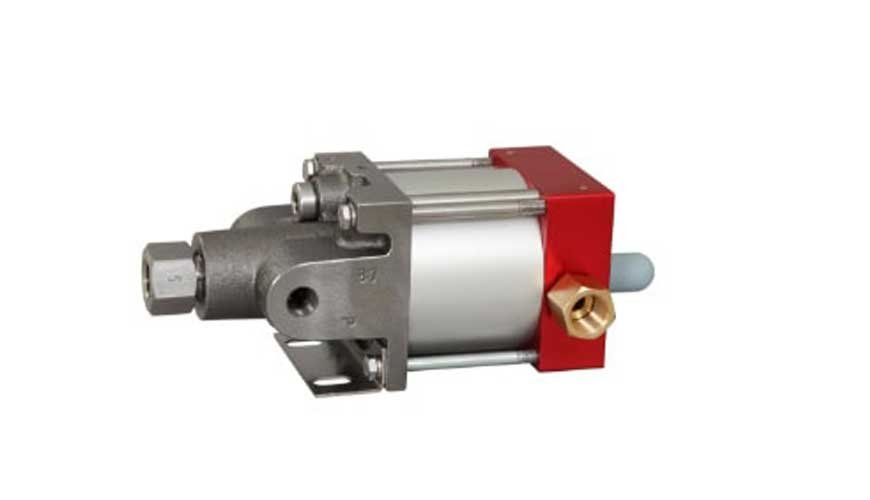

Parker Autoclave's compact (miniature) ACL Series high pressure air driven liquid pump delivers high pressure hydraulic power in a mobile, easy to use package.
Print Product Overview
Compact ACL Series 3” Air-Driven High Pressure Liquid Pumps –  Parker Autoclave Engineers has designed a compact (miniature) high pressure liquid pump that delivers high pressure hydraulic power in a mobile, easy to use package. At only 8 ½” tall the pumps easy-to-understand features permit our customers to spend their time thinking about how to use the pump, not where they are going to place it…  Our pumps are designed to include the most competitive options and require only the basic of choices be made. Features:
Compact, Air Operated Liquid High Pressure Pump
Single-Acting, Single Piston Air Drive/Hand Lever Operated
Air to Pressure Ratio: 1:220
Hardened Stainless Steel Plunge
Air Drive Pressure Range: 15-150 psi (1-10 bar)
Volume Displacement per Stroke:  .04 in³ (.66 cm³)
Maximum Outlet Pressure:  31,900 psi (2200 bar)

   Isolation (distance) chamber to protect air-drive section from high pressure seal leakage is optional
Benefits: High strength stainless steel pump pressure heads specifically designed and engineered for high cycle life.  Extended service check valves with ceramic balls. Sealed, anodized aluminum parts for better protection from harsh environments. Latest lubrication technology provides long, maintenance free seal service life and improves pump efficiency and performance.  Noise reduction features are standard. This attention to detail is what sets Parker Autoclave Engineers products apart from the competition. see more at http://ph.parker.com/us/17554/en/compact-3-air-driven-liquid-pump-acl-series
