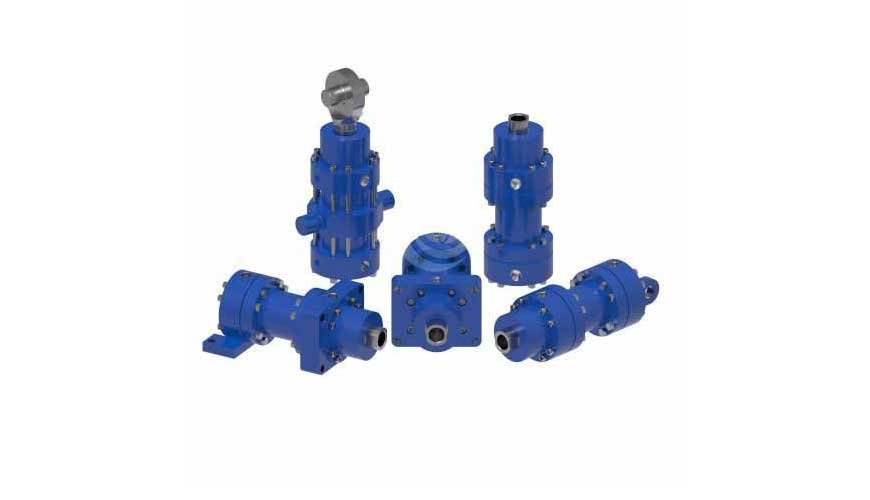

Eaton M Series Mill Duty Cylinders
Eaton M-Series mill duty cylinders are engineered to meet the tough demands of primary metals customers for applications including arc furnaces, slab casters, rolling mills, coating lines, and more. Available in standard bore sizes from 50 mm (2.0 in) to 400 mm (16.0 in) with strokes up to 8 m (300 in)—as well as in custom configurations—these robust cylinders are engineered to survive in extremely demanding environments.

Features

Designs eliminate sizing confusion by including both U.S. and metric

Threaded flange design improves performance and shortens lead times

Heavy duty, high-yield strength steel materials increase durability, including the flange

Bearing design improves performance in demanding applications

Technical Information

Bore sizes from 3 to 30 inches

Stroke lengths up to 24 feet

Hydraulic operating pressures up to 5,000 psi

Pneumatic operating pressures of 250 psi
