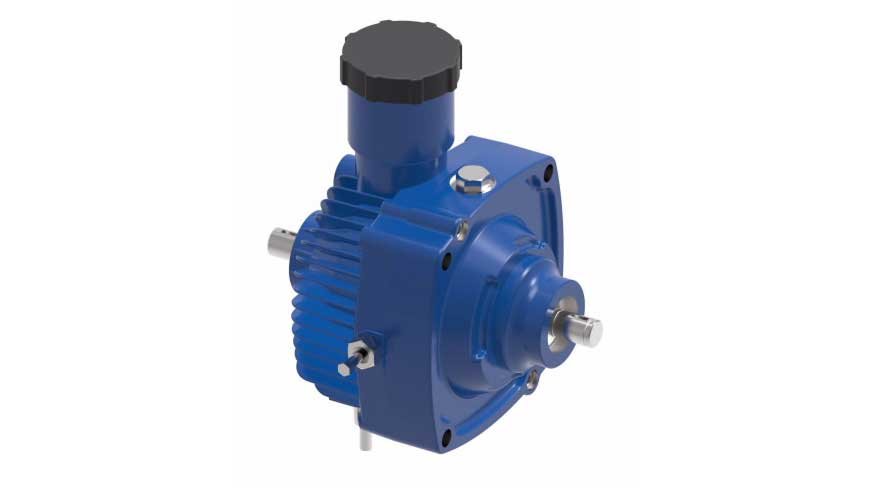

Eaton light-duty hydrostatic transmissions

Eaton light-duty hydrostatic transmissions are total all-in-one packages consisting of a variable displacement radial ball piston hydraulic pump, a fixed displacement radial ball piston hydraulic motor and a full valve system. With integrated aluminum cooling fans and a ball piston design that is less sensitive to overheating, this pump and motor package delivers precise, reliable and incredibly responsive single-lever control, even in harsh applications. The result is simpler design, operation and maintenance for lawn tractors, concrete saws, agricultural sprinklers and more. One lever controls both speed and braking for positive braking action All-in-one design simplifies product by eliminating complex linkages, leaks from external lines, external high pressure lines and separate drive components Available in three models: Model 6 is designed primarily for light-duty applications up to 1.9 kW (2.5 hp) output for continuous operation Model 7 expands on the Model 6 but delivers significant noise level reductions under high torque or load conditions Model 11 covers applications with engines rated at 7.5 – 15 kW (10-20 hp), or electric motors up to 7.5 kW (1 hp), each with max speeds up to 3,600 rpm
