Fairfield Mfg Torque Hub

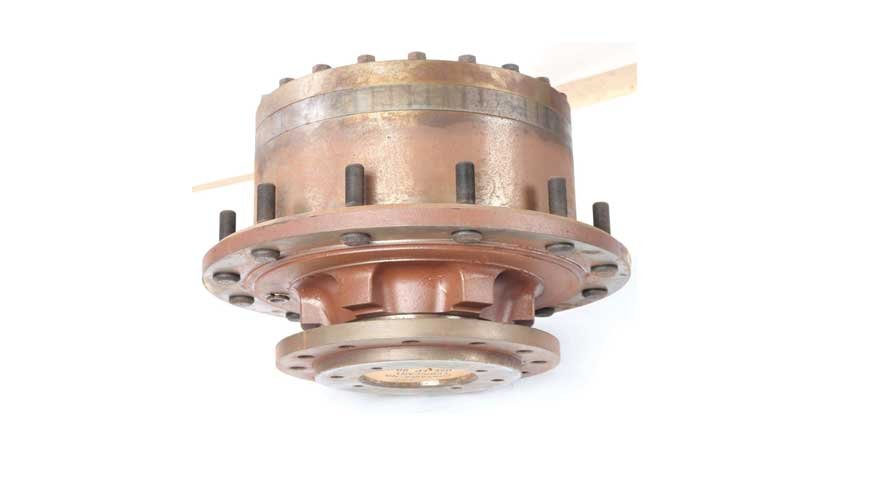

New, FAIRFIELD MFG CO model# W1BFF0318GP planetary wheel drive
Hydraulic motor not included. Built to deliver high torque for industrial machinery, marine applications, and off-road mobile equipment. Wheel hub drive mounts directly to drive wheel.

SPECIFICATIONS
Reduction Ratio: 18.25:1

Torque: 15,000 in-lbs. continuous

Torque: 30,000 in-lbs. maximum

Input Speed: 4,000 RPM maximum

Radial Load: 5,500 lbs.

Motor Mount: Two-bolt SAE B (two orientations possible), Four 1/2"-13 tapped holes on 5-3/4" B.C., 4" pilot

Motor Mount Input Shaft: 7/8"-13 tooth, 16/32 spline

Spindle Mount Diameter: 9-3/4"

Spindle Pilot Diameter: 7"

Spindle Mount Bolt Circle: 8-1/4"

Output Hub Diameter: 11"

Wheel Pilot Diameter: 7-3/4"

Wheel Hub Bolt Circle: 9-1/2"

Wheel Studs: Nine 5/8"-18 studs

Overall Length: 9-7/8"

Shipping Weight: 97 lbs.
