DeviceNet tutorial software with DeviceNet PDF lab manual
Use this DeviceNet tutorial software with the included DeviceNet PDF manual to learn about DeviceNet cabling, industrial device connectivity, and automation networking. The DeviceNet protocol is a leading example of an Industrial Networking Protocol running over a Controller Area Network (CAN) media layer.

Many users recognize this DeviceNet training software as Allen Bradley DeviceNet, though it also simulates Cutler Hammer Automation’s NetView software and covers Explicit Messaging. The training features audio narration and begins with “What is DeviceNet”, concluding with a DeviceNet troubleshooting section.

This DeviceNet Tutorial Training (DNTrainer) includes:

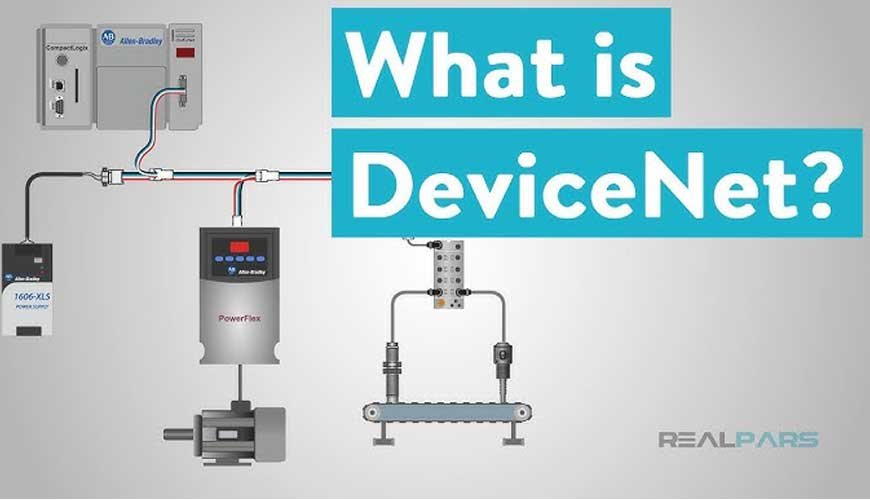

What is DeviceNet

DeviceNet Cable & Component Identification

Physical Media

Power Supplies

DeviceNet Cable and Wiring

Grounding

DeviceNet Troubleshooting

Tips & Tricks

Glossary

DeviceNet PDF Laboratory Manual

Interactive Quiz

Additional Features:
Final Exam

PDF Laboratory Manual

Password-Protected Student Log File

Ability to Print Certificate of Completion

Ability to Print Test Responses

This interactive DeviceNet tutorial includes visual exercises. For example, after studying a DeviceNet system layout, you’ll complete a drag-and-drop exercise to correctly position network components and nodes. The course wraps up with troubleshooting techniques and commissioning tips and tricks to ensure network success.
