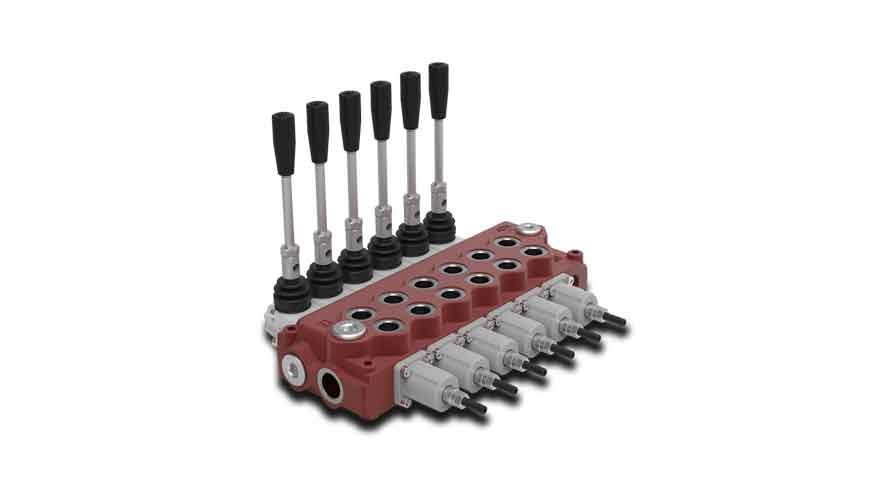

Monoblock Valves

Built to fit a wide range of applications, tough cast-iron Eaton monoblock valves are the perfect customizable solutions for sweepers, scrubbers, lift trucks and more. Available in one-, two- and three-spool configurations, they include optional adjustable relief valves, pilot-operated work port checks, handles and detents to ensure maximum functionality for a variety of requirements. Cast-iron bodies ensure solid construction and durability Cored internal passages and open-center parallel circuit design Body bored for pressure beyond and plugged Adjustable pin type relief valve is factory set at 138 bar (2,000 psi) Precision ground induction-hardened spools with chrome plating on exposed ends 4-way – 3 position spools, spring centered to neutral 3/4-16 SAE inlet and return ports – models 30920/30930 7/8-14 SAE inlet and return ports – model 30540 9/16-18 SAE work ports – models 30920/30930 3/4-16 SAE work ports – model 30540
