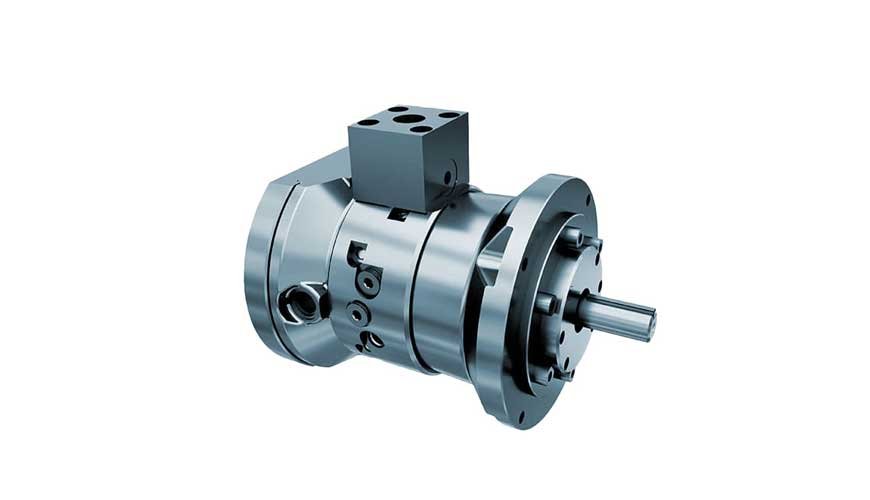

Oil Gear PBFA-02 Pressure Pump

Oil Gear PBFA-02 Pressure Pump

Oil Gear PBFA-02 Pressure Pump

Oil Gear PBFA-02 Pressure Pump

Oilgear makes some of the longest-lasting, most reliable pumps in the world. The PFBA pump is from the Towler high-pressure pump product line that specializes in extreme reliability when pumping low-viscosity fluids, such as water-based fluids.

The PFBA pump has proved itself successful for use with high water content and low-viscosity fluids. These axial piston pumps are used in a wide variety of applications, including die casting and injection molding machines, high pressure test rigs, civil and marine projects, intensifier systems, extrusion presses, forging presses and high pressure forced lubrication systems for long turbines as well as metal forming machines. All Oilgear pumps are designed to thrive on low-viscosity fluids, such as high water content and fire resistant fluids, like Skydrol™, Stack Magic™, Erifon™, and 98/2.

1. Six hardened steel pistons located in a stationary body are not subject to centrifugal force, thus reducing load and wear
The piston load is caused by pumping action only, therefore higher operating speeds are possible

2. Hydrostatically balanced steel piston shoes
Reduces piston shoe load and provides lubrication for increased life

Facilitates a high degree of contamination wear resistance

Permits higher pressure operation with long life

Allows operation with low viscosity or other special fluids including 95/5

3. Single Swash Plate
Hardened steel for hard on hard wear resistance

4. Inlet Valve
Inlet and delivery check valves are positive seated for high volumetric efficiency

Rugged, high response, lightweight poppet construction assures long life

Max Continuous Pressure: 701 Bar – 1000 Bar
Max Speed: Below 2000 RPM
Displacement: Below 50 cc/rev
Fluid Type: Hydraulic, Low-Lubricity
Pump Series: PFBA
