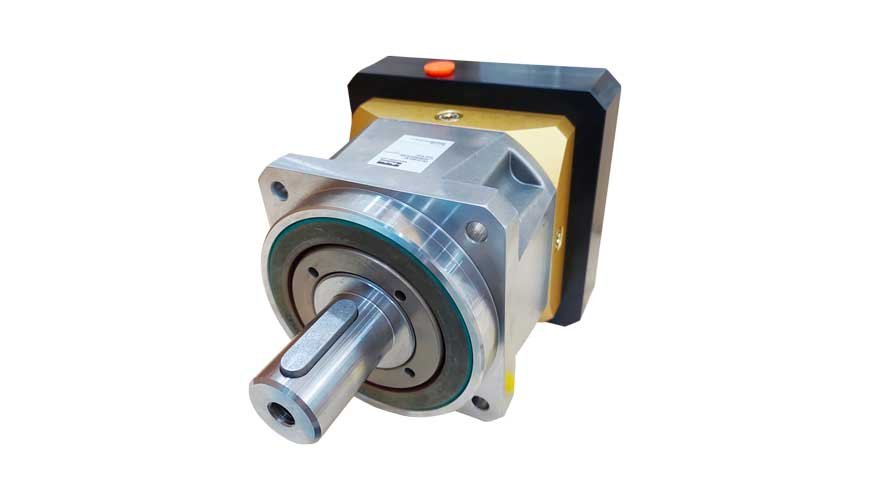

The Stealth PS-series is Parker's highest performance inline servo gearhead, incorporating the latest technological enhancements. Helical planetary gears provide greater tooth contact and face width than spur gears, resulting in higher loads, smoother tooth engagement, quieter operation, and very low backlash. The use of an integral ring gear, cut directly into the gearhead housing, further increases torsional stiffness and allows PS-series gearheads to use larger gears and bearings, leading to greater torque output from a minimum package size. Dual angular contact bearings provide higher radial and axial load capacities while maintaining high input speeds. A full complement of needle bearings supports the planet gears, allowing for increased life and extended warranties.

Features:
High Precision, Inline Helical Planetary Gearhead

Frame Sizes: 60 - 220 mm

Ratio Options: 3:1 - 100:1

High Torque / Low Backlash: helical planetary gear geometry

Backlash: to < 4 arc-minutes (standard) / < 3 arc-minutes (optional)

Efficiency: up to 97%

Quiet Operation: less than 68 dB

High Input Speeds: up to 6,000 RPM

Higher Radial Load Capacity: widely spaced angular contact output bearings

High Stiffness: Integral ring gear and rigid sun gear

Helicrown: Parker's proprietary gear tooth geometry ensures quieter operation and higher loads

Higher Gear Wear Resistance: plasma nitriding heat treatment

Increased Service Life: full complement of planet needle bearings

Universal Mounting Kits: quicker deliveries and easier mounting

IP65 protection

Technical Specifications
Performance: High Precision

Configuration: Inline

Gear Geometry: Helical Planetary

Frame Sizes: 60mm | 90mm | 115mm | 142mm | 180mm | 220mm

Standard Backlash (Arc-min): < 4 to < 8

Low Backlash (Arc-min): < 3 to < 6

Nominal Torque (Nm): 27 - 1808

Nominal Torque (in-lbs): 240 - 16091

Radial Load (N): 1650 - 38000

Radial Load (lbs): 370 - 8636

Ratio: 3, 4, 5, 7, 10, 15, 20, 25, 30, 40, 50, 70, 100:1

Maximum Input Speed (RPM): 6000

Degree of Protection (IP): IP65

Efficiency at Nominal Torque (%): 94 - 97

Custom Versions Available: Yes
