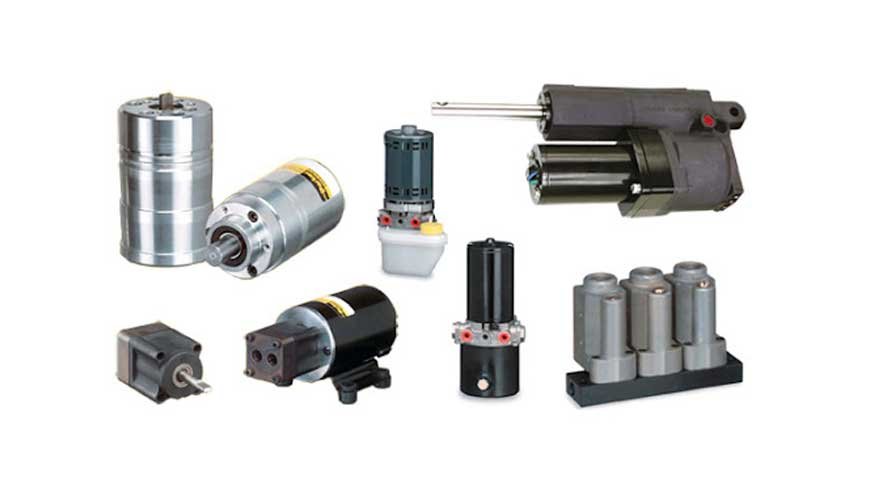

Parker Hydraulic Power Unit 108 Series

Designed for intermittent service, the 108 Series provides fully self-contained power units that provide reliability and efficiency. Its versatile compact hydraulic power units are engineered to let you put the power where you need it. Featuring an AC or DC motor, gear pump, reservoir, internal valving, load hold checks, and relief valves, the 108 Series delivers an efficient, completely self-contained power solution in a compact footprint. Designed by Parker for intermittent service, these units come in four standard pump sizes.

The Powerpacks in this series are available with single- or bi-directional rotation. Single direction units are commonly used to charge accumulators, power uni-directional hydraulic motors and cylinders, provide pilot flow to servo valves, pressurize lube systems, and supply multifunction circuits through external valving. Bi-directional, reversible units operate double-acting cylinders and bi-rotational motors.

Features/Benefits:

Design Flexibility

Bi-directional, reversible units

Vertical and horizontal mounting

Double-acting cylinders with two-way motors

Multiple reservoir sizes

Technical Specifications

MINIMUM OPENING PRESSURE (BAR): 241 (3500 PSI)

MAXIMUM FLOW RATE (LPM): 2.8

MAXIMUM FLOW RATE (GPM): 0.75

TANK CAPACITY: 0.34 - 5.3 L (0.09 - 1.5 gallons)

MATERIAL: Plastic, Aluminum, Steel

MOTOR TYPE: 12 VDC, 24 VDC, 36 VDC, 115 VAC, 230 VAC

MOTOR OUTPUT: 0.25 kW (0.33 HP)

PUMP SIZE (CC/REV): 0.16, 0.31, 0.41, 0.52

PUMP SIZE (CI/REV): 0.010, 0.019, 0.025, 0.032

FLOW DIRECTION: Variety of circuits including reversible locking
