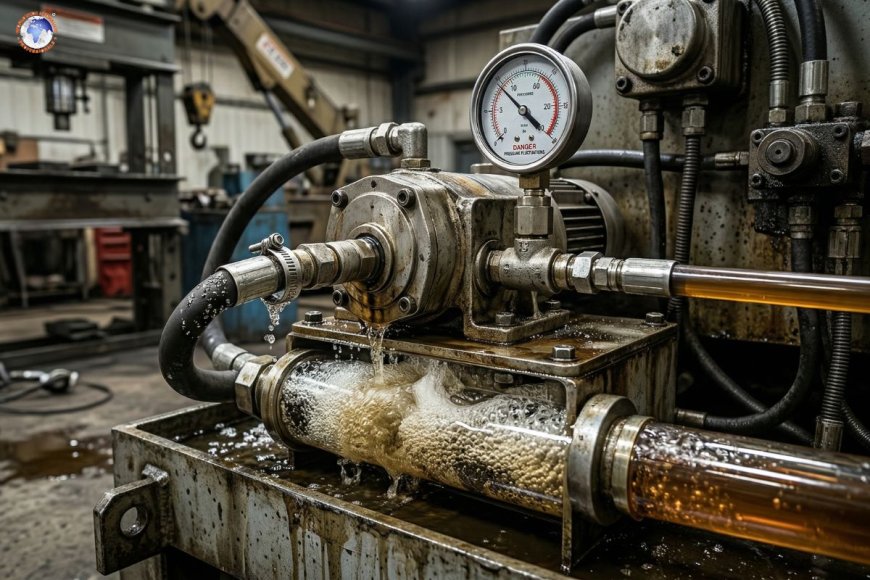

Why is air in a hydraulic system dangerous?

Hydraulic systems are engineered to function efficiently, with precision and dependability. For instance, in construction equipment, agricultural tractors, machinery for manufacturing, or industrial presses, these systems are based on one fundamental premise: using incompressible fluids for power transmission. When air is introduced into the system of hydraulics, this principle is affected, resulting in several serious problems with performance and the possibility of damage to equipment.

In this post, we'll examine the reasons why air in a hydraulic system is harmful and how it gets into the system, the issues it creates, and the best way to eliminate and prevent it in a timely manner.

Understanding the basics of hydraulic systems

Before you dive into the dangers of the air, it's essential to know the way hydraulic systems function. Fluids are used in hydraulic systems, which are typically oil, to transmit force from one place to another. The main benefit of hydraulic fluid is that it's almost incompressible, which means it doesn't significantly alter the volume under pressure.

This property permits:

• Precise movement control
• Effective power transmission
• Consistent system performance

Air, on the other hand, is extremely compressible. If it enters the hydraulic machine, it can disrupt this fundamental benefit.

How does air enter a hydraulic system?

The air that enters the hydraulic circuit is of two primary types:

1. Entrained air

This is comprised of tiny air bubbles that are dispersed throughout the hydraulic fluid. It is often the result of:

• Low levels of fluids
• Poor return line design
• The reservoir is experiencing turbulent conditions.
• High-speed fluid movement

2. Free air

These are air pockets that have been trapped inside the system, which is typically due to:

• Improper bleeding after maintenance
• In suction lines, leaks
• Seals or fittings that are loose
• Cracked hoses

Both kinds of air can cause problems of a serious nature, but free air is typically more obvious.

Why is air dangerous in hydraulic systems?

1. Loss of system efficiency

Hydraulic systems are based on the direct transmission of energy via fluid. If air is present, it expands when pressure is applied, taking in some energy instead of transferring it.

This is the result:

• Reduction in force output
• Sluggish system response
• Energy consumption is rising.

The system must, in essence, work harder to attain the same outcomes.

2. Spongy or erratic operation

The most obvious indicators of the presence of air in a hydraulic device can be seen in "spongy" behavior. Since air expands and compresses and expands, it creates inconsistent movement of actuators, such as motors and cylinders.

Operators can be affected by:

• Uneven or jerky motion
• Responses delayed
• It is difficult to maintain the exactness of control

In the case of applications that require precision, such as machinery for lifting, CNCs could be a risk in particular.

3. Increased heat generation

In the event that air is compressed, then decompressed again inside the structure, it produces heat. This can lead to:

• Temperatures of the fluids in the elevated region
• Oils with lower lubrication properties
• Rapidly degrading fluids

Overheating can cause damage to seals, hoses, and other components, leading to system breakdown.

4. Cavitation and aeration damage

The presence of air in hydraulic systems could result in two related, but distinct issues: cavitation and air aeration.

Cavitation

Cavitation happens when vapor bubbles develop in low-pressure areas and then break up quickly when they travel into high-pressure zones. This could cause:

• Eroding and pitting of surfaces made of metal
• The valves and pumps are damaged.
• Banging noises or loud knocking

Aeration

Aeration is the term used to describe that there are air bubbles within the fluid. It could result in:

• The foaming process of hydraulic oil
• Poor lubrication
• The increased Oxidation

Both of these conditions drastically decrease the life expectancy of hydraulic parts.

5. Noise and vibration

The presence of air in the system typically results in strange noises and vibrations. They could be:

• Sounds of banging or knocking
• The pump is whirring
• Vibration in pipes that is excessively high, and other components

These symptoms do not simply signal a problem, but they can be a cause for the wear of mechanical parts and the loss of the fittings.

6. Oxidation and fluid degradation

The oxygen in the air reacts with hydraulic oil as time passes. This can lead to:

• The fluid is oxidized
• The formation of varnish and sludge
• Oil performance is decreased

Degraded oils lose their ability to protect and lubricate components, thereby increasing the chance of failure and wear.

7. Damage to hydraulic pumps

Pumps that use hydraulics are more prone to air-related problems. Air can trigger:

• The loss of the prime (especially in vane and gear pumps)
• More wear from poor oil lubrication
• Cavitation-related internal damage

In extreme instances, the pump could fail, resulting in expensive repairs and interruptions.

8. Reduced component lifespan

All components of hydraulics--seals, valves, as well as hoses, cylinders, and hoses -- are in the hands of air. The effects of oxidation, heat, and irregular operation result in:

• More rapid wear and tear
• Maintenance requirements that are frequently repeated
• Unexpected system failures

This is not just a way to increase the operational cost, but it also lowers productivity.

Common signs of air in a hydraulic system

Recognizing signs of trouble early can prevent serious damage. Watch out for

• Fluid hydraulic with milky or foamy characteristics
• Unusual sound emanating from the pump
• Inconsistent actuator movement or jerky
• The temperature of the system has increased
• Poor or slow operation
• Air bubbles are visible in the reservoir.

If any of the signs are evident, it is imperative to take immediate action.

How to prevent air entry?

Prevention is always more effective than treatment. Here are a few best practices to prevent air from entering your hydraulic system

1. Maintain proper fluid levels

Insufficient oil levels could let air into the system. Be sure that the reservoir is filled to the level recommended.

2. Check for leaks

Check hoses, fittings, and seals frequently. Small leaks in the suction side may cause air to enter the system.

3. Use proper reservoir design

A properly designed reservoir allows air bubbles and air to break away from the fluid prior to it being recirculated.

4. Avoid turbulence

Make sure return lines are placed below the fluid level to avoid air mixing.

5. Tighten connections

Leaps in fittings could allow air to get in even under conditions of a vacuum.

How do you remove air from a hydraulic system?

If air has already gotten into the air system, then it needs to be removed as quickly as possible. Methods used to remove air include:

1. Bleeding the system

A lot of hydraulic systems come with bleeding valves that permit air trapped to exit. This can be done in the initial setup or maintenance phase.

2. Running the system at low pressure

The system operating at a low pressure may aid in the rise of air bubbles to the reservoir, from which they will be able to be released.

3. Cycling actuators

The repeated extending and retracting of cylinders may assist in pushing air out of the system.

4. Checking and fixing leaks

Remove the air source from the entry before trying to remove it.

Real-world impact of air in hydraulic systems

In the fields of agriculture, construction, and manufacturing, hydraulic systems are crucial to the daily operation. Air pollution can result in:

• Equipment downtime
• Productivity is reduced
• The costs of maintenance have increased
• Safety risks for workers

For instance, in lifting equipment, unstable movement due to air could result in unstable loads, which pose serious dangers to safety.

The presence of air in a hydraulic system is not just an issue of minor issue. It's an extremely serious issue that can affect performance, cause damage to components, and result in costly failures. Since hydraulic systems are reliant on the incompressibility of fluids, that is why even small quantities of air could have serious effects.

Understanding how air enters the system, knowing the indications of danger, and implementing preventive measures, you will make sure that your hydraulic system is operating effectively and efficiently. Regular maintenance, a well-designed system design, and timely troubleshooting are essential to keep the air out and ensure optimal performance.
