Continental Hydraulics - Axial Piston Pumps

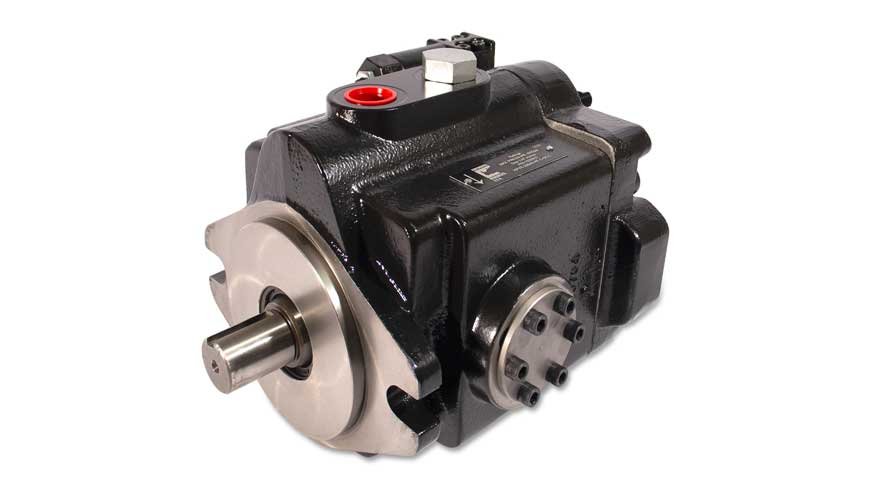

Continental Hydraulic - LPV Axial Piston Pumps
The LPV series of pumps, are variable displacement axial piston pumps with variable swash block, suitable for applications with open loop circuits and intermediate pressures. Available in 5 nominal displacements of  0.488 / 0.976 / 1.342 / 2.196 / 2.807 inch³/rev. These pressure compensated pumps automatically adjust the output flow rate to maintain the set pressure. The maximum output flow can be limited via maximum volume adjustment screw. These Pressure Compensated Piston Pumps are the perfect choice when reliable, fast and quiet control is required. All of the Control Compensator options are interchangeable on all pump sizes.Available with four different types of control compensator options designed to meet your application requirements. This very flexible Control Compensator design allows the LPV pump to be quickly changed as your circuit requirement demand.
Variable Volume
Operating Pressure 3000 PSI (210 bar)
Flow at 1800 RPM 3.8 / 7.9 / 10.6 / 17.1 / 21.9 GPM
Displacements 0.488 / 0.976 / 1.342 / 2.196 / 2.807 inch
