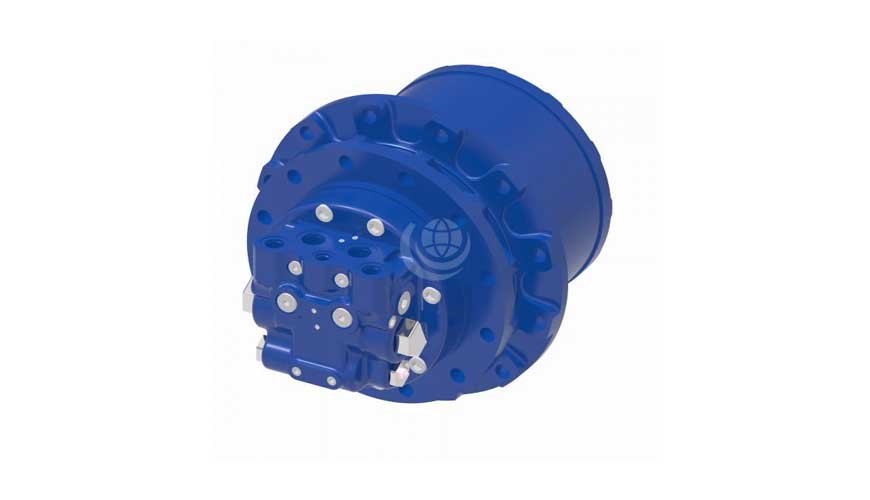

EATON JMV Track Drive Motor

EATON JMV Track Drive Motor
The compatible and innovative design of the JMV Track Drive motor provides lower power losses, increased mechanical and volumetric efficiency, and smoother acceleration and deceleration in a wide variety of machine applications. Common applications include excavator and mini excavator, crawler crane, winch, combine harvester, windrow turning, rotary drilling, horizontal directional drilling, paver, asphalt milling, and special crawler vehicle.

Product Features

Higher mechanical and volumetric efficiency helps reduce power loss

Improved design for higher start up torque and overall efficiency

Optimum design ensures smooth start/accelerate and decelerate/stop

Compact design with high power density

Auto-shift from high-speed low torque to low-speed high torque at high travelling resistance

High performance and reliability, high market acceptance with over half million units in the field

Compatible fit for most popular installation requirements in the market

Technical Information
ME Series

Integrated gearbox with 2-speed Axial Piston Motor

Rated pressure up to 365 bar

Displacement: 16cc ~ 274cc

Suitable for 1.5 ton ~ 50 ton mobile applications

Integrated Relief and Counterbalance valves

Integrated fail-safe mechanical Parking Brake
