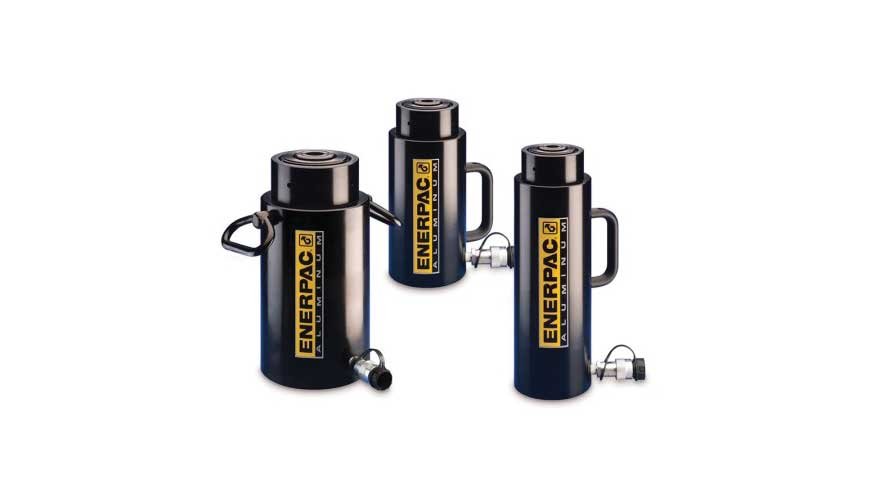

Enerpac RAC Series Aluminum Cylinders

Enerpac RAC Series Aluminum Cylinders

Enerpac RAC Series Aluminum Cylinders

Enerpac RAC Series Aluminum Cylinders
The RAC-Series single-acting aluminum cylinders offer the solution to any number of lifting and/or pushing applications. The lightweight design provides maximum portability. The RAC-Series aluminum cylinders include handles and the CR-400 coupler and dust cap. RAC Series is designed to prevent the metal to metal friction by the implementation of composite bearings. This increases cylinder life and an additional 10% resistance to side loads. Enerpac aluminum cylinder that prevents load-induced damage is the steel base plate and saddle.
Hard coat finish on all surfaces resists damage and extends cylinder life
Handles included on all  aluminum cylinder models
Steel baseplate and saddle for protection against load- induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
High-strength return spring for rapid cylinder retraction
CR-400 coupler and dustcap included on all models
All aluminum cylinders meet ASME B-30.1 and ISO 10100 standards

RAC-Series
Capacity : 20-150 tons
Stroke : 1.97-7.87 inch
Max. pressure : 10,000 psi
ASME : b-30
ISO : 10100
