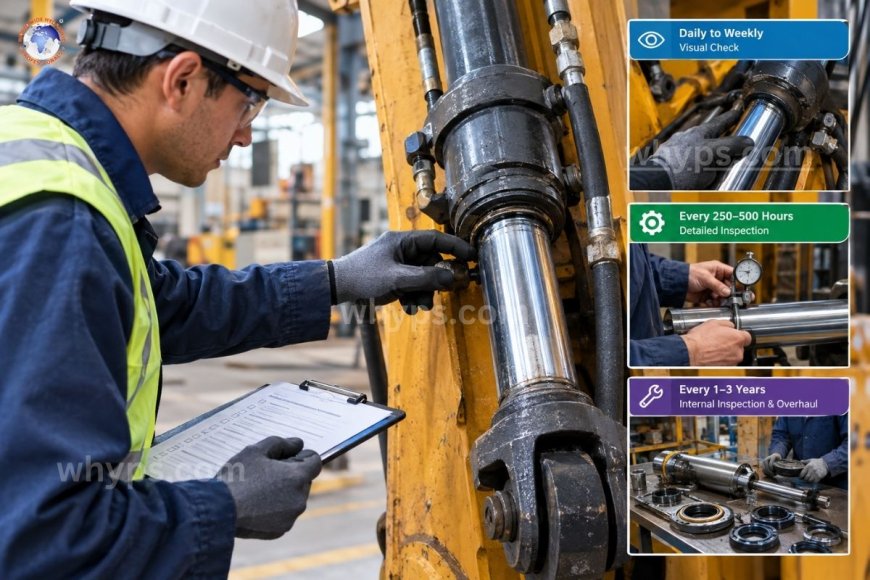

How often should hydraulic cylinders be inspected?

Most hydraulic cylinders should be visually inspected during every routine equipment check (daily to weekly, depending on duty cycle), given a detailed inspection every 250–500 operating hours or at scheduled preventive maintenance intervals, and fully disassembled and inspected internally every 1–3 years or after a major failure, contamination event, or extended storage period—with severe-duty, high-cycle, or safety-critical applications inspected more frequently than light-duty ones. There's no single number that fits every cylinder in every application, because inspection frequency is really a function of duty cycle, load severity, environmental exposure, and the consequences of unexpected failure. A mobile cylinder on a backhoe working in construction dust faces different risks than a stationary press cylinder running in a climate-controlled plant. This guide breaks down how to build an inspection schedule that matches your actual operating conditions rather than a generic calendar reminder.

Why isn't inspection frequency one-size-fits-all?

A cylinder's wear rate is driven by cycle count, load magnitude, side-loading, contamination exposure, and temperature swings—not by the calendar alone. Two identical cylinders can have very different inspection needs if one runs continuously in an outdoor quarry and the other runs intermittently indoors. This is why most equipment manufacturers and reliability programs define inspection intervals in terms of operating hours or cycles, then layer calendar-based checks on top for cylinders that sit idle for long stretches.

Building a sound schedule starts with categorizing cylinders by risk and duty, then assigning inspection depth and frequency to match.

Tier 1: Daily to weekly visual checks

Every hydraulic cylinder in active service benefits from a quick visual check as part of routine equipment walk-arounds. This doesn't require special tools or downtime—it's an operator-level habit that catches problems before they escalate.

What to look for

• External leaks at the rod seal, cylinder ports, and weld seams
• Rod surface condition—scoring, pitting, corrosion, or visible bending
• Mounting hardware—loose pins, worn bushings, or clevis wear
• Abnormal noise or movement during extension and retraction
• Fluid film or dust rings on the rod, which can indicate a failing wiper seal

Operators running equipment daily are often the first to notice subtle changes—a slight drift in cylinder speed, a new drip mark on the floor, or a faint whine during actuation. Training operators to flag these observations turns every shift into an informal inspection.

Tier 2: Scheduled detailed inspections (every 250–500 hours)

Beyond the daily glance, cylinders warrant a more structured inspection tied to operating hours, typically aligned with broader preventive maintenance intervals for the machine or hydraulic power unit.

What a detailed inspection covers

• Rod runout and straightness using a dial indicator, especially after any impact or side-load event
• Cushion function—verifying smooth deceleration at the end of the stroke rather than a hard bottom-out
• Seal condition by monitoring leak rate trends rather than a single measurement
• Mounting alignment to rule out side-loading that accelerates rod seal and bushing wear
• Port and fitting torque, since vibration can loosen connections over time
• Fluid cleanliness at the cylinder, since contaminated fluid accelerates internal wear on the piston seal and bearing bands

This tier is where most preventable failures get caught. A rod with early-stage scoring or a cushion that's starting to stick will show up here long before it causes a catastrophic seal blowout.

Tier 3: Internal inspection and overhaul (every 1–3 years or by condition)

Full disassembly lets you inspect components that aren't visible externally: piston seals, wear bands, tube bore condition, and internal port passages. Most facilities schedule this tier based on a combination of elapsed time, accumulated hours, and condition indicators rather than a fixed calendar date alone.

Triggers that should prompt an internal inspection regardless of schedule

• A sudden change in cylinder speed or force output
• Persistent internal leakage (drift under load) even after external seal replacement
• Any history of contamination ingress, such as a torn wiper seal left unaddressed
• Cylinders returning from extended storage, particularly if seals may have dried out or taken a compression set
• After any incident involving overpressure, impact, or side-loading beyond design limits

What internal inspection reveals

• Boring scoring or out-of-round wear that a surface hone might resolve, or that might require re-sleeving
• Piston seal and wear band condition beyond what external leak monitoring can show
• Rod bearing wear that affects alignment and accelerates future seal wear
• Internal corrosion or varnish buildup from fluid degradation

Adjusting frequency by application severity

Inspection intervals should shift based on how hard and how harshly a cylinder works.

Severe-duty applications (more frequent inspection)

• Mobile and off-highway equipment exposed to dust, mud, and vibration
• Mining, forestry, and demolition equipment with high shock loading
• Press and stamping applications with high cycle counts and precise force requirements
• Marine and offshore equipment exposed to salt air and moisture

Moderate-duty applications (standard interval)

• General industrial machinery in controlled environments
• Material handling equipment with predictable, repetitive cycles

Light-duty or standby applications (extended interval, but with storage checks)

• Cylinders in backup or emergency systems that see infrequent actuation
• Seasonal equipment stored for months at a time

For standby cylinders, the risk isn't wear from cycling—it's seal degradation from prolonged static compression, temperature swings during storage, and potential corrosion on exposed rod surfaces. These benefit from periodic exercise cycles even when not in active use, along with a visual check before returning to service.

Building the inspection program

A practical program typically layers three things together: operator-level daily visual checks, technician-level scheduled inspections tied to operating hours, and condition-based triggers that override the calendar when something looks wrong. Tracking leak rates, rod condition, and cushion performance over time—rather than treating each inspection as a pass/fail snapshot—makes it much easier to catch a slow trend before it becomes a failure. Pairing cylinder inspection with fluid cleanliness monitoring and filter maintenance also closes the loop, since contaminated fluid is one of the fastest ways to shorten a cylinder's service life regardless of how often it's visually checked.

How often should hydraulic cylinder seals be checked for leaks?

External seals should be visually checked during daily equipment walk-arounds, with a more detailed leak-rate assessment at scheduled maintenance intervals, typically every 250–500 operating hours.

Does a cylinder that sits idle still need regular inspection?

Yes. Idle or standby cylinders should be visually inspected and exercised periodically, since static seal compression, temperature cycling, and rod corrosion can degrade a cylinder even without active use.

What's the difference between a visual inspection and a full internal inspection?

A visual inspection covers external leaks, rod condition, and mounting hardware without disassembly, while a full internal inspection disassembles the cylinder to examine the piston seals, wear bands, and bore condition.

Can inspection frequency be based on operating hours instead of a calendar schedule?

Yes, and hours-based scheduling is generally more accurate than calendar-based scheduling alone, since wear correlates more closely with cycle count and load than with elapsed time.

What conditions should trigger an unscheduled cylinder inspection?

Sudden changes in speed or force, persistent internal leakage, a known contamination event, return from extended storage, or any overpressure or impact incident should all trigger an inspection outside the normal schedule.
