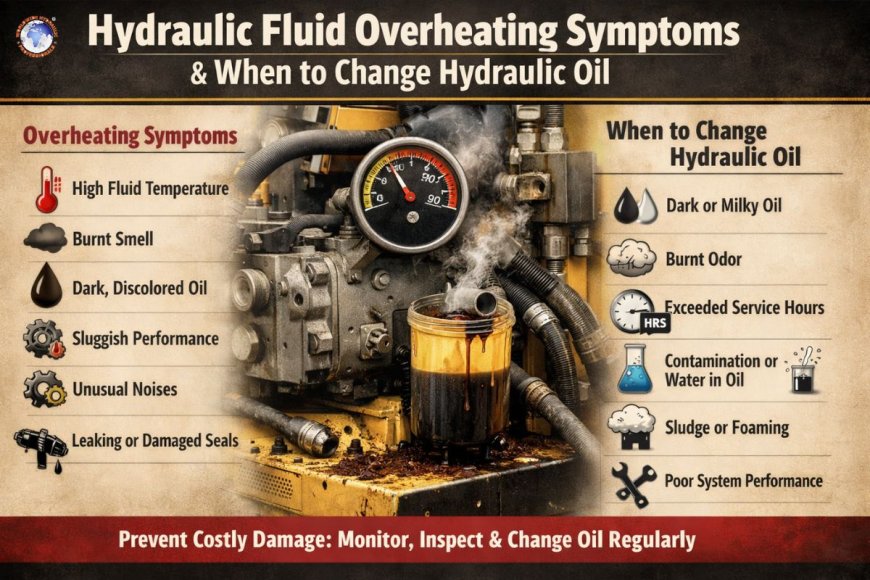

Hydraulic fluid overheating symptoms,when to change hydraulic oil

Hydraulic systems form the basis of many construction, industrial, agricultural, manufacturing, and operations. From excavators to tractors, molds, presses, and machines for injection, they rely on hydraulic fluids to transfer power effectively. But among the more frequent but unaddressed issues with hydraulic systems is overheating of the fluid.

Overheating can not only affect system performance, but it can also cause serious damage to components and result in expensive downtime. Recognizing the signs of fluid overheating and understanding when you should change the hydraulic oil is a crucial step in keeping the system's performance and durability.

Why does hydraulic fluid temperature matter?

Hydraulic fluid is able to perform several essential tasks: it transfers electricity, helps lubricate moving components, disperses heat, and shields the components from rust. For the best performance, hydraulic oil should perform within a specified temperature range, which is typically between 40°C and 60°C.

If the temperature of the fluid exceeds the range of this, the properties start to degrade. Viscosity declines, oxidation speeds up, and the fluid ceases to be able to lubricate and safeguard the system components. In the event of prolonged overheating, it can cause system failure.

Common causes of hydraulic fluid overheating

Before getting into the issues, it's essential to understand the causes of overheating in the first place:

• An overloaded system, operating above design limits, can increase heat production
• Performance of the cooling system is poor (clogged coolers, inadequate fans
• Low fluid levels - Reduced heat dissipation capacity
• Oil that has been contaminated. Dirt and other particles can increase friction
• Incorrectly calculating the viscosity of oil. The presence of oil that is too thin or too thick leads to inefficiencies.
• Leakage inside. A deteriorated seal and components produce excessive heat

Recognizing the causes early could aid in preventing serious damage.

Hydraulic fluid overheating symptoms

Being aware of warning signs early in the event of excessive heating is vital. Below are the top frequent warning signs:

1. Increased fluid temperature

It's the simplest sign. If your machine is consistently hotter than usual, it's a clear indication that there's something not right. Most modern machines come with temperature gauges. Monitor them frequently.

If temperatures are higher than 70°C when temperatures exceed 70degC, oil begins to degrade quickly, which can lead to permanent destruction.

2. Reduced system efficiency

In the event of overheated hydraulic fluid, it loses its viscosity and becomes less viscous. This decreases its capacity to transfer power efficiently, which results in:

• Slower actuator movement
• The capacity for lifting has been reduced
• Response times that are delayed

Users may notice that their machines seem to be "sluggish" or less responsive.

3. Unusual noises

Overheating can lead to an increase in friction and cause cavitation within the system. This is often the cause of:

• The sound of banging or knocking
• The pump is whirring
• In hydraulic lines, vibrations can occur.

These are usually the first warning signs of larger problems.

4. Fluid discoloration

Healthy hydraulic oil will be transparent or slightly amber. Oil that has been heated can turn:

• Black or dark brown (oxidation)
• Milky (water contamination)

The discoloration is a sign of chemical breakdown and contamination.

5. Burnt smell

One of the most obvious signs to spot is a burning or acrid scent emanating from the fluid. It is a result of the thermal oxidation in the petroleum.

If you smell this odor, it is imperative to act immediately.

6. Seal and hose damage

The high temperatures can cause damage to rubber seals, O-rings, and hoses. These indicators are:

• Seals that are cracked or brittle
• Leaks of oil
• Swelling of components

When seals fail, the system's effectiveness decreases dramatically, and the risk of contamination rises.

7. Increased oxidation and sludge formation

Overheating can accelerate oxidation, which leads to the buildup of varnish and sludge. This could:

• The block valves, as well as filters
• Limit fluid flow
• Cause sticking components

Sludge buildup is the biggest factor in system failure.

8. Frequent filter clogging

If the filters become blocked more frequently than normal, it could be due to the degradation of oil-producing pollutants. When oil is heated, it is broken down into particles and circulates throughout the system.

9. Foaming or aeration

The excessive heat may cause air to combine with fluid, which leads to foaming. This can reduce the ability of the fluid to transfer power and effectively lubricate the components.

Effects of ignoring overheating

Inattention to the problem of overheated hydraulic fluid could result in serious consequences:

• Pump failure
• Valve malfunction
• Leaks and seal damage
• Costs of maintenance increase
• Unexpected downtime

In extreme cases, the whole hydraulic system could require replacement.

When to change hydraulic oil?

Making sure to change the fluids for hydraulics at the correct timing is crucial to maintaining the health of your system. Here are the most important indicators to tell if you should consider an oil change

1. Based on operating hours

The majority of manufacturers recommend changing the hydraulic oil following a certain number of hours of operation, generally:

• 1,000-2,000 hours is the recommended time for the standard system
• Changes more frequently for applications that require heavy-duty power

Always refer to the device's manual to determine the exact timings.

2. Oil appearance

Visual inspection is a straightforward but effective way. Replace the oil when it appears:

• Dark or black
• Milky or cloudy
• Contaminated by particles

Clean oil should be free of dirt and free of dirt.

3. Unusual odor

When the smell of oil is burned, it is likely that it has undergone thermal degradation and needs to be replaced right away.

4. Increased operating temperature

If your system is heating up faster than usual, even after routine maintenance, oil that is degraded could be the reason. Replacing the oil will ensure the proper dissipation of heat.

5. Frequent component failures

The repeated issues, such as seal wear or failure, could indicate poor-quality oil. Oil that is degraded or old has lost its protective qualities.

6. High acid number (AN)

Testing for oil will reveal the extent of chemical degradation. An acid score that is high suggests oxidation and the necessity for an oil change.

7. Water contamination

The presence of water in hydraulic oil decreases the lubrication of the oil and causes corrosion. If there is evidence of water contamination and the oil is damaged, it must be changed.

8. Foam formation

The persistent foaming indicates the presence of oil contamination or degradation. This is another indication that replacement is needed.

Preventing hydraulic fluid overheating

Prevention is always more effective than treatment. Here are some tips to ensure your hydraulic system is working at its peak:

Maintain proper fluid levels

The low levels of fluid reduce the capacity of the system to dissipate heat. Be sure that the reservoir is filled up to the required level.

Use the correct oil

Selecting the correct quality and viscosity of hydraulic oils is crucial. Make sure to check the specifications of the manufacturer for compatibility.

Regularly clean coolers

Oil coolers and heat exchangers must be cleaned and inspected frequently to ensure efficient heat transfer.

Replace filters on time

Filters that are blocked limit flow and boost the amount of heat generated. Maintain a regular replacement schedule.

Monitor system load

Be careful not to overload the system beyond the capacity of its design. The excess load can cause pressure to rise and the temperature.

Conduct routine inspections

Always check for leaks, worn parts, or unusual noises. Early detection could prevent major problems.

Perform oil analysis

Regular oil tests provide valuable insight into the condition of the fluid as well as the level of contamination and the health of the system.

Best practices for changing hydraulic oil

When it's time for a change in hydraulic oil, make sure you follow these guidelines:

1. Cleanse. Eliminate any old oil to avoid contamination
2. Cleaning the whole system. If necessary, flush to get rid of sludge and other debris
3. Refill filters. Always replace filters after oil changes.
4. Use high-quality oil - Invest in reliable, manufacturer-approved fluid
5. Look for leaks - Check connections and seals before refilling
6. Be responsible in disposing of Be mindful of the environmental regulations regarding oil disposal

Overheating of hydraulic fluids is a serious problem that can affect the efficiency and longevity of the equipment. By recognizing the symptoms - like excessive temperatures, decreased performance, discoloration, and unusual noises- you can take actions to avoid costly damage.

Also important is knowing when it is time to change the hydraulic oil. Regularly monitored visually, inspection, and oil analysis play a vital part in maintaining the health of the system. If you wait too long to replace damaged oil could lead to serious consequences, such as the system failing.

A proactive approach to maintenance - paired with a proper fluid management system- ensures maximum performance, less time to repair, and an extended lifespan. If you work with heavy equipment or industrial equipment, maintaining your hydraulic fluid in good working order is among the best investments you could make.
