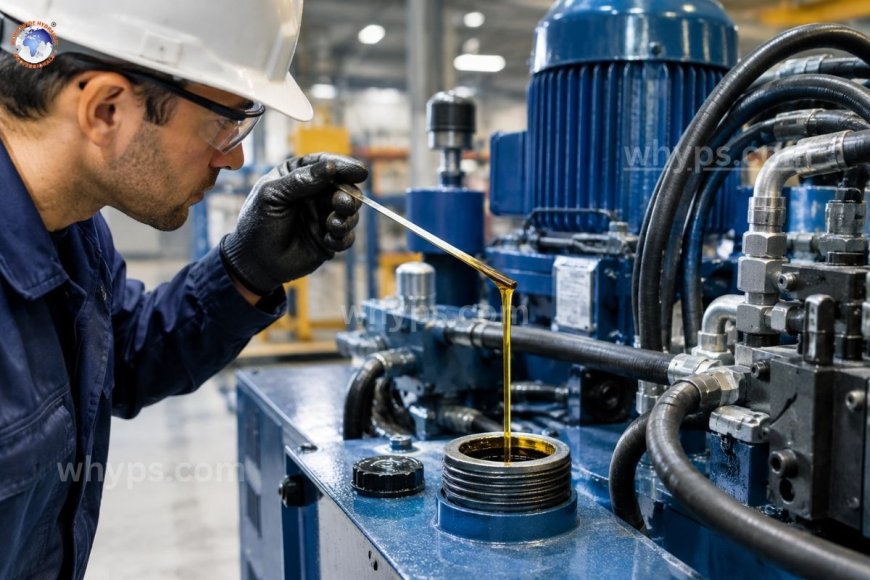

What happens when hydraulic oil viscosity is too high?

When the viscosity of hydraulic oil becomes excessively high, the fluid will not flow, leading to slow response of the actuator, an increase in pump cavitation risks, higher heat and friction within the pump and energy consumption that is higher, and increased wear on valves and pumps -- particularly when the engine is cold. As time passes, this can lead to a decrease in efficiency of the system as well as erratic operation and premature failure of the component.

Viscosity is among the most crucial—and frequently neglected—characteristics that hydraulic fluids possess. Many operators believe that a heavier, "thicker" oil offers better protection; however, excessive viscosity causes its own set of operational and mechanical issues. Knowing what happens when viscosity increases too much can help maintenance teams choose the correct fluid grade to reduce the cost of downtime.

Understanding the role of viscosity in hydraulic systems.

Viscosity is the term used to describe the resistance of a fluid to flow. When it comes to hydraulic systems, it affects how well oil flows through valves, pumps, pipelines, cylinders, and others. Each hydraulic component is built to work within an optimal level of viscosity (commonly measured in centistokes, or cSt) for a specific operating temperature. Fluid that is within this range permits the system to increase pressure, react to control inputs, and also lubricate moving components as they are designed.

If the viscosity is higher than that specified level—be it because of choosing a grade that is too heavy or operating in cold conditions or causing fluid degradation The system is working against itself, not using the fluid.

Principal effects of a high viscosity

1. System response is slow and sluggish.

The thick oil can't flow through valve spools, orifices, and passages for control as easily as the fluid that is within the specification. This manifests as a delay in actuator movement, a slow cylinder's extension or retraction, and a delay between the input of a controller and the response of the mechanical. When systems require fast or precise motion—for example, proportional valve applications and servo-hydraulic circuits—this delay can affect the accuracy of the process and also cause safety issues.

2. The risk of pump cavitation is increased.

Pumps depend on fluid flowing freely into the intake to fill the pumping chamber completely. If the viscosity is too high, the oil is unable to fill the suction side as quickly as it should, particularly during startup or when the pump is operating at high speed. These create low-pressure zones in which dissolved air is released from the solution or vapor bubbles develop. When these bubbles fall within the pump, they cause cavitation, which causes pitting of internal surfaces, noise, vibration, and a shorter life span for the pump.

3. Internal frictions are increased, as well as heat production.

Contrary to what you might think, the fact is that oil that is too thick produces more heat than those in the proper limit. A thicker fluid will increase the resistance to shear when it's pushed through orifices with narrow clearances and valve passages. The friction is converted directly into heat, increasing the system's operating temperature. The increased temperature accelerates oxidation and reduces the service life of fluids and may force systems into feedback, the oil that is hot and degrading becomes thinner in a few ways and forms heat-related deposits in some other areas, causing confusion in diagnosis.

4. Higher energy consumption

Pumps have to work harder in order to transfer viscous liquid around their circuits, and this in turn increases the load of mechanical work on the primary mover, regardless of whether it is an electric motor or engine. This leads to a significant increase in energy consumption. For industrial equipment that is constantly running, even a tiny difference in viscosity could add up to an enormous, unavoidable energy consumption over the course of operating.

5. Poor cold-start performance

Viscosity that is high can cause problems during cold start-ups, since the oil has already become thicker because of the lower temperatures in the ambient. A viscous fluid that is too viscous at the start could deprive the pump of sufficient flow prior to the system being at its operating temperature, resulting in an extended period of wear every time the equipment is started under cold temperatures. This problem is common with outdoor construction, agricultural machinery, and forest equipment that operate in seasonal temperatures.

6. The efficiency of filters is decreased, and the pressure drop

The filters are calibrated according to an ideal viscosity range. A thicker fluid increases the pressure drop across the media, which may cause bypass valves to close in a hurry, allowing non-filtered oil to circulate and cause the filters to break in the presence of a sustained high differential pressure. The result is a stumbling block to contamination control, an essential element for long-term component reliability.

7. Wear and tear on seals accelerates, as do moving parts.

Although thick oil can be selected specifically to increase the film's strength and sealing, high viscosity may increase the load on valve spools, seals, and bearing surfaces, as components struggle to push fluid through restricted clearances. In conjunction with the higher operating temperatures, this speeds up the process of hardening seals and wear and reduces the service life of components that could last for much longer.

Common causes of viscosity excess

• The wrong fluid choice: choosing a viscosity that is heavier than what the manufacturer of the equipment specifies.
• Cold operating conditions: Ambient or start temperatures that are well below the fluid's maximum range.
• Fluid degradation and oxidation The oil that is aging can become thicker over time because of oxidation, and sludge forms.
• Ingress of contaminants or water Certain types of contamination can alter the rheology of fluids by increasing apparent viscosity.
• Use of the wrong seasonal fluid. the summer grade fluid and not adjusting it to winter's operating conditions.

What is the best way to spot the presence of a viscosity issue?

The indicators that the viscosity is too high are slow or unsteady cylinder movement and unusually high operating temperature, as well as whining or cavitation sounds emanating from the pump, especially during startup; more energy use than normal; and regular warnings about premature bypass of the filter. Regular oil analysis, which includes tests for viscosity at 40 and 100 degrees Celsius, is the most reliable method to determine whether the viscosity has shifted outside of the recommended range of the manufacturer.

Tips to avoid problems related to viscosity

The choice of fluid viscosity is based on the specifications provided by the manufacturer of the equipment rather than settling on a higher grade in order to give more security that is the basis of proper maintenance for your hydraulics. When equipment is operating over temperatures of varying degrees, multi-viscosity hydraulic fluids that are made with viscosity index improvers will help ensure more constant performance from cold beginning to full operating temperature. Routine oil analysis and adherence to manufacturer-recommended change intervals help catch viscosity drift from oxidation or contamination before it causes damage. In addition, matching the filtration system's specifications to the type of fluid used helps prevent problems with pressure drop and bypass caused by higher-quality oil.

A high hydraulic oil viscosity is often thought to be the protection of the system; however, in reality, it causes slow response, cavitation risk, excessive heat, increased cost of energy, and faster wear on components—issues that often outweigh any advantages. Finding the proper viscosity level to suit the operational environment, monitoring the condition of the fluid through regular analysis, and preparing for temperature fluctuations during the season are the most efficient methods to ensure that your hydraulic system stays functioning efficiently and to protect its components in the long run.

1. What is the optimal viscosity range for the majority of hydraulic systems?

The majority of industrial hydraulic systems function best between 16 and 36 cSt in normal operating temperatures, but the exact number will depend on the type of pump and manufacturer's specifications. Hence, always refer to the equipment's technical manual.

2. Does high viscosity affect the pump's hydraulic system?

Yes. Viscosity that is too high increases the risk of cavitation and mechanical load that both increase wear on the internal pump and reduce service life considerably.

3. Do colder temperatures cause hydraulic oil viscosity to be excessively high?

Colder temperatures tend to thicken the hydraulic fluid. This is the reason why systems operating in cold climates usually require winter-specific or multi-grade fluids to ensure an appropriate flow when they start.

4. What can I do to tell the viscosity of my hydraulic oil is excessively high?

Common indicators are slow actuator response and a higher operating temperature. Other indicators include loud pump operation and an increase in energy consumption. Laboratory oil analysis can provide the definitive proof.

5. What is the difference between viscosity index and viscosity index?

Viscosity identifies the fluid's resistance towards flow when it is at a particular temperature, and the viscosity index determines the degree to which viscosity fluctuates in a temperature range. A higher index of viscosity indicates better flow properties as temperatures fluctuate.
