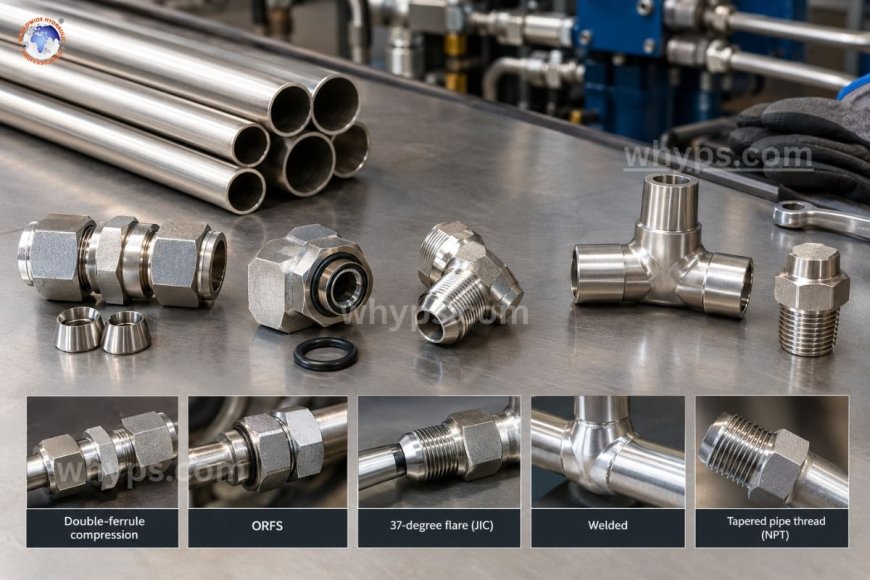

Which hydraulic fittings are best for stainless steel tubing?

For most hydraulic systems running stainless steel tubing, the best choices are double-ferrule compression fittings and O-ring face seal (ORFS) fittings, with welded joints for permanent runs. Each one handles stainless steel's hardness and tendency to gall better than a standard flare or tapered thread. Stainless tubing earns its place in hydraulics for good reasons: it resists corrosion in marine, washdown, chemical, and food-processing settings, and it holds up under high pressure and temperature swings. But all of that value disappears if the fitting is wrong. A mismatched connector leaks, loosens under vibration, or seizes on the first assembly.

This guide walks through the main fitting types, where each works best, and how to avoid the mistakes that cause most field failures.

Why do stainless steel tubing needs different fittings?

Stainless is not just harder carbon steel with a shiny finish. Three traits change how fittings behave.

• It work-hardens. Bending, flaring, or over-tightening makes the metal harder and more brittle at the point of deformation.
• It galls. Stainless relies on a thin oxide layer for corrosion resistance. When two stainless surfaces slide under load, such as threads being tightened, that layer tears, and the surfaces can weld together.
• It is often harder than the fitting expects. Many fitting designs assume a softer carbon steel tube. Fitting makers generally recommend annealed stainless tubing at roughly 80 HRB or softer.

Grade matters too. Type 316 or 316L is the standard for hydraulics because the added molybdenum resists chlorides and pitting. Type 304 is cheaper but corrodes faster near salt water or harsh cleaners. Whatever you choose, use seamless tubing, such as ASTM A269 or A213, rather than welded tube for high-pressure lines.

Double-ferrule compression fittings: The reliable all-rounder

A double-ferrule fitting uses two ferrules, a front and a back, that grip the tube and seal against the fitting body as the nut is tightened. The front ferrule creates the seal. The back ferrule bites into the tube and holds it in place, which also absorbs vibration that would otherwise travel to the seal.

This design suits stainless tubing well. No flaring is needed, so the tube never work-hardens at the end. Assembly is repeatable, and the joint can usually be disassembled and remade several times. Instrumentation and hydraulic lines in refineries, ships, and processing plants rely on it for exactly these reasons.

The limits are worth knowing. The tube must be cut square and deburred, the outside surface must be free of deep scratches, and you should only use ferrules made for stainless tube. Pairing carbon-steel bite-type ferrules with stainless tube is a common cause of leaks, because the ferrule cannot bite properly into the harder wall.

O-ring face seal (ORFS) fittings: Best for leak-free performance

If leaks are expensive, ORFS fittings are hard to beat. The seal comes from an elastomer O-ring seated in a groove on a flat fitting face, not from metal-on-metal contact. The threads only supply clamping force, so the joint stays sealed even when vibration or pressure spikes shift the connection slightly.

For stainless tubing, ORFS is usually paired with a welded or brazed tube end, or with a flared sleeve. The O-ring does the sealing, so surface finish on the tube is less critical than with compression fittings.

Choose the O-ring material to match the fluid and temperature. Nitrile works for most petroleum-based oils, while fluorocarbon (Viton) handles higher heat and aggressive fluids. Always replace the O-ring when you reopen a joint. In exchange for this small upkeep, you get one of the lowest leak rates available in high-pressure hydraulics.

37-degree flare (JIC) fittings: Use with care

JIC fittings are everywhere in hydraulics because they connect easily to hoses, pumps, and valves. The seal forms where a 37-degree flared tube end meets a matching cone on the fitting.

The trouble with stainless tubing is the flare itself. Forming it work-hardens the metal, and a poorly made flare can crack or leave a weak seating surface. Thicker walls and higher-grade tube make flaring harder still. Metal-to-metal sealing also depends on a clean, accurate flare, so small defects can mean leaks.

JIC still has a place. It works well at the ends of a stainless line where you must connect to existing JIC ports, and it suits annealed tube in smaller sizes. Where possible, use a flare-less alternative on the tube side and keep JIC for the port connection, using a swivel adapter.

Welded connections: The permanent solution

When a line will never be opened, welding removes the joint as a leak path altogether. Butt welds and socket welds are common, and orbital welding gives consistent, repeatable results on tubes.

Welding stainless takes skill. Use low-carbon 316L tube and fittings to reduce the risk of sensitization, a condition where chromium carbides form at the grain boundaries and weaken corrosion resistance near the weld. Purge the inside of the tube with argon so the inner surface does not oxidize, and clean the area thoroughly before and after.

Welded joints are ideal for long, high-pressure runs and sanitary systems. The trade-off is serviceability: you cannot easily take a welded line apart, so many designs weld the main run and add compression or ORFS connections at components that need replacing.

Tapered pipe threads: Avoid them where you can

NPT and similar tapered threads seal by wedging the threads together, usually with tape or paste. On stainless steel, that is a recipe for trouble. Tapered threads gall easily, need heavy torque, and leave a spiral leak path that sealant only partly fills. Vibration and thermal cycling make the problem worse.

If a port forces you to use tapered threads, use a thread sealant rated for stainless, limit the number of times the joint is remade, and consider an adapter to a straight-thread or ORFS connection as soon as possible.

Match your materials and prevent galling

Use stainless fittings with stainless tubing. Mixing in brass or carbon steel creates galvanic corrosion, especially in wet or salty environments, and carbon steel can rust and contaminate the system.

To prevent galling, lubricate threads with a stainless-compatible anti-seize or the lubricant the manufacturer specifies. Some fittings use silver-plated nuts or dissimilar hardness between the nut and the body to reduce seizing. Tighten slowly, since heat from fast tightening speeds up galling. Also confirm the lubricant is compatible with your hydraulic fluid and any food or pharmaceutical requirements.

Installation practices that prevent leaks

Most fitting failures trace back to installation, not the fitting itself.

1. Cut square. Use a tube cutter or saw guide, then deburr inside and out.
2. Inspect the tube. Reject tubes with deep scratches, dents, or out-of-round ends.
3. Bottom the tube. Push it fully against the fitting shoulder before tightening.
4. Follow the turn count. Use the manufacturer's recommended turns from finger-tight, not guesswork.
5. Support the line. Clamp tubing at regular intervals so vibration does not stress the joint.
6. Test before use. Pressure test the system to the specified level and check each joint.

Quick guide: Which fitting for which job?

There is no single best fitting for every stainless hydraulic system, but the pattern is clear. Double-ferrule compression and ORFS fittings give the strongest combination of seal, vibration resistance, and ease of service. Welding is the right call for permanent runs, JIC works at hose and port connections, and tapered threads belong at the bottom of the list.

Whatever you choose, match the grade of tube and fitting, lubricate threads, and follow the manufacturer's assembly instructions and pressure ratings. A few minutes of care at installation saves hours of troubleshooting later.
