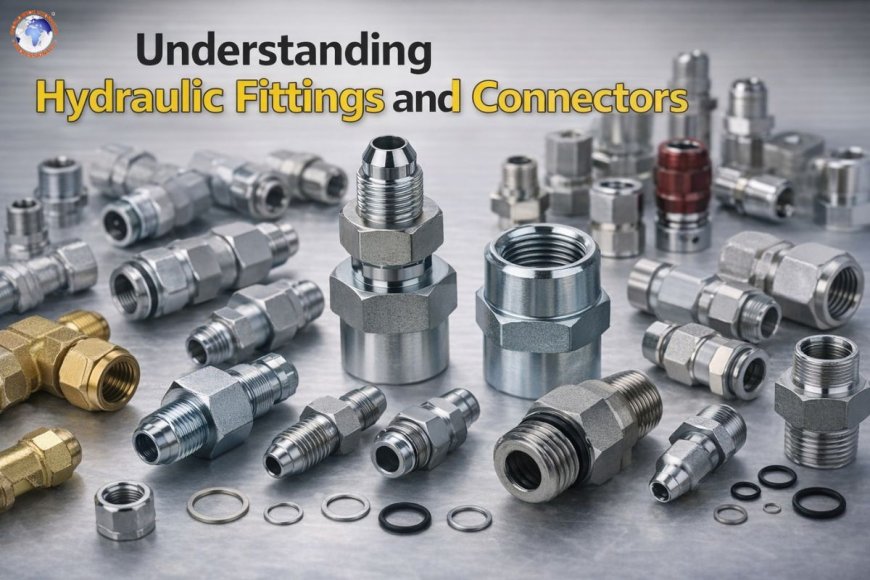

Understanding Hydraulic Fittings and Connectors

Hydraulic systems are the power source for some of the most challenging machines in the world, from construction equipment to agricultural tractors to aircraft and industrial presses.  At the core of the systems is connectors and fittings made of hydraulic fluid, which are the tiny yet vital components that ensure that the flow of fluid is secure and effective at high pressure.

No matter if you're a technician, engineer, student, or even the owner of equipment, knowing about connections and fittings for hydraulics is vital to security, reliability, and performance.  In this thorough guide, we'll discuss the basics of these fittings, the various kinds of connector materials, standards for connection specifications, and selection criteria, as well as the best techniques for installing and maintaining.

What Are Hydraulic Fittings and Connectors?

Connectors and fittings for hydraulics are mechanical parts that join hoses, pipes, and tubes in hydraulic systems.  They are used for the following purposes:

• Connect fluid conductors

• Be aware of leaks

• Stand up to high pressure

• Disassemble the unit for maintenance.

• Make sure that components are compatible

Different from simple plumbing fittings, hydraulic fittings have to endure extreme pressure and vibration, as well as temperature fluctuations and corrosion-prone environments.

Why They Matter in Hydraulic Systems

Hydraulic systems depend on fluid that is pressurized (usually oil) to transfer the force.  When fittings fail, results could be:

• Leaks of fluid

• Pressure loss

• Equipment downtime

• Environmental hazards

• A serious injury

In fields like agriculture, construction, and aerospace, as well as manufacturing, an untimely failure could cost thousands or millions of dollars in downtime and repair costs.

Types of Hydraulic Fittings

Hydraulic fittings can be classified according to the design, style of connection, and sealing technique.  Here are the most popular varieties.

1. Threaded Hydraulic Fittings

These are the most commonly employed fittings.  They are used to seal threaded connections.

Common thread types are

• NPT (National Pipe Tapered)

• BSP (British Standard Pipe)

• Threads with Metrics

• JIC (Joint Industry Council)

Threaded fittings are often used in systems that are built according to North American or European standards.

2. Flared Fittings (JIC)

JIC fittings make use of an angle of 37 degrees to form the metal-to-metal sealing.  They are extremely durable and are widely employed in agricultural and industrial equipment.

These fittings are made standard by various organizations, such as SAE International. SAE International and are popular because of:

• They offer a strong resistance to leaks.

• They can be reused

• They are able to perform under high stress

3. O-Ring Face Seal (ORFS) Fittings

ORFS fittings make use of an O-ring, which is compressed between two surfaces that are flat.  They offer superior leak protection and are perfect for high-pressure systems.

Benefits include:

• Excellent sealing performance

• High-frequency resistance to vibration

• Low risk of leakage as in comparison to tapered threads

4. Flange Fittings

Flange fittings are commonly used in large-diameter and high-pressure hydraulic lines.  The fittings are connected by using a flange clamp as well as an O-ring.

They are typically defined under guidelines set by the International Organization for Standardization (ISO).

Flange fittings are used extensively in heavy machines, such as excavation equipment, mining machines, and so on.

5. Quick-Disconnect Couplings

Fittings for Quick Disconnect (quick-connect) fittings permit quick connection and disconnection with no tools. They are extensively employed in:

• Agriculture equipment

• Mobile hydraulic systems

• Industrial machinery

The connectors usually come with internal valves to stop leaks of fluid when disconnection is made.

Common Hydraulic Connector Materials

The choice of materials can affect the performance and durability. The most popular materials are:

Steel

• High-strength

• It is suitable for high-pressure systems.

• Cost-effective

• May require corrosion protection

Stainless Steel

• Excellent corrosion resistance

• Great for chemical or marine environments.

• Costs higher

Brass

• Resistant to corrosion

• Great for low-to medium-pressure systems. Good for medium- to low-pressure

• Machines are easier to use

Aluminum

• Lightweight

• In aerospace applications, it is used

• Lower pressure tolerance

Hydraulic Fitting Standards

Hydraulic fittings should be in compliance with a variety of international standards in order to ensure compatibility and security.

The most important standards organizations are:

• SAE International (SAE)

• International Organization for Standardization (ISO)

• American National Standards Institute (ANSI)

• British Standards Institution (BSI)

These standards define:

• Dimensions of thread

• Ratings of pressure

• Methods for sealing

• Specifications for the material

• Test procedures

Standard fittings guarantee that the fittings are compatible across manufacturers and equipment.

How Hydraulic Fittings Create a Seal

Hydraulic fittings depend on a variety of sealing mechanisms:

1. Metal-to-Metal Seal

Utilized for JIC as well as flare fittings. The sealing surface is compressed under the force of torque.

2. Elastomeric Seal (O-Ring)

It is commonly found used in ORFS and Flange fittings. The O-ring expands to fill imperfections on the surface.

3. Thread Interference

Threads with tapered threads (like NPT) ensure that threads are secured by deformation when combined with sealant.

Each method of sealing has its own specifications for torque and installation methods.

Pressure Ratings and Performance

Hydraulic fittings are evaluated using the maximum working pressure. The rating is based on:

• Material

• Thread design

• Wall thickness

• Temperature

• Type of application

Make sure that the fitting's rating is higher than the system's highest operating pressure, including pressure spikes.

Selecting the Right Hydraulic Fitting

Making the right choice for your fitting requires many aspects:

1. Pressure Requirements

Make sure that the system is compatible with capacity and pressure.

2. Temperature Range

The temperature of hydraulic fluids can impact the sealing properties of materials and also expand metal.

3. Fluid Compatibility

Some fluids may degrade certain seal materials.

4. Environment

Take into consideration vibration, corrosion and mechanical stress from outside.

5. Size and Thread Type

Threads that are not matched are among the most frequent leaks.

6. Regulatory Compliance

Make sure that the fittings are in line with the industry standards applicable to your region or the type of equipment.

Common Hydraulic Fitting Problems

Even fittings of the highest quality can fail if installed incorrectly or chosen.

1. Leaks

Most often, the cause is:

• Improper torque

• Thread mismatch

• Damaged O-rings

• Contamination

2. Cracking

This can be caused by:

• Over-tightening

• Excessive vibration

• A poor selection of materials

3. Thread Galling

Common in stainless steel fittings when not properly lubricated.

4. Seal Failure

Occurs due to:

• Heat excess

• Chemical incompatibility

• Elasticomers with aging

Installation Best Practices

A proper installation is crucial to the safety and performance.

Inspect Components

Examine for any damage or other manufacturing problems.

Use Correct Torque

Over-tightening can cause leaks. causes damage to seals and threads.

Avoid Mixing Standards

Do not force threads that are incompatible to join.

Use Clean Hydraulic Fluid

Contamination is the most common cause in system breakdown.

Replace Seals When Reconnecting

Particularly O-rings used especially in ORFS systems. O-rings are particularly important in ORFS.

Maintenance and Inspection

Regular inspections can prevent major failures.

• Be on the lookout for leaks

• Verify for corrosion

• Check for cracks

• Monitor pressure performance

• Replace the worn parts immediately

Predictive maintenance in industrial equipment typically includes hydraulic inspections in safety programs.

Hydraulic Connectors in Different Industries

Construction

Excavators, loaders and cranes utilize high-pressure connectors as well as quick connect couplings.

Agriculture

Tractors and harvesters depend heavily on connectors that can be quickly disconnected for their equipment.

Aerospace

Aircraft hydraulic systems require lightweight fittings with high-strength -- usually stainless steel or aluminum.

Manufacturing

Automation systems and industrial presses utilize fittings that are precision-threaded.

The Future of Hydraulic Fittings

Modernization of the hydraulic connector technology include:

• New sealing materials for improved sealing

• Coatings that resist corrosion

• Smart fittings equipped with pressure sensors

• High-strength, light weight alloys with a low weight.

When machinery gets less bulkier and efficient, equipment have to be able to handle greater pressures in smaller dimensions.

Safety Considerations

Hydraulic systems are able to be operated at pressures that exceed 5 000 PSI. A failure of the fitting under pressure could:

• Inject hydraulic fluid directly into the skin (a health emergency)

• Whip hoses and cause whipping

• This can lead to equipment collapsing

Always depressurize the system prior to maintenance and ensure that you wear the correct protection equipment.

Connectors and fittings for hydraulics might appear to be minor parts but they play a vital function in the integrity of the system as well as security. Selecting the correct type, making sure that the installation is done correctly and regular maintenance can greatly extend the lifespan the hydraulic system you are using.

Understanding the difference between threaded fittings ORFS Flanges, threaded fittings, as well as quick-connects as well as their materials and specificationswill allow you to construct and maintain reliable hydraulic systems.

In high-pressure environments, even the most insignificant component can be the most significant impact.
