Hydraulic Scissor Lift Table for Material Handling: The Complete Buyer's Guide

Hydraulic Scissor Lift Table for Material Handling: The Complete Buyer's Guide

If your facility deals with heavy loads at different heights, a hydraulic scissor lift table is a smart investment. Whether used for loading docks, assembly lines, or warehouse tasks, these machines reduce ergonomic risks and greatly boost efficiency. This guide explains what you need to know before buying a hydraulic scissor lift table, from how it operates to the key specifications to consider.

What Is a Hydraulic Scissor Lift Table?

A hydraulic scissor lift table is a work platform powered by a hydraulic cylinder system. It uses a crisscross linkage mechanism to smoothly and safely raise and lower a platform. The lifting force comes from pressurized hydraulic fluid acting on one or more cylinders linked to the scissor arms.

These tables are commonly used in:

- Manufacturing and assembly plants

- Warehousing and distribution centers

- Automotive workshops

- Printing and packaging facilities

- Food processing and pharmaceutical plants

How the Hydraulic System Works

The main part of any scissor lift table is its hydraulic power unit. An electric motor drives a hydraulic pump, pushing oil into the cylinder. As pressure builds, the cylinder extends, forcing the scissor arms apart and raising the platform. A control valve manages the oil flow, allowing for smooth lifting and lowering.

Key hydraulic components include:

- Hydraulic pump: converts motor rotation into fluid pressure

- Hydraulic cylinder(s): converts fluid pressure into lifting force

- Control valve: manages flow direction and speed

- Hydraulic fluid reservoir: stores and cools the oil

- Pressure relief valve: protects the system from overload

The reliability and accuracy of this hydraulic system directly affect the lift table's performance, load capacity, and lifespan.

Key Specifications to Evaluate

When choosing a hydraulic scissor lift table for material handling, pay attention to these key points:

1. Load Capacity: Rated in kilograms or tonnes, this is the maximum weight the table can safely lift. Always add a safety margin of at least 20% above your usual load weight.

2. Platform Size: Ensure the platform dimensions accommodate your largest pallet, container, or workpiece. Common sizes range from 800×1200 mm to 1500×2000 mm and beyond for industrial uses.

3. Lifting Height: Standard lift tables usually raise from floor level (around 300 mm closed height) to 800–1500 mm. Custom models can reach higher for special tasks.

4. Lifting Speed: This depends on pump flow rate and cylinder size. In production settings, a quicker cycle time reduces delays.

5. Power Supply: Most industrial lift tables operate on 3-phase electric power (380V/50Hz or 460V/60Hz). Single-phase options are available for lighter-duty workshop use.

6. Safety Features: Look for safety skirts, mechanical safety legs, overload protection valves, and CE/ANSI certification. These are essential for compliance in your facility.

Types of Hydraulic Scissor Lift Tables

Single Scissor Lift Table: The most common type, suitable for loads up to 3–5 tonnes and heights up to 1.5 m. Best for general material handling tasks.

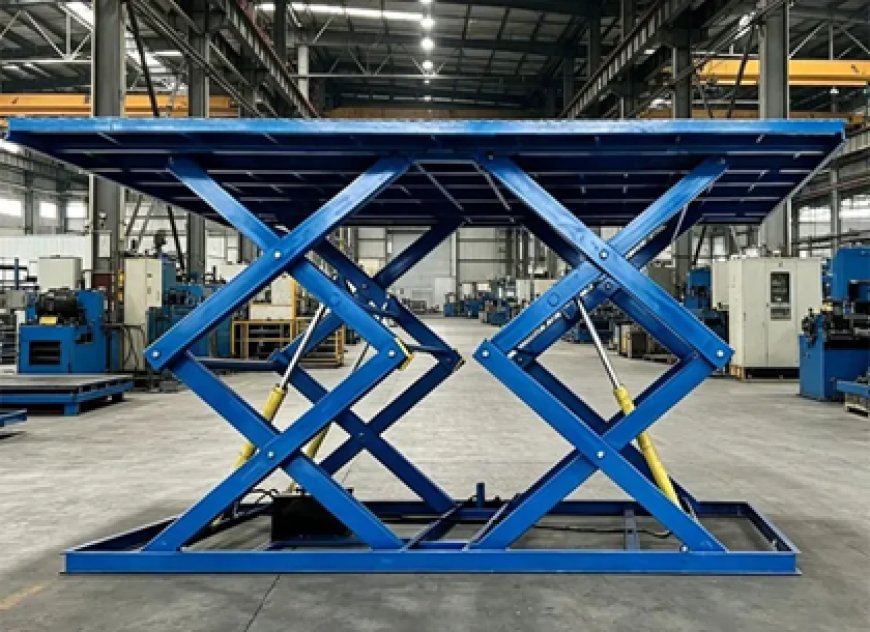

Double Scissor Lift Table: Two scissor mechanisms stacked vertically for greater lift height (up to 3 m or more) while maintaining the same footprint. Ideal when vertical elevation is more important than floor space.

Pit-Mounted Lift Table: Installed flush with the floor to allow forklifts or pallet trucks to roll directly onto the platform. Commonly used in production and loading areas.

Mobile Scissor Lift Table: Battery-powered, wheeled units for flexible positioning throughout a facility. Useful where fixed setups cannot be installed.

Tilt-Top Lift Table: The platform tilts after lifting to position parts ergonomically during assembly or machining processes.

Material Handling Applications

Hydraulic scissor lift tables are versatile tools found in various industries:

- Loading dock leveling: bridging height differences between trucks and warehouse floors

- Assembly workstations: raising heavy subassemblies to a comfortable working height

- Pallet transfer: moving goods between conveyor levels or storage tiers

- Machine feeding: positioning raw materials at the right height for CNC machines, presses, or injection molding equipment

- Ergonomic workstations: adjustable-height platforms that lessen back strain for operators handling heavy components

How to Choose the Right Supplier

Choosing the right hydraulic scissor lift table involves more than just comparing prices. You should evaluate:

- Manufacturing standards: ISO 9001 certification, CE marking, ANSI compliance

- Hydraulic component quality: branded cylinders, pumps, and valves generally last longer than generic options

- Customization capability: Can the supplier adjust platform size, capacity, power supply, or add features?

- After-sales support: Look for spare parts availability, technical documentation, and warranty terms

- Lead time and shipping: This is especially critical for project deadlines

For facilities needing a dependable, heavy-duty hydraulic scissor lift table designed for demanding tasks, consulting specialized manufacturers who can customize the unit for your specific needs is worthwhile.

Maintenance Tips for Long Service Life

Hydraulic scissor lift tables are designed for low maintenance, but a few simple practices will extend their service life:

- Check the hydraulic fluid level monthly: Low oil can cause pump issues and faster wear

- Inspect hoses and fittings quarterly: Look for cracks, oil leaks, or loose connections

- Lubricate pivot pins and scissor joints every 3–6 months with suitable grease

- Test the pressure relief valve annually to ensure it activates properly

- Keep the platform and scissor mechanism clean: Debris can damage seals and cylinder rods
