What are the early warning signs of hydraulic pump failure?

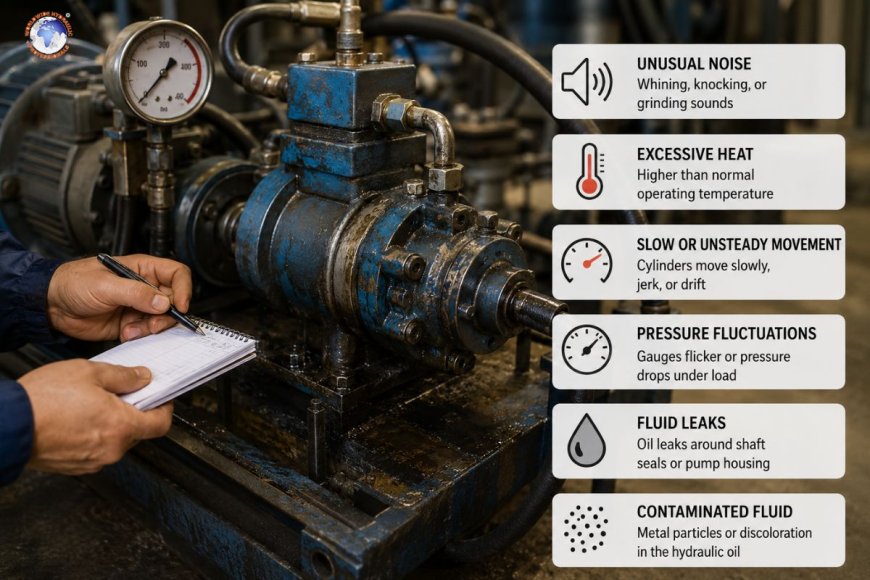

The most obvious warning indicators of a failing hydraulic pump are unusual noises (whining or cavitation knock or grinding) and abnormal heat generation as well as sluggish or unsteady cylinder movement, fluctuations in pressure in the gauges, apparent leaks of fluid at seals on shafts, and metallic particles or discoloration of the fluid. Identifying these issues when you conduct routine inspections or an oil analysis generally allows for the replacement of a pump planned instead of a costly and unplanned system shutdown.

Hydraulic pumps are rarely faulty without warning. In the majority of systems, the degradation is gradual, and internal wear is accumulated over time, and it can take months or weeks before a major breakdown takes the machine offline. The issue is that a lot of these initial signs are not obvious and are easy to dismiss to be "normal" operating quirks. Knowing what to look at, hear, and look for could be what the distinction is between a planned maintenance window and a costly emergency breakdown.

Why is it important to detect early?

The hydraulic pump forms at the central component to the whole system. and it converts mechanical energy into power through fluids. If a pump starts to fail, the consequences spread outwards—valves suffer from irregular flow, cylinders lose the ability to control speed and force, and downstream components suffer irregular pressure spikes, which increase their wear. Removing a pump in advance in the early indications can be nearly always less expensive than replacing a pump in the event of a pump failure, particularly when the failure damages valves, filters, or cylinders during the process.

1. Unusual noise

It is usually the most prominent and obvious sign of a deteriorating pump.

• A high-pitched or whirling sound: Most often, it is caused by air ingestion on the suction line or bearing wear or misalignment of the drive motor and pump.
• Knocking or rattle (cavitation): It's a distinct sound of hammering that suggests that vapor bubbles are forming and collapsing inside the pump. This is usually because of a lack of suction or a blocked inlet strainer or a fluid viscosity too high to be operating at the appropriate temperature.
• Scraping or grinding of metal could indicate advanced internal wear, such as damaged vanes, worn gears, or worn shoes on pistons within axial piston pumps and requires immediate shutdown to allow for an inspection.

Any changes in the pump's sound profile, however slight, should be recorded and examined instead of being ignored.

2. Heat excessively

Systems that generate heat naturally However, a pump operating more than its base temperature is a red flag. The most frequent causes are:

• Internal leakage through worn parts when fluid passes through clearances and stops doing work, converting the energy of hydraulics into heat.
• A lack of fluid or an inadequate inlet, which makes the pump perform more work than it was designed to.
• The degradation of the fluid, when the oil is no longer able to effectively disperse heat.

A simple check of the infrared thermometer on a regular basis that is compared with the historical readings of that particular pump -- can indicate the beginning of a problem weeks prior to the pump failing.

3. The actuator's movement is inconsistent or slow.

If the motors or cylinders in the vicinity of the pump start to move in an unnatural manner or hesitate or lose speed when under stress, the pump could be an obvious suspect. The signs are:

• Cylinders that move or drift when they are supposed to stay in place.
• Actuators that decrease their performance disproportionately as the temperature of the system rises.
• Jerky and "stick-slip" motion during otherwise regular operation.

These signs indicate a decline in volumetric efficiency. The pump isn't operating at the rate it was designed to because wear inside the pump is allowing the fluid to flow through internal channels instead of reaching the actuator.

4. Pressure fluctuation

A good pump will maintain steady pressure within its specified tolerance range. Signs to watch out for include:

• Gauge needles that flicker or oscillate instead of remaining steady.
• Pressure drops when at the moment of load and only recuperates.
• Relief valves are more often cycling than normal, which is often an indication of pump instability rather than the valve problem itself.

The ability to record pressure readings at regular intervals—and then comparing them with baselines for commissioning—makes it much easier to detect a gradual decrease rather than merely noticing pressure issues when they become serious.

5. Leaks of fluid occur at the seal on the shaft

The majority of hydraulic pumps utilize the rotary shaft seal at the point where the drive shaft is inserted into the housing of the pump. Seal wear early on typically manifests as

• A slow, steady drip of fluid from the shaft, instead of flashes of sudden rage.
• A buildup of fluid within the coupling guard or the drive housing.
• Air that enters the system via the same seal pathway (in reverse) is able to cause cavitation noise.

Leakage of the shaft seal is usually one of the first indicators of internal wear because the life of seals is tightly connected to the alignment of the shaft as well as bearing condition and drain pressure in the case—all of which decrease in tandem as the pump gets older.

6. Discolored or stained fluids

The routine oil analysis is among the best methods to identify wear in the pump before it is noticeable or audible in other parts of the system.

• Metallic particles: The elevated iron or bronze levels in a lab report are a sign of wear on pistons, gears, vanes, bearings, or even vanes based on the pump type.
• Cloudy or milky liquid It could indicate water contamination, which can cause corrosion and decrease the level of lubrication inside the pump.
• Burnt or dark-colored liquid: Most often, it's an indication of excessive heat in the housing of the pump even if the overall temperature of the reservoir appears normal.

Since the changes don't show up without testing in a lab, a lot of facilities plan quarterly or semi-annual oil samples specifically to detect the degradation of pumps early long before it turns into an operational sign.

7. Declining volumetric efficiency

This is the main reason behind the majority of the signs mentioned above. As the internal clearances wear out between housings and gears, vanes and cam rings or bores of cylinders and pistons, the fluid is slipping backwards in the internal space instead of getting delivered directly to the system. This is evident in the following forms:

• The cycle time is slower at identical loads.
• The pump needs to be running at a greater RPM or a higher displacement setting to produce the same output.
• A wider gap between the measured and rated flow is observed during testing.

Monitoring the efficiency of volumetric flow over time, including basic flow meter tests in scheduled maintenance, will provide an identifiable trend line instead of relying on the subjective "it feels slower" observations.

Establishing a functional monitoring procedure

Most facilities don't require costly surveillance systems that continuously monitor for these warning signs. A regular schedule is usually enough.

• Daily: Pay attention to noise changes, look at pressure gauges, and look for obvious leaks in fittings and shaft seals.
• Weekly: Note the temperature of the pump's case and then evaluate against your baseline.
• Monthly: Review the actuator's speed and cycle times against commissioning specifications.
• Quarterly: Take an oil sample to be used in lab analysis. The focus is on wear metal count and levels of contamination.

Recording these readings over time instead of treating every examination as a fail/pass is what converts slow wear on the pump into a regular maintenance event rather than the unexpected breakdown.

1. What is the typical first indication of the failure of the hydraulic pump?

In the majority of cases, an unusual-sounding noise—such as an air whining sound ingestion or a rumbling sound that is caused by cavitation—is the first sign that something is wrong that usually manifests before any significant decrease in flow or pressure.

2. Can a hydraulic pump be repaired, or is it in need of complete replacement?

Many pumps can be repaired by reinstalling seals and bearings as well as wear parts if they are discovered early enough, particularly vane and gear pumps. But, once wear on the cam ring or bore becomes significant, particularly in piston pumps, total replacement can be more expensive than repairing.

3. How often do you test hydraulic fluid to detect wear on the pump early?

A quarterly oil analysis is the standard base for industrial systems, but mission-critical or high-duty-cycle equipment typically benefits from monthly testing to spot wear metal trends earlier.

4. Does cavitation always harm the pump?

Yes, prolonged cavitation can cause the pitting to progress and erode the internal surfaces of pumps. Even a short period of cavitation may cause lasting damage to the surface that can accelerate future wear.

5. Does overheating cause a pump failure with no other signs?

Yes. Overheated seals degrade and weaken the film that lubricates the fluid and can cause internal wear and eventually failure, even though it appears normal.
