How can air entrapment damage hydraulic pumps and motors?

Hydraulic systems constitute the heart of modern industrialization, powering every aspect of construction machinery, agricultural machinery, the manufacturing process, and maritime applications. These systems depend on an incompressible fluid that transmits the force efficiently. But, if air gets trapped in the hydraulic fluid - a phenomenon called air trapping--it can seriously impact the performance of the system and result in major damage, primarily to motors and pumps.

While air might appear to be harmless, its presence within the hydraulic system can cause an array of mechanical, thermal, chemical, and other issues. Understanding the mechanism by which air is trapped and the way it affects crucial components is vital to keeping system reliability intact and increasing the life of equipment.

What is Air Entrapment in Hydraulic Systems?

Air entrapment is the presence of pockets or air bubbles in hydraulic fluid. It can take place in two main types:

• Air-free from visible air bubbles floating in the liquid

• dissolved air: Air mixed on a molecular basis that can be released from solution under certain conditions.

Hydraulic systems are engineered to function with virtually incompressible fluids. Air, however, is highly compressible. This fundamental distinction can cause serious problems when air is introduced into the system.

Common causes of air entrapment

The air can get into hydraulic systems through a variety of pathways:

1. Suction line leaks

Leaks in fittings, damaged seals, or suction hoses on the part of the pump could allow air to flow in the process.

2. Low reservoir levels

When the levels of fluid drop to a certain point, the pump can start to draw in air with the fluid, resulting in the process of aeration.

3. Poor system design

Poorly designed reservoirs, inadequate baffling, or improperly placed return lines could encourage air mixing.

4. High turbulence

Affective fluid movement within the tank could cause air to get entrained into the fluid.

5. Maintenance issues

Unintentional bleeding after maintenance or replacement of fluids can result in air trapped within the system.

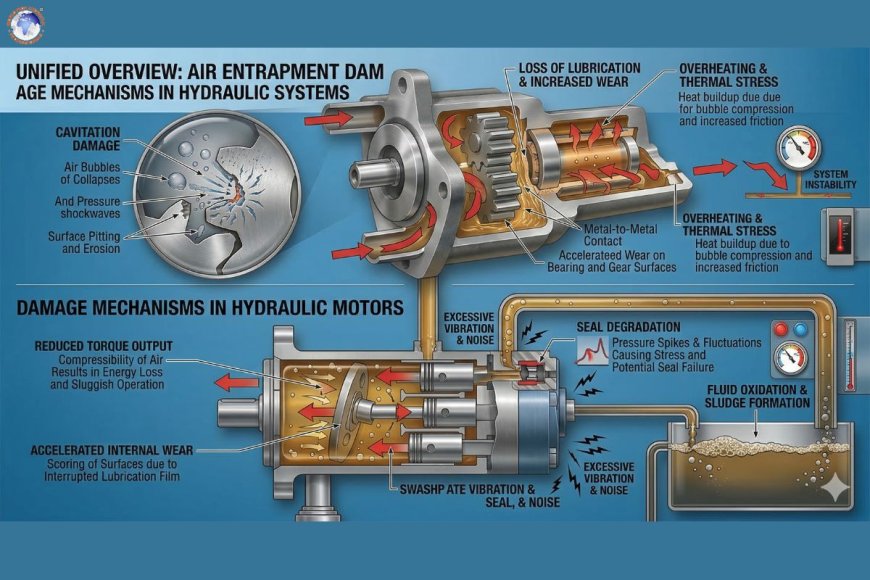

How air entrapment affects hydraulic pumps

Pumps that use hydraulics are especially susceptible to damage caused by air due to their high pressures and speeds.

1. Cavitation damage

A major and damaging result of air entrapment is cavitation.

Cavitation happens when air bubbles collapse rapidly under pressure. If these bubbles collide with metallic surfaces within the pumps, they create massive shockwaves.

Impact on pumps:

• Eroding and pitting of internal components

• Injuries to gear teeth, vanes, pistons, or gear teeth

• Efficiency and flow output are reduced.

• Noise and vibrations are increasing.

As time passes, cavitation may cause the pump to fail completely in the event that it is not addressed.

2. Loss of lubrication

Hydraulic fluid does not just transmit power, but also helps to lubricate internal components. If there is air:

• The film's fluidity is inconsistent.

• Contact between metals and metals increases

• Friction increases significantly

This can lead to increased wear on gears, bearings, and other moving parts.

3. Overheating

Air can reduce the fluid's capacity to transfer heat away from the components. Additionally:

• Air expansion and compression create heat.

• A higher friction level due to inadequate lubrication increases the burden of thermal energy

As temperatures increase, the viscosity of fluids decreases and further reduces the system's performance, leading to wear.

4. Erratic pump operation

Air bubbles interfere with the fluidity of hydraulic fluid, which can cause:

• The pressure fluctuates

• Inconsistent rates of flow

• Noise (often referred to as whining or knocking)

This instability can decrease the efficiency of the pump and could cause problems for the entire hydraulic circuit.

How air entrapment damages hydraulic motors

Like pumps, hydraulic motors depend on a precise flow of fluid and pressure for proper operation. The contamination of the air causes many problems.

1. Reduced Torque and Efficiency

Because air is compressible, some of the energy input is lost when the compression of air occurs instead of creating mechanical motion.

Results:

• NkhfD (reduction) in the output of torque

• Sluggish or jerky motor operation

• System efficiency is lower overall.

2. Increased wear and tear

Similar to pumps, air can reduce the quality of lubrication in motors. This can lead to:

• Internal components are prone to wear faster.

• Scoring of surfaces

• Service life is reduced

3. Vibration and noise

Air bubbles that move through the motor create an uneven pressure distribution. This results in:

• Excessive vibration

• Unusual noise

• Mechanical stresses on components

In time, this could make fittings looser and cause damage to internal components.

4. Seal damage

Air entrainment may cause tension spikes and fluctuation, which put extra stress on seals.

Consequences:

• Seal rupture or deformation

• Internal leakage

• Risk of contamination and reduced efficiency

Secondary effects on the entire hydraulic system

Although motors and pumps are the most directly impacted by air entrapment, it has global consequences for the entire system.

1. Oxidation of hydraulic fluid

The air introduces oxygen to the system, which accelerates the process of oxidation. This can lead to:

• The formation of varnish and sludge

• Degradation of ingredients

• The reduced life of fluids

2. Foam formation

The air can cause foam to form in the reservoir. This can cause:

• Reduces effective fluid volume

• Increases the risk of further inhalation of air

• Complex system operation

3. Pressure instability

Air that is compressed by air in the system, which can lead to:

• Response times that are delayed

• Inconsistent actuator movement

• It is difficult to maintain exact control

Warning signs of air entrapment

The ability to detect the presence of air in hydraulic systems early could prevent damage. Signs to look for include:

• Hydraulic fluid that is foamy or milky.

• Unusual sound (knocking or whining, the sound of a rattling)

• Erratic actuator movement

• Temperatures of operation increased

• System performance is reduced

Maintenance personnel and operators should be educated to recognize these warning signs.

Preventing air entrapment

It is essential to take preventive measures to prevent costly repairs and interruptions.

1. Maintain proper fluid levels

Make sure the reservoir is at the correct level to prevent air from entering the reservoir.

2. Inspect suction lines

Always check the hose for any leaks as well as damaged or damaged fittings.

3. Optimize reservoir design

• Use a proper baffling technique to remove air from the fluid

• Position return lines below the fluid level

• Give enough time to allow air to escape

4. Use proper Bleeding Procedures

Following maintenance, ensure that the air that has been trapped is eliminated from the unit.

5. Control fluid turbulence

Reduce agitation by creating flows that are smooth and avoid sharp turns.

6. Use high-quality hydraulic fluid

Fluids that have good air release properties aid in reducing trapped air.

Corrective actions

If air entrapment is in place:

• Turn off the power source securely

• Locate and fix the root of air entry

• The system was thoroughly bled

• Replace the degraded fluid, if needed.

• Inspect components for damage

The early intervention of a doctor can stop minor problems from becoming major problems.

Infiltration of air into hydraulic systems can be more than a minor annoyance. It is a serious problem that could cause extensive damage, especially to motors and pumps. It can range from cavitation and overheating to mechanical wear and lubrication issues; air is a threat to the fundamentals that drive hydraulic systems.

Through understanding the reasons and recognizing indicators, and taking efficient preventive measures, users can ensure their equipment is protected, increase efficiency, and cut down on maintenance costs. For high-performance hydraulic systems, keeping the fluid free of air isn't an option to be taken lightly, but essential to ensure long-term reliability and longevity.
