How to remove water from hydraulic oil?

Hydraulic systems comprise the foundation of a variety of construction, industrial, and agricultural machinery. They depend heavily on high-quality, clean hydraulic oil to operate effectively. However, one of the most damaging and prevalent pollutants in fluid systems for hydraulics can be the presence of water. Even tiny amounts of water could hinder performance, speed up wear, and cause expensive equipment failures.

In this complete guide, we'll examine the ways that water gets into hydraulic oil, the issues it creates, and, more importantly, the best ways to eliminate it successfully.

Understanding water contamination in hydraulic oil

Hydraulic oil in three types:

1. Dissolved water

It is water that is chemically absorbed by the oil and is not visible to the naked eye. It usually occurs in low amounts and rises with temperature.

2. Emulsified water

In this case, it is when oil mixes with water to give a milky or cloudy appearance. It's noticeable and usually suggests moderate contamination.

3. Free water

Free water is found at the base of the reservoir due to the fact that it weighs more than oil. The most serious type of contamination is easy to detect.

How does water enter hydraulic systems?

Water contamination can manifest in a variety of ways:

• Condensation: The fluctuations in temperature cause water to build up within reservoirs.
• Seals that leak: Leaky seals can let water into the system.
• Storage that is not correct: Hydraulic oil stored in humid conditions is able to absorb moisture.
• Leaks from the cooler: Heat exchangers may let water seep into the oil.
• Washdowns: Cleaning equipment with water may introduce moisture.

Why is water in hydraulic oil a serious problem?

Water contamination can create a myriad of problems, such as:

1. Reduced lubrication

Water can reduce the oil's ability to lubricate moving components, increasing friction and wear.

2. Corrosion

Metal components such as pumps, valves, and cylinders may rust when exposed to moisture.

3. Oxidation acceleration

Water speeds up the oxidation process of oil, which reduces its longevity and forms a harmful sludge.

4. Cavitation

Cavitation can result from water vapor, which can cause pitting and damage to pumps.

5. Additive depletion

Water reacts with the oil additives, which reduces their effectiveness.

Signs of water contamination

Being aware of water pollution early could help to prevent major damage. Signs to look for include:

• Oil that appears cloudy or milky.
• Rusty system components
• Noise from the system has increased
• Efficiency is reduced
• Air bubbles or foaming
• Frequent filter clogging

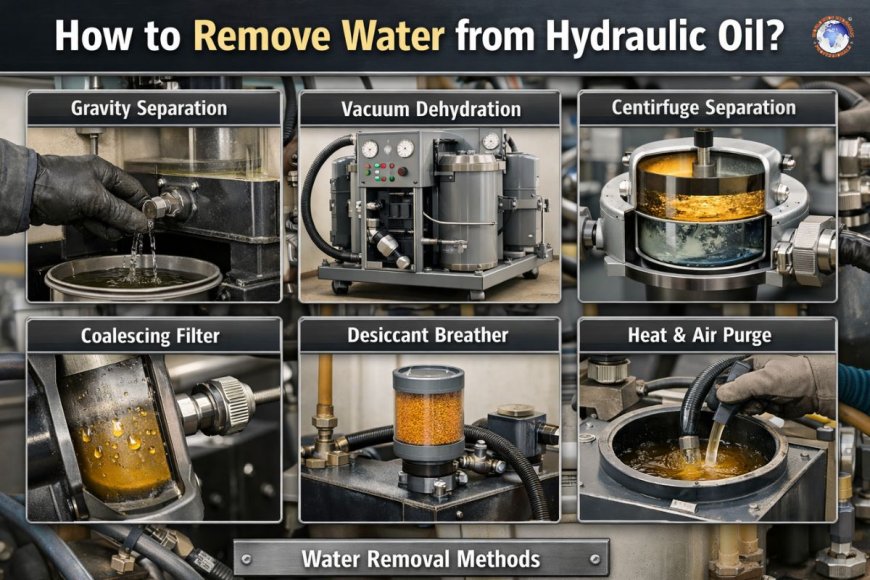

Methods to remove water from hydraulic oil

There are a variety of proven ways to eliminate the water in hydraulic oils. The selection is based on the degree and type of contamination.

1. Gravity separation

How it works

The free water accumulates near the top of the reservoir as time passes. When you drain the bottom layer, the water is able to be drained.

Best for:

• Free water removal only
• Systems that show a visible accumulation of water

Advantages:

• Simple and inexpensive
• No special equipment is needed

Limitations:

• Ineffective when dissolved or emulsified with water. Ineffective for emulsified or dissolved water.
• Time-consuming

2. Vacuum dehydration

How it works

Vacuum dehydration systems eliminate water by reducing pressure, which causes the water to evaporate at lower temperatures.

Best for:

• Emulsified and dissolvable water
• Large hydraulic systems

Advantages:

• Highly efficient
• Eliminates gases and water
• Increases the lifespan of oil

Limitations:

• Expensive equipment
• It requires a trained operator

3. Centrifugal separation

How it works

A centrifuge rotates the oil at high speeds and then separates the water according to density.

Best for:

• Water that is free and emulsified

Advantages:

• Quick and efficient
• Continuous operation is possible

Limitations:

• Ineffective for water that is dissolved.
• Maintenance is required

4. Coalescing filters

How it works

These filters blend small droplets of water into larger ones, making it simpler to separate oil from water.

Best for:

• Emulsified water

Advantages:

• Installation is easy and simple.
• Works during system operation

Limitations:

• Ineffective with dissolved water
• It requires regular replacement

5. Desiccant Breathers

How it works

Desiccant breathers take moisture out of the air that is incoming before it gets into the reservoir of hydraulics.

Best for:

• Water contamination prevention

Advantages:

• Low cost
• Installation is simple
• It will also prevent any future issues.

Limitations:

• Doesn't remove water that is already in the system.
• Requires periodic replacement

6. Heat and air circulation

How It Works

Heating the oil permits the water to evaporate and is especially effective when it is combined with airflow.

Best for:

• Light contamination

Advantages:

• Simple method
• It is possible to do this with existing equipment

Limitations:

• Risk of heating oil too much
• Ineffective for high water content

7. Chemical drying agents

How it works

Special additives are able to absorb or remove the oil from water.

Best for:

• Minor contamination

Advantages:

• Quick solution
• Simple to apply

Limitations:

• Can affect oil properties
• Not suitable for heavy contamination.

Choosing the right method

How to select the most effective method is dependent on

• Water concentration level
• Water contamination type
• Size and Complexity of the system
• Budgetary limitations

General Recommendations:

• Make use of gravity separation to get free water
• Use vacuum dehydration for severe contamination
• Make use of the coalescing filter to emulsify water
• Make use of Desiccant Breathers to prevent

Preventing water contamination

Prevention is always more effective than treatment. Here are the steps you can take to reduce water intrusion:

1. Proper storage

Conserve hydraulic oil in sealed containers in dry conditions.

2. Regular inspection

Make sure to check seals, hoses, and reservoirs frequently for leaks.

3. Use quality breathers

Install desiccant breathers to block moisture.

4. Maintain cooling systems

Examine heat exchangers to avoid water leaks.

5. Routine oil testing

Conduct regular oil analyses to find early signs of contamination.

Importance of oil analysis

The analysis of oil is an essential element of maintenance for hydraulic systems. It assists in identifying:

• Water content levels
• Oil degradation
• The presence of contaminants

Techniques like Karl Fischer titration and crackle tests are widely used to determine the presence of water in oil.

When to replace instead of treat?

Sometimes, just removing the water might not suffice. You should consider replacing the oil if:

• Contamination is very high
• The oil has significantly degraded
• Additives are depleted
• The formation of sludge is very severe.

Replacing oil is a way to ensure optimal system performance and also prevents the possibility of long-term harm to the system.

Real-world applications

Techniques to remove water are extensively used in:

• Construction equipment
• Machinery for agriculture
• Hydraulic systems for marine use
• Plants for industrial manufacturing

For instance, excavators working in moist or wet conditions are more susceptible to water-borne contaminants and gain significantly from dehydration systems that use a vacuum.

Maintenance best practices

To ensure that your hydraulic system is in top shape:

• Check the condition of your oil regularly
• Use filters of the highest quality.
• Keep operating temperatures at a safe level
• Avoid contamination during oil changes
• Train personnel on best practices

Hydraulic oil contamination with water is a serious problem that can cause malfunctioning equipment, decreased efficiency, and higher maintenance costs. Understanding the different types of water contamination and implementing the appropriate methods for removal is crucial to maintaining the health of your system.

From gravity separation for simple purposes or advanced vapour dehydration, each technique has its position based on the severity of the contamination. The most efficient method is to combine removal methods along with preventative measures.

If you invest in regular maintenance and monitoring as well as monitoring for contamination, you will substantially extend the life of your oil hydraulic system and guarantee the reliability of your system for the years to follow.
