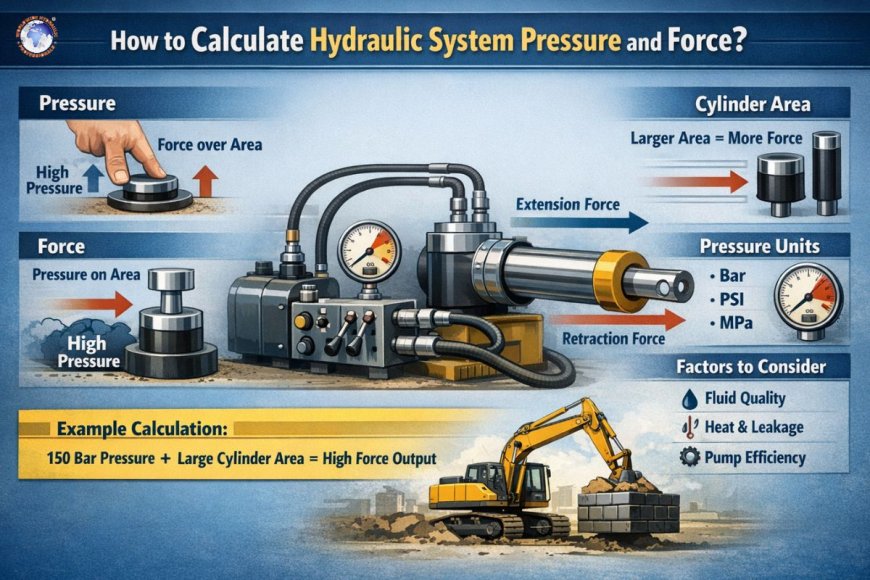

How to calculate hydraulic system pressure and force?

Hydraulic systems are at the heart of modern machinery - powering every aspect of construction machinery to agricultural tractors, to industrial presses, as well as automotive brake systems. Underlying these systems is an easy but powerful idea: the capability to transmit the force via fluid pressure.

Knowing how to calculate the hydraulic force and pressure is crucial for technicians, engineers, and operators of equipment. If you're developing the system, resolving problems with performance or efficiency, understanding these calculations will give you a huge advantage.

In this complete guide, we'll break down the most important concepts and explain them in easy phrases, and then walk you through practical examples, without equations, so you'll be able to use these concepts in real-world situations.

Understanding the basics of hydraulics

Hydraulic systems are based upon Pascal's Law, which states that the pressure applied to a fluid is equally distributed throughout the entire direction. This allows a tiny amount of force to produce an enormous output force, which makes hydraulics extremely efficient for applications that require a lot of force.

The typical hydraulic systems comprise:

• A pump (creates flow)
• Fluid (transmits energy)
• Valves (control flow and direction)
• Actuators such as motors or cylinders (produce motion)

To fully comprehend how these parts interact, you must understand two fundamental factors:

• Pressure
• Force

What is hydraulic pressure?

Pressure refers to the amount of force applied to an area. Consider this:

• If you place your finger against an object, the force isn't as great because the force is low.
• If you apply the same pressure through a needle that is sharp, the pressure will be greater because the area of contact is smaller.

Key idea:

• More force - more pressure
• A smaller area, but higher pressure

Example:

Consider a piston working under the force of an extremely small area. The smaller the area, the more tension inside the system of hydraulics.

What is hydraulic force?

Force is the outcome that you experience when pressure is applied to an object. For hydraulics, it is the process that is actually happening, lifting and pushing or compressing objects.

Key idea:

• Greater pressure = more force
• More surface area means greater force

Example:

In the event that the pressure applied is equal to a bigger piston, it is likely to generate more force than as compared to a smaller one.

Understanding cylinder size and area

Hydraulic cylinders tend to be circular, and their shape is a significant factor in determining pressure and force.

Important points:

• Larger cylinders produce more force with the same pressure
• Smaller cylinders require greater pressure to generate the same force

Example:

A larger piston can carry more weight because the pressure is exerted across a greater surface.

Step-by-step hydraulic calculation (without equations)

Let's look at an example from a real-world perspective using simple steps.

Problem:

There is one of the hydraulic cylinders that:

• A diameter of around 80 mm
• A system with a pressure of 150 bar

Step 1: Understand the cylinder size

A bigger diameter means that there is a larger cylinder.

Step 2: Consider the system pressure

The system pressure is a measure of how hard the fluid has been pushing.

Step 3: Determine the force output

When high-pressure liquid pushes against a fairly large piston, it creates an intense force.

Final insight:

This setup can generate a force sufficient for tasks that require a lot of force, such as lifting heavy machinery or operating construction equipment.

Extension vs retraction force

In double-acting hydraulic cylinders, the force is different in both directions.

Extension (pushing out):

• The piston's surface is fully utilized.
• Produces maximum force

Retraction (pulling n):

• A part of the area is taken up by the rod of the piston.
• Produces less force

Practical impact:

This is crucial for machines such as:

• Excavators
• Loaders
• Hydraulic presses

Pressure units and common ranges

The pressure of hydraulics is measured using units such as:

• Bar
• Pascal
• PSI

Typical pressure ranges:

• Light-duty systems 50-100 bar
• Medium-duty systems 150-300 bar
• Systems for heavy-duty 300+ bar

Understanding these types of ranges can help you select the correct components to operate safely.

Factors affecting hydraulic pressure and force

1. System losses

In real-world systems, it is not always possible for pressure to be converted into a force that is useful. Losses occur due to:

• Friction
• Internal leakage
• Heat

2. Fluid quality

Fluids that are contaminated or degraded could:

• Reduce efficiency
• Cause pressure drops
• Damage system components

3. Temperature

Higher temperatures may thin the fluid, which reduces the capacity to hold the pressure efficiently.

4. Pump efficiency

A pump that is not performing properly may not be able to deliver the pressure required, which can reduce system output.

Practical applications

1. Construction equipment

Hydraulics are used by machines like excavators to create a huge digging force.

2. Hydraulic presses

In manufacturing, it is used to form or make materials more compact.

3. Automotive systems

Hydraulic brakes boost the force of stopping vehicles to stop them efficiently.

4. Agriculture

Tractors depend on hydraulics to move and control the implements.

Common mistakes to avoid

1. Ignoring unit consistency

Utilizing mixed units could cause incorrect calculations as well as inadequate design of the system.

2. Forgetting rod size

When using double-acting cylinders, you must be aware of the rod's diameter when calculating the force of pulling.

3. Overlooking losses

Real-world performance can be slightly less than the theoretical figures.

4. Misunderstanding the size impact

The bigger cylinders won't raise pressure; they boost the force.

Tips for accurate calculations

• Always ensure that you are using the same measurement units.
• Use precise cylinder dimensions
• Make sure to include a margin of safety in the calculations
• Think about the efficiency of your system (usually not more than 100 percent)

Advanced considerations

Flow Rate and Speed

In the same way that pressure determines how much force is created, flow rate is the determinant of the speed at which the system moves.

• Faster movement, higher flow
• Slower movement - lower flow

Power in hydraulics

The power of a system is dependent on flow and pressure. A system that has high pressure, but low flow, can produce a powerful force, but be slow to move.

Real-world scenario

Imagine creating a hydraulic lift that can raise a heavy weight.

• If the pressure available is not enough, raise the cylinder's size to create more force.
• If the space isn't enough, it may be necessary to use a greater pressure.

The equilibrium between size and pressure is a crucial aspect of the design of hydraulic systems.

Calculating the hydraulic force and pressure doesn't necessarily require complicated equations. When you understand the connections between pressure, force, and area, you'll be able to calculate accurate estimates and make more informed decisions.

The main takeaways from this are:

• The force exerted depends on the way it is applied to an area
• Force is a function of the pressure and size of the surface.
• The larger cylinders generate more force
• Real systems will always suffer from efficiency loss

If you're working with industrial machinery, construction equipment, or agricultural equipment, these concepts can help you plan to troubleshoot and improve hydraulic performance in a safe manner.
