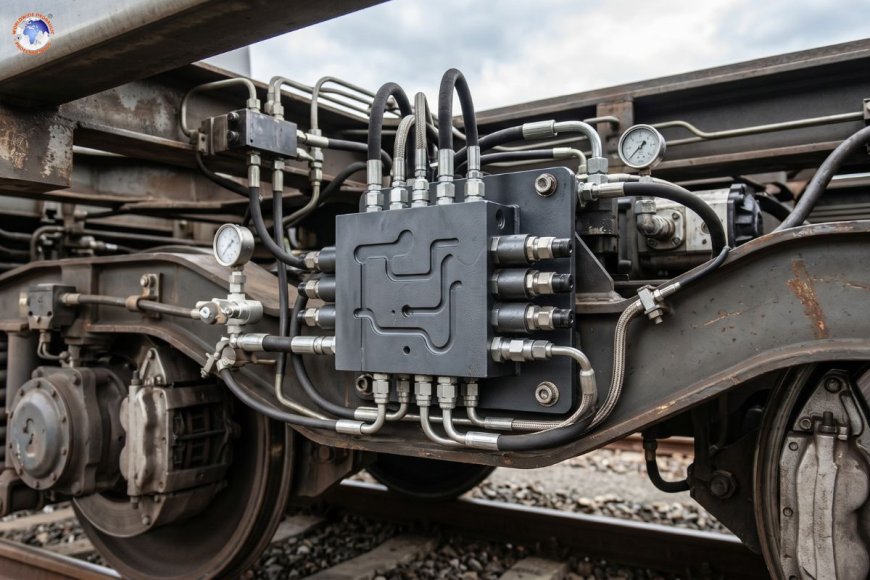

What role do manifolds play in hydraulic rail system design?

Hydraulic systems play an essential part in modern railways, driving every aspect of braking systems, adjustment of suspensions, maintenance equipment, and door operation. In these systems, manifolds are often overlooked but are vital to ensure the safety and efficiency of your system, as well as the reliability. A well-designed hydraulic intake manifold serves as a central control hub that directs the flow of liquid between valves, pumps, actuators, and other components.

This blog examines the vital importance of manifolds in the design of hydraulic rail systems and their advantages, as well as their designs, types, and how they impact the general performance and efficiency of the rail infrastructure.

Understanding hydraulic manifolds

A hydraulic manifold can be described as a precisely engineered block - typically composed of aluminum, steel, or ductile iron. It is comprised of an internal network of channels. These channels link various hydraulic components, such as the valve, sensors for pressure and flow regulators, to form an integrated unit.

Instead of connecting components using long hoses and pipes, manifolds combine these connections into one compact unit. In rail systems in which space, safety, and dependability are the most important factors, the integration of manifolds can provide important advantages.

Importance of hydraulic systems in rail applications

Before you dive into manifolds, it is important to be aware of the places and areas where hydraulics are utilized in railways:

• Braking mechanisms in locomotives and trains
• Suspension and level systems for the comfort of the passenger
• Door actuation systems in coaches
• Panograph control systems are used for electric trains
• Track maintenance equipment like ballast regulators, tamping equipment, and tamping machines
• Systems for signaling and switching

All of them depend on controlled hydraulic pressure. Manifolds are essential to controlling pressure promptly.

Core functions of manifolds in rail systems

1. Fluid distribution and control

The principal purpose of a manifold is to disperse hydraulic fluid out of the pump into a variety of actuators before returning it to the reservoir. In the rail system, one pump could be required to run several components at the same time. The manifold will ensure that each part is receiving the right stream and the appropriate pressure.

It also includes the directional control valves, as well as pressure relief valves and flow control valves that allow precise control of the flow pathways. Centralized control is essential to ensure synchronized operation for coordinated braking across several train cars.

2. Space optimization

Maintenance equipment and rail vehicles typically require a limited space for installation. Traditional hydraulic systems with a lot of pipes can be bulky and inefficient.

Manifolds dramatically minimize the need for tubing externally by incorporating passageways for flow within one block. The compact design allows engineers to install complex hydraulic systems in tight spaces. This is particularly important in modern high-speed trains, where every centimeter counts.

3. Enhanced system reliability

Every pipe or hose connection within a hydraulic system could be a possibility of a leak. Leaks do not just reduce the efficiency of the system, but they can also be a serious risk to safety.

By limiting connections to external sources, manifolds decrease the chance of leaks and malfunctions. This is crucial for railway applications, as the system's failure could cause operating delays or safety issues.

Furthermore, they are built to withstand pressures that are high and extreme environmental elements, which makes them suitable for rail environments with high temperatures, vibrations, and exposure to moisture and dust.

4. Improved maintenance and troubleshooting

Hydraulic manifolds reduce the complexity of system layout, which makes maintenance easier. Instead of running several hoses through the system, technicians are able to examine a central system.

Modern manifolds usually have sensors and diagnostic ports that let engineers monitor the temperature, pressure, and flow in real-time. This technology allows for proactive maintenance, which can reduce the time between maintenance and prevent unexpected problems.

5. Energy efficiency

A fluid flow that is efficient within manifolds reduces pressure losses due to hoses that are long and fittings with multiple connections. This boosts the overall efficiency of the system by reducing the energy needed to run hydraulic pumps.

In rail systems where efficiency in energy use directly affects operational costs as well as efficiency in the environment, this benefit is especially important.

Types of hydraulic manifolds used in rail systems

1. Monoblock manifolds

They are single-piece pieces with internal passages that are directly machined to the base. They are extremely robust and are suitable for high-pressure applications, such as brake systems.

2. Modular manifolds

Modular manifolds comprise stacks of sections that allow for flexibility and customization. They are typically employed in rail maintenance machines where the requirements of the system may differ.

3. Cartridge valve manifolds

The manifolds contain valves made of cartridges, which are placed in spaces inside the block. They are flexible and frequently utilized in rail systems of today because of their small size and easy maintenance.

Design considerations for rail hydraulic manifolds

Manifold design to be used in rail applications requires careful design and engineering. Important considerations include:

1. Pressure and flow requirements

Rail systems are often operating under pressures that are high. Manifolds must be designed to withstand the pressures without deformation or failure. The flow paths should also be designed to guarantee the same flow of fluid.

2. Material selection

The materials you choose should be in accordance with their strength, weight, and environmental resistance. Aluminum is a lightweight material that is resistant to corrosion, which makes it ideal for trains that transport passengers, whereas steel has a higher strength and is ideal for applications that require a lot of force.

3. Thermal management

Hydraulic systems generate heat during operation. Manifolds should be designed to disperse heat efficiently to avoid degrading fluids and to ensure the system's performance.

4. Vibration resistance

Rail environments have continuous vibrations and shock loads. Manifolds have to be durable enough to ensure the integrity of the structure and avoid internal cracking or leakage.

5. Integration with electronic controls

Modern rail systems are increasingly incorporating electro-hydraulic control systems. Manifolds need to accommodate sensors, solenoids, and electronic control units that allow remote monitoring and automation.

Applications of manifolds in rail systems

1. Train braking systems

Hydraulic manifolds guarantee an exact distribution of the force over several wheels and vehicles. They incorporate safety features, like pressure relief valves that prevent excessive pressure.

2. Door control systems

Train doors for passengers rely on hydraulic actuators to ensure seamless and stable operation. Manifolds manage the closing and opening sequences, making sure security and synchronization.

3. Suspension and ride control

Hydraulic suspensions adjust the height of the ride as well as absorb the impact of shocks. Manifolds regulate the flow of fluid to ensure the stability of the vehicle and ensure comfort for passengers.

4. Track maintenance equipment

Machines such as ballasts and tampers regulators make use of complicated hydraulic circuits. Manifolds can simplify these systems, making them more efficient and easy of operation.

5. Pantograph systems

Pantographs in electric train systems keep the connection to overhead lines. Hydraulic manifolds manage the raising and lowering mechanism and ensure that the electrical connection is consistent.

Advantages of using manifolds in rail systems

• Simpler system
• Lower chance of failures and leaks
• Lightweight and compact design
• Better energy efficiency
• Diagnostics and maintenance are simplified.
• Improved safety and reliability

Challenges and limitations

While manifolds can provide many benefits, they also have issues:

• Design with a higher initial quality and manufacturing costs
• The requirements for complex machining
• Flexible once produced (in Monoblock styles)
• It is essential to have precise engineering to avoid internal flow limitations

But these problems are usually offset by longevity and reliability advantages.

Future trends in hydraulic manifolds for rail systems

The future of hydraulic manifolds for railway applications is being determined by advances in technology:

1. Smart manifolds

The integration with sensors as well as IoT technology allows for monitoring in real-time as well as predictive maintenance. The "smart" manifolds can detect abnormalities and alert the operator before problems occur.

2. Additive manufacturing

3D printing permits greater complexity of internal geometries, improving flow paths and cutting weight. This technology will revolutionize design over the next few years.

3. Integration with hybrid systems

As rail systems shift towards hybrid and electrification, hydraulic systems are now being connected to electric control. Manifolds play an important part in connecting these two technologies.

4. Improved materials

Advanced alloys and composites are being created to improve the durability of materials, decrease weight, and enhance corrosion resistance.

Hydraulic manifolds are the cornerstone of the modern rail design. They centralize the control of fluids, reducing complexity and increasing their reliability, and they allow for effective operation of vital railway operations like suspension, braking, and maintenance equipment.

As technology for rail is evolving, the manifolds will be more sophisticated, with smart features and modern manufacturing methods. For designers and engineers to understand the significance of manifolds is vital in the development of more efficient, safer, and more reliable rail systems.

In a sector where accuracy and reliability are essential, the simple hydraulic manifold is an essential part of the equation, quietly ensuring every trip is run smoothly and without a hitch.
