Efficient non-explosive rock breaking for urban and sensitive areas

In urban areas, close to historic structures, or next to vulnerable infrastructure, using traditional blasting techniques to excavate rock is usually dangerous and disruptive. Furthermore, it is not permitted. Urban civil engineers, urban planners, and construction professionals often face the problem of breaking rocks in places where noise, vibration, and safety risk need to be reduced. This has resulted in the increasing use of non-explosive methods for breaking rocks that are effective and precise. They are also eco-friendly.

In this blog, we look at the variety of non-explosive techniques that are available to remove rocks, evaluate their strengths and weaknesses, and offer advice on how to select the best solution for sensitive and urban applications.

Why are non-explosive methods important?

Traditional blasting, which is a controlled application of explosivescan lead to:

• High levels of noise

• Ground vibration

• Air overpressure

• Flying debris

• Regulatory challenges

In urban areas with dense populations, these effects could damage adjacent structures, disrupt residents, and cause disruption to services. Particularly sensitive sites such as museums, hospitals, and subway tunnels require the least amount of disturbance. Because of this, the non-explosive rock breaking practice isn't only a choice -- in a lot of jurisdictions, it's a legal requirement.

Key non-explosive rock breaking technologies

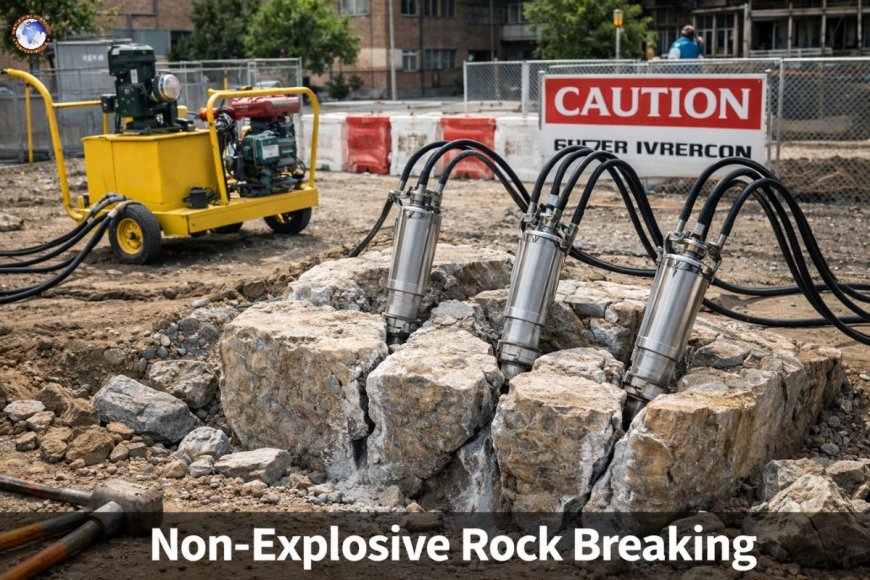

1. Hydraulic rock splitters

Hydraulic rock splitters use high-pressure hydraulic forces to split rock along the desired lines.

How they function

A set of wedges is placed into holes that have been drilled within the rock. Hydraulic pistons are then used to expand the wedges, creating a lateral force that causes the rock to break.

Advantages

• Low Vibration and Noise

• Precise splitting

• Minimal dust

• is effective for boulders and big blocks

Best uses

• Urban tunneling

• Excavation in the foundations

• Controlled demolition of the rock faces

Hydraulic splitters are excellent when controllable, predictable breaking is required, without disrupting neighbouring structures.

2. The expansive grout (Chemical splitting agents)

The Expansive Grout is a chemical substance that expands when mixed with water and then poured into holes that have been drilled, putting pressure on the rock, causing cracks.

How does it do it?

The grout, which is typically composed of calcium oxide and similar compounds -- expands when it hydrates, slowly creating force within the rock. After a couple of hours, the stress increases until the stone fractures along weak lines.

Advantages

• virtually silent operation

• No vibration

• Non-toxic and safe mix

• Ideal for rock with irregular shapes

Limitations

• A slower process (fracturing can take a long time)

• Needs exact hole drilling and a detailed plan

Best uses

• Near the utilities

• Inside buildings

• Projects with very strict limitations on noise or vibration

Expansive grouts offer a sophisticated solution when conventional mechanical methods aren't practical.

3. Diamond wire sawing

Diamond wire cutting employs an unlooped steel cable that is embedded with industrial diamonds that cut through the rock.

How does it do it?

The diamond-coated wire is woven around the rock section to be taken away. When the wire is moved, the diamond's abrasive grind rocks, cutting them in a clean manner.

Advantages

• Cut precise profiles

• Low-vibration

• Useful in restricted spaces

• Dust-free (with the ability to suppress water)

Best uses

• Large slabs of stone are cut

• The removal is controlled of the rock sections that are adjacent to the infrastructure

• Bridge abutments and pier changes

This technique is used extensively for urban demolition and quarrying projects where precision is crucial.

4. Roadheaders and mechanical excavators

Roadheaders are mechanical excavation equipment with the ability to rotate a cutting head, which breaks the rock into pieces.

How they are used?

Cutting heads powered by electricity move and hammer on the rock, breaking it into pieces. The material that is broken is taken away by conveyors or loaders.

Advantages

• Permanent operation

• Great for soft to medium-hard rock

• Can be controlled remotely

Limitations

• It is less effective in very hard rock.

• Produces dust and vibration (though it is still less than blasting)

Best uses

• Tunneling in mixed geology

• Urban cut-and-cover excavation

• Clearing of utility corridors

Heavy mechanical excavators can provide an ideal balance of strength and the ability to control.

Comparing non-explosive methods

This analysis shows the fact that no one approach is suitable for every situation. The selection is contingent on the project's goals, such as time and noise, precision, or environmental sensitivity.

The right methodology in urban projects

Deciding on the most effective rock-breaking strategy requires a thorough analysis of several elements:

1. Closeness to sensitive structures

The use of hydraulic methods and large grouts is usually preferred near constructions as well as underground utility lines.

2. Project timeline

If scheduling is essential with moderate noise, then mechanical excavators are a good choice. If you have no pressure on the schedule, but with strict noise limits, a large grout can be used.

3. Rock characteristics

Extremely hard Granite may be better suited for diamond wire cutting or hydraulic splitting, while softer sedimentary rocks is able to be handled with ease by roadheaders.

4. Environmental and regulatory factors

Local ordinances can limit the frequency of noise, vibration, or impacts on air quality. Make sure you check regulations prior to the process of planning.

Case studies: Non-explosive success stories

Urban subway expansion

In a crowded metropolitan area, which was preparing to build a subway extension, blasting was not permitted because of nearby hospitals and historical structures. Engineers utilized a combination of diamond-wire sawing to cut rock in advance of excavation and hydraulic splitting to break up large blocks. This resulted in a clean excavation that caused minimal impact on the city fabric.

Bridge abutment preparation

In order to construct a new bridge, the rock was to be removed from the highway that was in use. Expanded grout was selected for its quiet operation, which allowed the work to continue for a long time without disrupting traffic or businesses. Although it is slower than blasting, this method was safe and in conformity with noise ordinances.

Reducing dust, noise, and vibration

Even non-explosive methods can cause disturbance. Here are some ways to minimize the impact:

Suppression of water suppression

Cutting with water or drilling will dramatically decrease the dust that is blown into the air.

Sound barriers

Temporary acoustic shielding can help to reduce noise, particularly in sensitive environments such as schools and hospitals.

Pre-drilling analysis

The careful study of geological data allows for the best holes along with splitting methods, thus reducing unnecessary cutting or drilling.

Monitoring systems

Set up noise and vibration monitoring devices on structures to ensure that the levels are within acceptable limits.

Safety and training aspects

Even if there isn't the use of explosives, breaking rock is a process that requires the use of heavy equipment and poses a risk:

• Operators should be educated on the use of machines.

• Equipment for protection (PPE) such as helmets, eye, and ear protection is vital.

• Safety plans for sites that are rigorous should regulate access to the site and be aware of dust and the movement of equipment.

• Regular maintenance of equipment ensures consistency in performance and avoids any malfunctions.

Safety isn't a choice; it's a requirement for getting more efficient.

The future of the non-explosive rock breaking

Innovation is constantly improving the performance and sustainability of

Controlled and automated systems

Robotic cutters and splitters reduce human exposure to dangerous environments and increase the accuracy of machines.

Improved expansive materials

Studies into more rapid-acting and reliable chemical splitting agents will broaden their range of applications.

Laser-assisted rock cutting

In the beginning, high-power laser systems are still in the development phase; they could someday provide contactless cutting that has minimal vibration.

These advancements point to the future where breaking rocks is less risky and quieter, as well as connected to smart construction techniques.

Breaking rocks with no explosives is no longer an exception; it's essential for urban and fragile areas. Modern non-explosive technology, such as hydraulic splitting, extensive grout diamond wire cutting, and mechanical excavation provide engineers with powerful tools for managing the removal of rocks with accuracy, security, and with the least environmental impact.

When they understand each method's strengths and drawbacks and strengths, project planners can create solutions that meet regulatory requirements as well as protect nearby structures and provide results on time. If you're planning to expand a subway, make the foundation for a bridge, or remove rock from the residential area, efficient non-explosive rock breaking is the key to safe and efficient construction.
