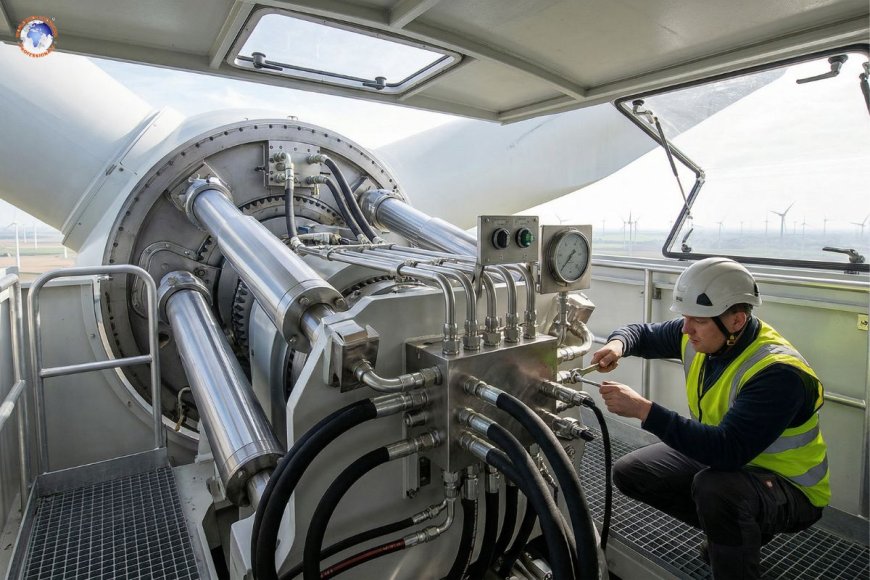

How hydraulics rule wind turbine systems?

Wind energy is rapidly becoming one of the main components of the transition to renewable energy. Towering turbines, whether on the sea or on land, are often considered to be purely electrical devices that convert wind power into electricity. But, beneath their smooth, precise, and even control is a force which makes their operation safe, safe, and efficient hydraulics.

Hydraulic systems play an essential part in modern turbines, tackling everything from controlling blade pitch to braking, yaw, and movements. With no hydraulics in place, wind turbines will struggle to adjust to changes in wind conditions or defend themselves from damage, or keep their performance at optimum. This blog explains the ways that hydraulics "rule" wind turbines and delves into their function and components, their advantages, and the future of.

The role of hydraulics in wind turbines

Wind turbines are operating in dynamic conditions. The speed, direction, and turbulence may alter rapidly, which requires immediate mechanical adjustments. Hydraulics are uniquely equipped to deal with these needs since they can:

• High force in small systems
• Controlling precisely under loads of varying magnitudes
• Dependable performance even in the most difficult conditions

In wind turbines, hydraulics are used primarily in three areas of critical importance:

1. Blade pitch control
2. Yaw control systems
3. Braking mechanisms

Each of these roles is essential to ensure efficient energy production as well as the safety of turbines.

Blade pitch control: the core of efficiency

One of the primary applications for hydraulics within wind turbines control of the pitch of the blade. The pitch system regulates the angle of turbine blades in relation to the wind.

The importance of pitch control

• When winds are low, blades are bent to maximize energy.
• When winds are high, the blades are adjusted to limit overstress.
• In extreme weather conditions, blades may be feathered (turned away from the direction of the wind) to stop the rotation.
• How do Hydraulics Help Control Pitch?

Hydraulic cylinders serve to turn each blade with precision. The systems operate on the basis of hydraulic pumps and are controlled by sophisticated electronic systems that track the weather conditions in real-time.

Benefits of hydraulic pitch systems

• Large capacity, high torque blades
• The smooth and precise adjustments
• The ability to hold the position under a load, even without constant power

This is particularly important when it comes to large offshore turbines, where the blades may exceed 80 meters long and require a massive force to move them.

Yaw control: face the wind

For a turbine to function efficiently, it must remain in the direction of the wind. This is accomplished through the yaw system that turns around the nacelle (the housing in the upper part of the tower).

Hydraulic yaw systems

Hydraulics control the yaw motors, which ensure that the turbine is aligned with the direction of the wind. Sensors monitor wind shifts, and the hydraulic system then activates motors or cylinders to shift the nacelle.

Benefits

• A strong rotational force is required for nacelles with heavy weights
• A smooth movement, which reduces stress on the structural
• Reliable operation even in the most extreme conditions of weather

If yaw control was not effective, turbines could lose effectiveness and suffer from unbalanced loads, leading to faster wear and injury.

Hydraulic braking systems ensure safety

Safety is the top priority in the operation of wind turbines. If wind speeds are excessively high or maintenance is needed, turbines should be shut down swiftly and safely.

Different types of braking

1. Aerodynamic brake is achieved by the adjustment of the blade pitch
2. Mechanical brakes typically driven by hydraulics
3. Hydraulic Brakes

Hydraulic systems apply pressure to brake discs and bring the rotor to a stop. They are made to function in all circumstances of emergency, such as power outages.

Features that are important:

• Rapid response time
• Force of braking high
• Safety-in-the-box operation (spring-applied with hydraulically released in a variety of models)

This allows turbines to be shut off safely in any conditions.

Essential components that make up hydraulic systems in turbines

The hydraulic systems of wind turbines are composed of various interconnected components:

1. Hydraulic pump

The pump produces flow by turning electrical energy into hydraulic power. It is usually powered through an electric motor.

2. Hydraulic cylinders

These convert hydraulic pressure to linear motion, which is used to control the adjustment of blade pitch and brake systems.

3. Valves

Control valves regulate the flow and the pressure of hydraulic fluids, ensuring exact operation.

4. Accumulators

Accumulators are used to store hydraulic energy and also provide power backup. They are vital in emergencies, such as the ability to move blades to a secure place during power outages.

5. Hydraulic fluid

The fluid is the energy source that circulates across the entire system. It has to perform well with temperature fluctuations and also be resistant to the effects of contamination.

Why are hydraulics often chosen over electric systems?

In recent times, electric pitch systems have gained popularity, but hydraulics remain the mainstay of massive wind turbines. Here's why:

1. High power density

Hydraulic systems can produce large forces with relatively tiny components, which makes them perfect for handling massive turbine blades.

2. Robustness

Hydraulics are able to perform in harsh conditions, such as offshore areas that have the highest humidity and salt exposure, and temperature variations.

3. Reliability

Hydraulic systems maintain the position of the system without constant energy input, thus reducing wear and energy consumption.

4. Emergency capability

With accumulation systems, hydraulic systems can work even if power is interrupted, a crucial security feature.

Problems with hydraulic systems

Despite their benefits, they also have problems:

1. Maintenance requirements

Hydraulic systems require frequent maintenance to avoid contamination, leaks, and wear on components.

2. Fluid leakage

Leaks can create environmental problems, especially in offshore facilities.

3. Temperature sensitivity

Fluid properties in hydraulic fluids may alter with temperature, which can affect the performance.

4. Complexity

As opposed to solely electric systems, hydraulics have more parts and require specialist skills for servicing.

Innovative technologies within wind turbine hydraulics

The industry of wind energy is constantly evolving, and hydraulic systems aren't an exception. Recent developments include:

1. Electro-hydraulic systems

By combining electronic control with hydraulic energy, the systems can provide greater precision and effectiveness.

2. Environmentally friendly fluids

The biodegradable fluids for hydraulics are currently being designed to minimize environmental impacts.

3. Smart monitoring

Sensors and IoT technology allow the monitoring of hydraulic systems in real-time and help identify issues before they become serious.

4. Compact integrated units

Modern turbines employ small Hydraulic power units (HPUs) that combine valves, pumps, and reservoirs into one unit, thus reducing the size and complexity.

Hydraulics are used in offshore wind turbines

Offshore wind farms present unique challenges:

• Weather conditions are harsh
• Access to maintenance is not always easy.
• The costs of operation are high

Hydraulic systems are extremely beneficial in these settings due to their long-lasting and dependable nature.

The key benefits of offshore

• Protection against corrosion when correctly created
• The ability to lift huge loads
• Emergency operation with reliability

Hydraulics make sure offshore turbines are able to run continuously and with minimal interruptions, which is essential for maximising the energy output.

The future of hydraulics in wind energy

As wind turbines become larger and more sophisticated, their hydraulic role is likely to expand rather than decrease.

Hybrid Systems

Future turbines could use hybrid systems that mix hydraulics with electric drives to achieve a balance between power and efficiency.

Automatization Increasing

Advanced control systems allow components in hydraulics to respond efficiently to changing conditions of the wind.

Sustainability Priority

The development of leak-free designs and environmentally-friendly fluids will help tackle environmental concerns.

Digital Integration

Predictive maintenance based on AI, along with data analytics, will increase the system's reliability and decrease costs.

Hydraulics may not be among the most obvious components of a wind generator, but they are definitely an important element. From changing blade angles to aligning the turbine to the wind, and to ensuring secure closing, hydraulics permit turbines to run effectively and safely in some of the most difficult conditions on Earth.

Their ability to deliver top precision, lqw@, and dependability makes them indispensable, particularly for offshore and large wind turbines. Although new technologies are emerging, hydraulics still "rule" wind turbines by delivering unbeatable performance when it is most important.

As the increasing demand for renewable energy rises, so does the need for robust and efficient hydraulic systems, quietly powering the massive machines that harness wind power.
