Oil coolers in hydraulic systems: types and benefits

Hydraulic systems form the basis of numerous industries, from agricultural and construction to marine and manufacturing. When it comes to powering tractors, excavators, presses, or automated lines for industrial use, they depend in large part on hydraulic oils to transfer energy, lubricate the components, and also disperse heat. But, since hydraulic systems operate at high demands and pressures, they will eventually produce heat. If not managed properly, the heat generated can affect the performance of the system, cause damage to parts, and shorten the life span of components.

Oil coolers play an essential function. Oil coolers are vital elements that are designed to control the temperature of the hydraulic fluid to ensure the highest performance and reliability. In this article, we'll look at the different kinds of coolers for oil that are used for hydraulics, how they function, and the main benefits they bring.

The importance of temperature control in hydraulic systems

Before getting into the different types of oil coolers, it is crucial to comprehend why temperature control is important.

Hydraulic systems generally function best in temperatures of 40 °C - 60 °C. If temperatures go beyond the range, a variety of issues could arise:

• Lower viscosity of the oil: High temperatures thin the oil, decreasing its capacity to protect and lubricate components.
• More wear and tear: Metal-to-metal contact becomes more likely, which leads to more rapid degradation of components.
• Damage to seals: Overheated temperatures could cause seals to get harder or crack, which can result in leaks.
• Oxidation of oil. Heating accelerates the breakdown of oil, which results in varnish and sludge that can block components.

Oil coolers can help avoid problems by ensuring the temperature of operation is maintained at a constant level.

How do coolers for oil work?

Coolers for oil work by transferring heat generated by the hydraulic fluid to another medium, usually water or air. As hot oil moves through the cooler, the heat is absorbed by the heat exchanger, thus lowering the temperature of the oil prior to when it is returned into the system.

The effectiveness that an oil cooler can provide is dependent on factors like the area of the cooler, its flow rate, and the temperature differential between the coolant and the oil.

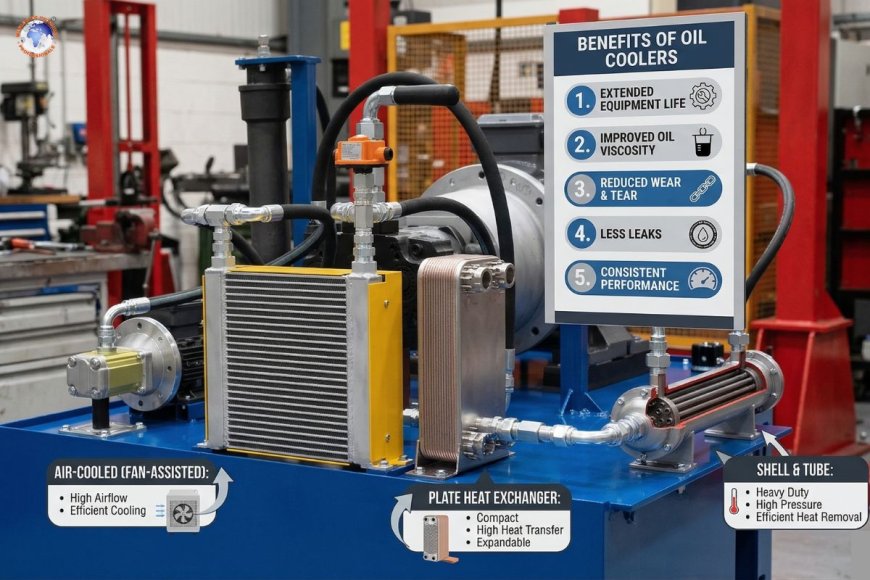

The types of oil coolers available in hydraulic systems

The classification of oil coolers is according to the cooling medium they use. The two primary categories are water-cooled and air-cooled oil coolers. There are several types under each category.

1. Air-cooled coolers for oil

Coolers for oil that are air-cooled make use of ambient air to help eliminate heat from hydraulic oil. The coolers are the top of the line in terms of frequently utilized coolers due to their ease of use and simplicity to install.

A) Nature-based air cooling (passive coolers)

These systems are based on natural airflow, without the use of a fan. They are generally employed in low-power or low-heat applications.

Advantages:

• No power consumption
• Low maintenance
• Simple design

Limitations:

• Limited cooling capacity
• Relying on the environmental conditions

B) Forced air cooling (fan-assisted coolers)

These coolers utilize hydraulic or electric motors to boost airflow through the heat exchanger, thereby increasing the efficiency of cooling.

Advantages:

• Better cooling efficiency than passive systems.
• Ideal in moderate-to high temperatures
• Compact and readily available

Limitations:

• It requires power to operate the fan.
• Noise generation
• Regular maintenance of the fan components

2. Water-cooled coolers for oil

Water-cooled coolers for oil use water as a cooling medium. They are usually utilized in areas where greater cooling efficiency is needed.

A) Shell and Tube Heat Exchangers

This kind of structure is comprised of a set of tubes that are enclosed in the cylindrical shell. Hydraulic oil is circulated through the shell, and cooling water runs into the tubes (or in reverse).

Advantages:

• High performance in heat transfer
• It is durable and suitable for use in heavy-duty applications
• Manages high pressure and temperatures

Limitations:

• It requires a continuous supply of water.
• Larger footprint
• The potential for corrosion and scaling

b) Plate heat exchangers

Plate heat exchangers make use of thin metal plates that are stacked to form channels for water and oil flow.

Advantages:

• Compact design
• High heat transfer effectiveness
• Easy to increase capacity by incorporating plates

Limitations:

• Highly sensitive to contamination
• Requires clean fluids
• Maintenance may be more complex

C) Brazed plate coolers

They are a variant of heat exchangers for plates where plates are joined for life by brazing.

Advantages:

• Compact and efficient
• There are no gaskets to be used.
• Lower maintenance

Limitations:

• Not readily serviceable
• Flexible expansion options are not as flexible.

3. Hybrid coolers for oil

Hybrid systems mix water cooling and air or employ advanced technology like the thermostatic controls. These systems are employed in specific applications where exact temperature control is required.

The advantages of oil coolers within hydraulic systems

Oil coolers aren't an accessory component; they are essential to maintaining the health of your system and maximizing its efficiency. Let's take a look at the advantages they bring.

1. Increased system efficiency

In order to maintain the optimal temperature of oil Coolers for oil, ensure that the hydraulic fluid maintains its optimal viscosity. This helps to ensure efficient power transmission and also reduces energy consumption.

2. Extended equipment lifespan

Overheated temperatures accelerate wear on the components like valves, pumps, and seals. Oil coolers decrease thermal stress and extend the lifespan of these parts, reducing the time to repair.

3. Improved oil life

The high temperatures can cause oil oxidation, which leads to the formation of sludge and lower lubrication quality. In order to keep temperatures under control, oil coolers greatly extend the lifespan of hydraulic oils.

4. Lower maintenance costs

With lower wear and slower degradation of oil, systems will require less maintenance. This results in lower expenses for the replacement of oil as well as repairs to components and system maintenance.

5. Improved reliability of operation

The fluctuation in temperature can result in unpredictability in system performance. Oil coolers offer steady operating conditions that ensure the system's reliability and predictability.

6. Protection against overheating

For continuous-duty or high-loading applications, overheating can be an extremely risky situation. Oil coolers serve as an extra layer of protection, stopping the possibility of system failure.

7. Energy savings

The efficient cooling process reduces the requirement to use a lot of energy to offset losses due to heat. This results in improved overall efficiency of energy.

Aspects to take into account when choosing an oil cooler

The right choice of oil cooler is crucial to getting maximum performance. Here are some important aspects to think about:

1. Heat load

Find out how much heat has to be lost. This will depend on the pressure of the system flow rate, pressure, and the operating conditions.

2. Cooling medium distribution

• Air-cooled systems are great when water isn't readily available.
• Water-cooled systems are ideal for cooling with high capacity.

3. Space constraints

Smaller systems might require brazed plate or plate coolers, whereas larger configurations can fit tube and shell designs.

4. Conditions in the environment

Humidity, dust, and temperature of the ambient can affect the cooling performance of coolers. For instance, air-cooled systems might struggle in hot climates.

5. Maintenance requirements

Take into consideration the ease of access, cleaning, and spare parts availability when selecting the type of cooler.

6. Cost aspects

Make sure to balance the initial investment with the long-term maintenance and operational expenses.

Common uses of oil coolers

Oil coolers are utilized in many industries, which include:

• Construction equipment: Excavators, loaders, cranes
• Agriculture machinery: Tractors, harvesters
• Industrial machinery: Presses, injection molding machines
• System for Marines: Ship hydraulics and propulsion systems
• Mining equipment: Drills, conveyors, crushers
• Generators of electricity: Turbines and auxiliary systems

In all these scenarios, the maintenance of proper temperatures for hydraulic oil is vital to ensure safety and efficiency.

Care tips to maintain oil coolers

For optimal performance, it is important to maintain your equipment regularly:

• Surfaces of heat exchangers that are clean to eliminate dust, debris, or scale buildup
• Look for water leaks in water-cooled systems.
• Examine motors and fans in air-cooled systems.
• Check the temperature of the oil often
• Change filters to stop contamination
• Clean the system regularly to get rid of sludge and deposits

Regular maintenance is not just beneficial for the cooling efficiency, but also increases the life span of the unit.

New trends for oil cooling technology

As the industries strive to improve effectiveness and sustainability, the oil technologies for cooling are advancing. Several emerging trends include:

• Intelligent cooling solutions that include sensors and IoT connectivity
• Fans with variable speeds to ensure energy-efficient operation
• Materials with advanced properties to improve heat transfer
• Small modular designs for simple integration
• Green cooling options for reducing energy and water consumption

These advancements aid in making hydraulic systems more reliable, efficient, and green.

Oil coolers are essential components in hydraulic systems, assuring that the heat generated during operation is effectively controlled. From basic air-cooled units to the most advanced Water-cooled heat exchangers, the selection of the oil cooler will depend on the needs of the system, as well as environmental conditions and the operational requirements.

By ensuring that the oil is at the right temperature, they improve the efficiency of equipment, prolong its lifespan, cut down on the cost of maintenance, and enhance overall reliability. In agriculture, construction, or industrial settings, choosing the best oil cooling solution is vital to ensure long-term success and performance.

While hydraulic systems continue to develop their role in the development of hydraulic systems, oil coolers are bound to grow more important, and they will be an essential component in the future of technology that uses fluid power.
