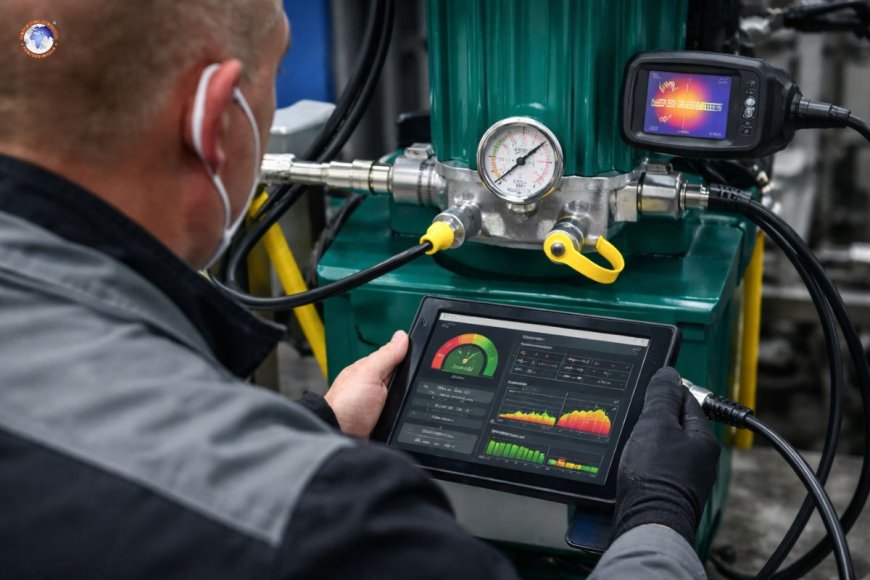

Condition monitoring techniques for hydraulic valve health

Hydraulic systems form the basis of numerous modern industries, supplying machinery in areas like mining, construction, manufacturing, marine operations, and energy production. In the middle of the system are hydraulic valves that regulate fluid flow and pressure, and the direction of the hydraulic fluid. A proper operation for these valves is crucial to ensure safety, efficiency, and reliability in hydraulic processes. Even a small defect within a valve's hydraulic system can cause problems with the system, a rise in power consumption, equipment failure, and the need for costly downtime.

To prevent sudden malfunctions and to maintain the system's performance, companies increasingly use condition monitoring methods. Condition monitoring can be described as a proactive method of maintenance that continuously or regularly examines the condition of equipment to spot the early signs that indicate wear and tear, contamination, or malfunction. Through monitoring the performance of hydraulic valves, maintenance teams can detect issues before they become severe problems.

This blog focuses on the importance of monitoring the health status of valves in hydraulic systems, the most common reasons for failure, and the most efficient methods of monitoring the condition in modern hydraulic systems.

Understanding hydraulic valve health

Hydraulic valves regulate the movement and the pressure of hydraulic fluids within the system. They include the directional control valves and pressure control valves, flow control valves, and proportional valves or servo valves. Each one plays an essential part in ensuring that the hydraulic system functions in the way it was intended.

In time, the hydraulic valves are subjected to extreme operating conditions, such as extreme pressures, temperature fluctuations, as well as fluid contamination and constant mechanical stress. These conditions can cause erosion, wear, internal leakage, or stuck spools, or poor valve performance.

If the health of your valve is declining, there are a variety of symptoms that can be seen, such as:

• System efficiency is reduced

• The actuator's movement is slow or irregular.

• Pressure fluctuation

• Excessive heat generation

• More energy consumption

• Atypical sound or vibration

If they are not properly monitored, this issue could go unnoticed until the system suffers an extreme malfunction.

Importance of condition monitoring in hydraulic systems

Condition monitoring is a method of identifying early signs of deterioration in equipment. As opposed to waiting around for the valve to completely fail, monitoring systems keep track of the operating parameters and flag up unusual trends.

The advantages of monitoring the condition of valves in hydraulics include:

1. Preventing unexpected failures. Early detection of valve problems helps avoid sudden breakdowns of equipment that could cause production to stop.

2. Lowering the cost of maintenance. Maintenance is scheduled only when required, which can reduce the need for repairs and parts replacements.

3. Monitoring the equipment's life span ensures that valves function within the safe limits, thus extending their lifespan.

4. Improved the System Efficiency. Healthy valves provide the proper control of fluids, reducing energy consumption and enhancing the overall performance of hydraulic systems.

5. Improved Safety Valves can cause dangerous surges in pressure or uncontrolled machine movement. Monitoring reduces the risk of these accidents.

Common causes of hydraulic valve failure

Before exploring methods for monitoring, it is essential to know the main reasons for valve failure.

Fluid contamination

Contaminated hydraulic fluid can be one major cause of valve failure. Metal fragments, dirt particles, and water contamination could harm valve components and trigger internal leakage.

Mechanical wear

The continuous operation slowly wears down valve spools, seats, and seals. The wear and tear can alter the tolerances of valves and impact the accuracy of fluid control.

Overpressure and thermal stress

The use of pressure that is not in accordance with the suggested pressure or temperature limits can cause the valve to deform and reduce seals.

Improper installation or alignment

An incorrect installation can lead to unintended wear or mechanical binding, decreasing the efficiency of valves.

Inadequate lubrication

Hydraulic fluid functions as an energy transmission medium as well as a fluid lubricant. A poor-quality fluid can cause friction and speed up the wear of components.

Knowing these causes can help maintenance teams select the most appropriate method of monitoring their condition.

Key condition monitoring techniques for hydraulic valves

Different monitoring methods are employed to evaluate the health of hydraulic valves. Modern systems typically incorporate multiple techniques to give an accurate picture of the valve's performance.

Pressure monitoring

Pressure monitoring is among the most basic methods of monitoring the health of hydraulic valves. Hydraulic valves regulate pressure in the system, and therefore, any abnormal readings of pressure can indicate problems with the valve.

Pressure sensors that are installed at key points within the hydraulic circuit will be used to detect:

• Pressure drops are caused by leakage from the inside

• Pressure spikes due to valve sticking

• Unpredictable pressure fluctuations indicate a malfunction.

Continuous monitoring of pressure allows the operator to spot the signs of performance issues early and to investigate possible valve issues before they get worse.

Flow monitoring

The rate of flow is another crucial factor that determines the performance of hydraulic valves. Flow meters determine the amount of hydraulic fluid flowing through the valve.

If a valve has been partially closed, worn out, or leaks internally, the flow rate of the system could alter. Flow monitoring helps detect:

• Restricted flow due to obstruction or contamination

• Overflow due to valve failure

• Uneven flow patterns indicate unstable valve operation

Flow monitoring is especially beneficial when using flow control valves or proportional valves, where the precise control of fluids is vital.

Temperature monitoring

The changes in temperature of hydraulic systems are often a sign of failures or problems with the components. A valve that is not functioning properly can lead to friction, fluid turbulence, or leakage inside, which all produce excessive heat.

Infrared cameras and thermal sensors are able to monitor temperatures around pipelines and valves for hydraulics. High temperatures could indicate:

• Internal leakage in the valve

• Wear and tear causes friction to increase.

• Blocked flow passages

By identifying temperature anomalies in the early stages, technicians can stop excessive heat and damage to the system.

Vibration analysis

Vibration monitoring is used extensively in rotating equipment; it is also useful within hydraulic equipment. The valves in a hydraulic system that are not functioning properly can produce abnormal vibrations because of unsteady liquid flow or pressure pulses and mechanical wear.

Vibration sensors can detect:

• Cavitation effects

• Pulsations of pressure

• Mechanical wear and tear on valve components

Advanced software for vibration analysis can detect patterns of vibration and pinpoint the cause of the issue.

Acoustic monitoring

Acoustic monitoring is the process of detecting sounds generated by hydraulic components when they are in operation. Valve failures can cause strange noises caused by internal leakage, cavitation, or mechanical impact.

Acoustic emission sensors, as well as ultrasonic sensors, can detect high-frequency sound waves that aren't audible to the human ear.

These sensors are used to detect:

• Cavitation inside the valve

• Internal leakage

• Turbulence in fluids

Acoustic monitoring is especially useful to detect early-stage faults before they show up in other tests.

Oil condition monitoring

The quality of the hydraulic fluid directly impacts the health of valves. Monitoring the condition of oil will determine the purity and chemical composition of the hydraulic fluid.

The most common oil analysis techniques are:

• Particle counting

• Water contamination detection

• Analysis of Viscosity

• Analysis of spectrometric data for metal wear particles

If metallic particles are detected on oil samples, this could signal wear on the internal valve. In the same way, high levels of contamination could indicate filtration issues, which could cause damage to valves.

Regular oil analyses help ensure the proper quality of fluid and safeguard the delicate valve components.

Position and response monitoring

In the most advanced hydraulic systems, particularly those that use proportional valves or servo valves, monitoring the valve's position and response time is vital.

Sensors can be used to monitor:

• Valve Spool Position

• Time to respond to signals from the control

• The accuracy of the valve's movement

If the valve reacts slowly or in a non-conforming manner, it could be a sign of mechanical wear, contamination, or electronic control problems.

This kind of monitoring is especially important for automation equipment where exact control of fluids is essential.

Digital condition monitoring and smart hydraulics

The modern hydraulic system is becoming connected to digital monitoring technology. Sensors with sensors that are smart and Industrial Internet of Things (IIoT) platforms allow real-time monitoring and maintenance predictions.

They collect data from a variety of sensors and analyze the trends with advanced algorithms. Predictive analytics can predict potential valve failures using operational patterns and historical data.

Digital monitoring has many benefits, including:

• Real-time system diagnostics

• Automatic alerts for unusual conditions

• Remote monitoring capabilities

• Maintenance planning based on data

By integrating hydraulic systems into smart monitoring platforms, businesses can dramatically improve operational reliability and reliability.

Best practices for effective hydraulic valve monitoring

Monitoring condition involves careful preparation and a thorough understanding of maintenance procedures.

A few of the recommended best practices are:

Normal sensor calibration
Sensors should be calibrated regularly to ensure that readings are accurate.

Properly placed sensor
Sensors must be placed at crucial points in order to capture valuable information.

Routine oil analysis
Regular oil testing helps maintain fluid quality and prevents contamination-related failures.

Trend analysis
Instead of relying solely on one reading analysis, long-term trends can provide greater insight into the condition of equipment.

Personnel training
Staff Training employees must be taught to read the monitoring data and react to warning signals that are early.

Hydraulic valves are crucial elements that guarantee the efficient functioning of hydraulic systems across different industries. But they operate under extreme conditions and are prone to wear, contamination, or mechanical stresses.

Condition monitoring methods provide a proactive method of maintaining the health of hydraulic valves. By monitoring the parameters like pressure and flow, temperature, the acoustic signal, vibration, and oil state, maintenance teams are able to detect early signs of the deterioration of valves.

Modern digital monitoring technologies improve these capabilities by enabling immediate diagnostics and proactive maintenance. In conjunction with proper maintenance techniques and skilled technicians, condition monitoring drastically reduces downtime, reduces the costs of maintenance, and also extends the life of equipment.

While industries are continuing to implement automated and intelligent technologies, condition monitoring is likely to play a growing function in ensuring reliable and efficient performance of hydraulic systems. Making investments in efficient techniques for monitoring the hydraulic valve will not only safeguard important equipment but it will also contribute to safer and more sustainable industrial processes.
