How Should Hydraulic Systems Be Safely Depressurized?

Hydraulic systems constitute the core of modern industry. From construction and manufacturing sites to fields for agriculture as well as mining, the power of hydraulics allows the heavy lifting of a large scale, precise control, and dependable motion. But the pressurized fluid that powers these systems can also pose a risk when not properly handled.

Depressurization that is not done correctly is among the most common causes of injuries resulting from hydraulics and damage to equipment. High-pressure oils can infiltrate skin, components can be displaced in an unexpected manner, and stored energy may be released rapidly. This is why knowing how to depressurize a hydraulic system safely is vital for engineers, technicians, and maintenance technicians.

In this complete guide, we'll discuss the reasons why depressurization is important, as well as the potential risks and a step-by-step method to ensure that pressure is released safely within the hydraulic system.

The reason why a safe depressurization is crucial

Hydraulic systems function under extremely high pressures, ranging from 1,000 to 5 000 PSI or greater in mobile and industrial equipment. Even when the power source has been switched off, the pressure can be stuck in:

• Hydraulic lines and Hoses

• Cylinders and actuators

• Accumulators

• Manifolds and Valves

The stored hydraulic energy may cause:

• The actuators suddenly move

• High-pressure fluid injection injuries

• Burst or whip failures

• Component damage during servicing

Depressurization guarantees that repair, maintenance, and inspection tasks are done safely and efficiently.

Understanding the Storage of Energy in Hydraulic Systems

Before discussing the procedure, it is important to know how pressure can be stuck.

1. Accumulators

The accumulators of hydraulics store power forms of hydraulic gas or compressed gases. When the pump's power is not running,g the accumulator will maintain pressure within the system. Particular precautions must be taken when depressurizing systems using accumulation devices.

2. Load-Induced Pressure

Vertical cylinders that are used to hold loads (such as presses and lifting equipment) might maintain pressure due to gravity. Even if the pump has been off, the load could generate hydraulic force.

3. Thermal Expansion

The expansion of hydraulic fluid occurs when it is heated. If the fluid is within a closed area in the structure, temperature changes could increase pressure, even after the shutdown.

4. Control Circuits and Pilot Circuits

Smaller pilot lines may be able to hold pressure independently in the system that is main, which can pose unanticipated risks during servicing.

General Guidelines for Security Depressurization

No matter what type of system, the safe depressurization process follows a few basic concepts:

1. Block your power source

2. Eliminate your hydraulic power

3. Release pressure slowly from the system

4. Verify zero energy state

5. Use the correct protective equipment for yourself (PPE)

Let's break it into an easy step-by-step procedure.

Step-by-Step Procedure for depressurizing an Hydraulic System

Step 1 Step 1: Utilize Lockout/Tagout (LOTO) Procedures

When touching any part of the hydraulic system:

• Shut off your hydraulic engine (HPU)

• Shut off the motor or electric engine.

• Lock out and disconnect the electrical power

• Apply proper lockout/tagout devices

• Inform affected personnel

LOTO makes sure that nobody is able to accidentally reboot the system when maintenance is being carried out.

Step 2 Step 2: Find all energy sources

Hydraulic systems usually have multiple energy inputs.

• Motor-driven electric pumps

• Diesel or gasoline engines

• Accumulators

• Elevated loads

• Secondary pumps

Examine the schematics of the system and determine any potential sources of pressure. This is particularly important when working with complex industrial systems.

Step 3. Lower or secure all loads

If the system regulates cylinders or lifting devices:

• Lower the loads until they are in an appropriate and stable place

• Utilize mechanical supports, blocks, or safety stands

• Never rely only on hydraulic pressure to support the weight of a load.

Pressure induced by gravity may persist after the pump has been shut off, which is why it is crucial to secure the load.

Step 4: Release Main System Pressure

After the system has been turned off and the loads are secured:

1. Control valves are manually operated to shift them to neutral positions.

2. Slowly open the directional valves to allow the pressure to be released back into the tank.

3. Use pressure relief valves with designated pressure when they are you have them.

Do not loosen fittings to release pressure unless instructed by the manufacturer. Do this only after confirming the minimal residual pressure.

Step 5: Depressurize Accumulators

If the system is comprised of accumulations:

• Locate the isolation valve for the accumulator

• Stop the valve to separate it from the system.

• Use the manufacturer-recommended discharge valve to release stored pressure

• Verify that pressure has been reduced to zero by using an instrument

Do not attempt to remove an accumulator until you have fully charged it. Accumulators hold a lot of energy and are extremely risky when handled incorrectly.

Step 6: Check Pressure Gauges

After releasing pressure:

• Check all gauges of system pressure

• Verify readings show zero pressure

• Make sure you check both the main and pilot circuits.

If gauges are not available or are suspected of being defective, you can use suitable testing ports and calibrated instruments to verify pressure levels.

Step 7: Unlock Fittings Carefully (If Not Required)

If maintenance calls for disconnecting the hoses or other components:

• Wear eye protection and gloves

• Loosen fittings slowly

• Be aware of spray direction

• Be ready for a small fluid release from residual fluids

Injuries from high-pressure injections can happen even in the case of small leaks, so being cautious is crucial.

Special Requirements for Mobile Equipment

Mobile equipment like loaders, excavators, and agricultural tractors often faced with additional issues:

• Multiple hydraulic circuits

• Attachments that are elevated

• Systems operated by pilots

• Compact spaces

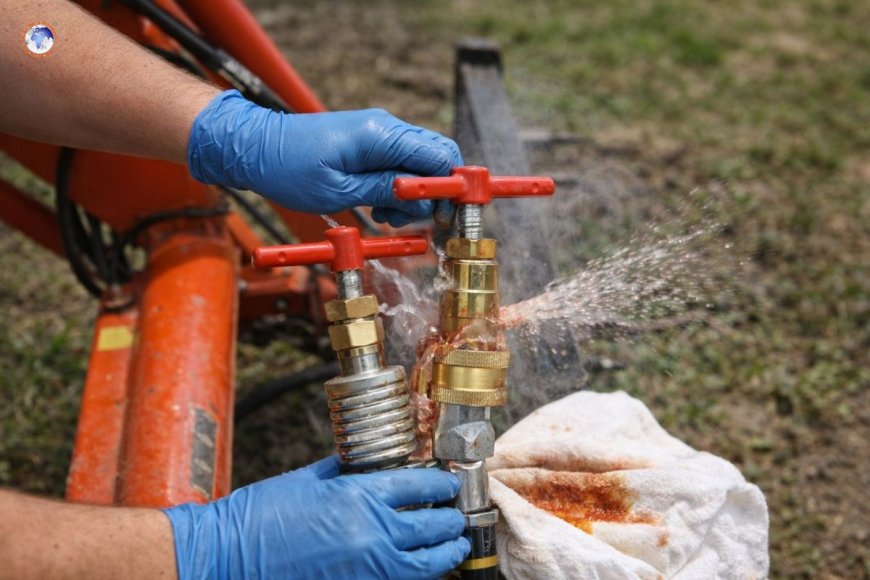

For instance, when it comes to utility or agricultural tractor models like the Bobcat UT6066, hydraulic circuits regulate front implements, loaders, and auxiliary attachments. Each circuit may hold pressure independently. Operators must:

• All attachments should be removed from the ground

• Control levers for the cycle that are turned off by the engine to ease the pressure

• Connect quick couplers only after you have verified that no residual pressure remains

Couplers that quick-connect can be difficult to connect when pressure is trapped, which indicates that the depressurization process was not complete.

Personal Protective Equipment (PPE)

Proper PPE is a must when depressurizing:

• Eye protection or safety glasses

• Oil-resistant gloves

• Clothing for protection

• Steel-toe boots

Injuries from high-pressure oil injections may appear to be minor at first, but they can cause serious internal injury. It is imperative to seek immediate medical attention in the event that fluid gets into the skin.

Common Errors to Avoid

1. Assuming Pressure is Gone Since the Pump is Off

Shutting off the pump will make it impossible to guarantee that there is no pressure. The accumulation of fluid and the trapped fluid may maintain pressure for hours or even for days.

2. Loosening Fittings First

Never use fittings as a principal method for pressure relief. This could result in an abrupt release of fluid and cause injury.

3. Ignoring Pilot Circuits

Small-diameter pilot lines are able to hold pressure without affecting principal circuits.

4. Skipping Verification

Always ensure zero pressure by using the gauges and test ports prior to beginning maintenance.

Importance of Documentation and Training

Depressurization that is safe and effective requires education and adherence to the manufacturer's guidelines. Maintenance teams must:

• Review hydraulic schematics regularly

• Conduct safety-related training sessions

• Use written procedures for Standard Operating Procedures (SOPs)

• Do risk assessments before servicing

Documented procedures help reduce the risk of error and enhance safety in the workplace.

The Function of Modern Safety Features

Modern hydraulic systems are increasingly incorporating safety-enhancing features like:

• Digital monitoring of pressure sensors

• Automated pressure bleed-down systems

• Systems to prevent access when under pressure

• Warning indicators and clear labeling

These tools help to reduce human error, but they don't eliminate the need for manual verification.

Emergencies

If a hydraulic part is damaged under pressure:

• Do not attempt repairs that require immediate attention.

• Stop the device in a safe manner.

• Remove all personnel from the area

• Let the system stabilize

• Follow the emergency shutdown procedures for emergency shutdowns.

In the event of an injury to your injection, you should seek medical attention immediately and inform healthcare professionals that you have an injury to a high-pressure fluid.

The development of a standard Depressurization Checklist

The organizations should follow a standard checklist, which includes:

1. LOTO used

2. The load is lowered and secured

3. Main pressure relief

4. Accumulators discharged

5. Gauges verified at zero

6. PPE worn

7. Cleared area

A checklist written down reduces the possibility of missing crucial actions.

Hydraulic systems are robust and efficient; they require respect. Safe depressurization isn't an ordinary maintenance task, but an essential safety measure that safeguards the equipment, employees, and the operations.

Following a structured lockout/tagout procedure by identifying all energy sources, reducing pressure effectively, and confirming zero energy states, experts can greatly reduce the chance of accidents.

If you are working on hydraulic industrial presses as well as factory automation lines or mobile equipment on the jo,b the basic principles remain the same that is: isolate, relieve, confirm, and secure.

In hydraulics, the stored energy isn't visible but never harmless. A systematic approach to depressurization will ensure that the systems are effective without becoming risky.
