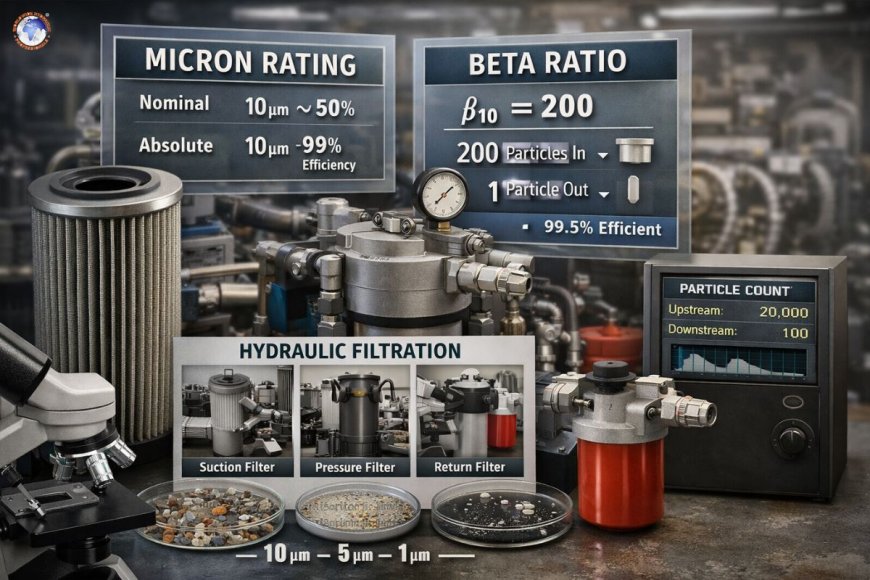

Practical overview of micron rating & beta ratio in hydraulic systems

Hydraulic systems depend heavily on clean fluid to operate effectively, efficiently, and safely. The presence of contaminants is among the most common reasons for failure of hydraulic systems and can cause wear, lower efficiency, and expensive downtime. To manage contamination effectively, the filtration process plays a crucial part. Two fundamental principles define the effectiveness of filters: micron rating and beta ratio.

While these terms are frequently included in specifications for filter systems, they are often confused or simplified. This blog offers a straightforward technical description of micron ratings and beta ratios. It explains the meaning behind them, what they mean, how they're determined, and how you can implement them in real-world hydraulic systems without having to delve into the complexities of calculations.

Understanding contamination in hydraulic systems

Before getting into micron ratings and beta ratios, it's crucial to comprehend the source of the contamination that occurs in hydraulic systems.

Contaminants be:

• Solid particles (dust, metal wear debris, sand)

• Water

• Air bubbles

• Chemical degradation products

In all of them, solid particles are the most harmful. They are responsible for:

• Wear and tear on components

• Blockages in narrow passageways

• Seals are degraded

• A rise in leakage and decreased efficiency

Modern hydraulic components--especially servo valves and proportional valves--have extremely tight tolerances, often in the range of just a few microns. This makes efficient filtration essential.

What is a micron?

The term "micron" (or millimeter) refers to the length of one micron (um), which is a measurement of length that is equal to one millionth of a millimeter. For a better understanding:

• Human hair diameter: ~70 um

• Fine dust particle: ~10 um

• Bacteria: ~1-5 um

Within a hydraulic system, the smallest particles that aren't visible to the naked eye could cause major harm.

Micron rating: what it really means

Definition

A Micron Rating of the hydraulic filter is how many particles the filter is made to catch. But this definition could be confusing in the absence of a thorough understanding.

There are two main kinds of micron ratings:

1. Nominal micron rating

The term "nominal rating" refers to the fact that a nominal score indicates that the filter can remove some percentage of particles in a particular size, usually between 50% to 90 percent.

For instance:

• A nominal 10-micron filter will only catch a portion of particles that are this size, but it allows a substantial quantity to be able to pass through.

This kind of rating isn't very exact and may differ between manufacturers.

2. Absolute micron rating

An absolutely rated rating means that the filter eliminates nearly all particles of a specific dimension, typically at a higher than 98%.

For instance:

• A 10-micron absolute filter can capture almost all particles that are in that size.

Absolute ratings are more reliable and are typically built on standard tests.

Limitations of micron rating

Although micron ratings provide an overview of the filtration capabilities, they have significant limitations:

• It doesn't indicate how effective the filter is.

• It is not able to show how it performs across different sizes of particles.

• It is not a reflection of actual operating conditions.

Due to these limitations, micron rating by itself is not sufficient to assess the effectiveness of filters. This is when the beta ratio comes into play. Beta ratio is crucial.

Beta ratio: A more accurate measure

Definition

Beta ratio: Beta rate is an indication of how well the filter can remove particles of a particular size. Instead of simply listing the size of the particle, it also indicates how the filter performs at that size.

Interpreting the beta ratio

The beta ratio measures the amount of particles that enter the filter compared to the number that are able to pass through it.

Practical example:

• A filter that has an alpha factor of 20 at 10 microns implies:
  Out of 200 particles that enter the filter in this size, only one particle is allowed to pass through.

Beta ratio is an extremely powerful and useful way to study the efficiency of filters.

Beta ratio and efficiency (simplified)

Instead of formulas, here's an easy method to comprehend the efficiency of your system:

The greater the beta ratio, the more efficient the filtration.

ISO 16889 multi-pass test

Modern filters are assessed using the standard test referred to as ISO 16889, which is a standardized test. ISO 16889 test with multiple passes.

How it works:

• Contaminated fluid circulates through the filter several times

• Particle counters determine the amount of contamination before and after filtering

• Performance is assessed under real-world conditions.

This method gives the most reliable beta ratio values and guarantees consistency across different manufacturers.

Micron rating vs beta ratio: key differences

The key takeaway is:
Micron rating informs you of the size of particles being targeted, and beta ratio indicates how efficiently they're eliminated.

Practical application in hydraulic systems

1. Matching filter to system requirements

Different components of hydraulics require different levels of cleanliness:

Sensory components such as servo valves require high-efficiency filtering, and the beta ratio is particularly crucial.

2. Selecting the right filter

When selecting a filter, take into consideration:

• Cleanliness is a must

• Sensitivity of components of the system

• Operating environment (dusty, humid, etc.)

• System pressure and flow rate

Instead of listing just micron ratings, it is preferable to include a beta ratio. For instance:

• Instead of "10-micron filter."

• Make use of: "10-micron filter with high beta ratio (e.g., 200 or more)"

This guarantees reliable and consistent efficiency of filtration.

3. Filter placement in the system

Different components within a hydraulic unit need different strategies for filtration:

Suction filters

• The pump is located just before it.

• Usually, the coarse filtration process is used.

• It is designed to stop massive particles from entering the pump.

Pressure filters

• It is located after the pump

• Provide fine filtration

• Secure the most delicate downstream components

Return line filters

• Clean oil before returning to the reservoir

• Assist in maintaining the overall cleanliness of the system.

Each needs a different balance between the micron rating and the beta ratio.

4. Balancing filtration and flow

Although finer filtration can improve the cleanliness of your home, it isn't without its drawbacks:

• Pressure drop increases

• Potential restriction in flow

• More frequent maintenance

A well-designed system can balance:

• Filtration efficiency

• Needs for flow

• Service times

Common misconceptions

"Lower micron means better filter."

But not always. A smaller micron count is only helpful when the filter is effective and well-sized.

"All filters with the same micron rating perform the same."

Incorrect. Two filters that have the same micron rating may perform differently based on their ratio of beta.

"Nominal and absolute ratings are similar."

They're not. Absolute ratings are far more reliable and are recommended for applications that require a high degree of confidence.

Real-world example

Take a look at a hydraulic system that has repeatedly failing valves.

Initial situation:

• Filter rated to 10 microns (nominal)

• Lack of control over contamination

Problem:

• Fine particles can pass through the filter

• Wear and failure can result in precision components

Improvement:

• Replaced by a high-efficiency filter that has a very high beta ratio

• Improved return line filtering

Result:

• Lower levels of contamination

• Increased reliability of the system

• Lower maintenance costs

This illustration clearly illustrates the importance of looking beyond the micron rating.

Importance of cleanliness standards

Performance of filters is usually linked to cleanliness standards, like ISO 4406, which defines levels of contamination within hydraulic fluids.

A common cleanliness code shows particle counts of various dimensions. To maintain these levels, it is necessary:

• Proper filter selection

• Correct beta ratio specification

• Regularly monitored

Maintenance and monitoring

Even the best filtering system isn't going to work without proper maintenance.

Best practices:

• Monitor pressure drop across filters

• Replace filters in the schedule

• Do a regular oil analysis

• Prevent contamination during maintenance

Future trends in hydraulic filtration

The technology of hydraulic filtration continues to develop:

• Modern synthetic media for filtering

• Smart filters that monitor the condition

• New strategies for reducing contamination

These developments emphasize the importance of analyzing filtration performance indicators.

Beta ratio and micron rating are both crucial to understand hydraulic filtration; they play different roles:

• The Micron value is a measure of the size of the particle that is being aimed at.

• Beta Ratio shows how efficiently these particles are removed

In real-world applications, relying on micron ratings by itself is not sufficient. Beta ratio offers the transparency and security required for proper control of contamination.

When they can apply both concepts correctly by applying both concepts correctly, hydraulic engineers and system operators can:

• Extension of the equipment's life

• Improve performance

• Reduce maintenance and downtime

In the modern hydraulic system, where precision is paramount, efficient filtration isn't an option, but a requirement.
