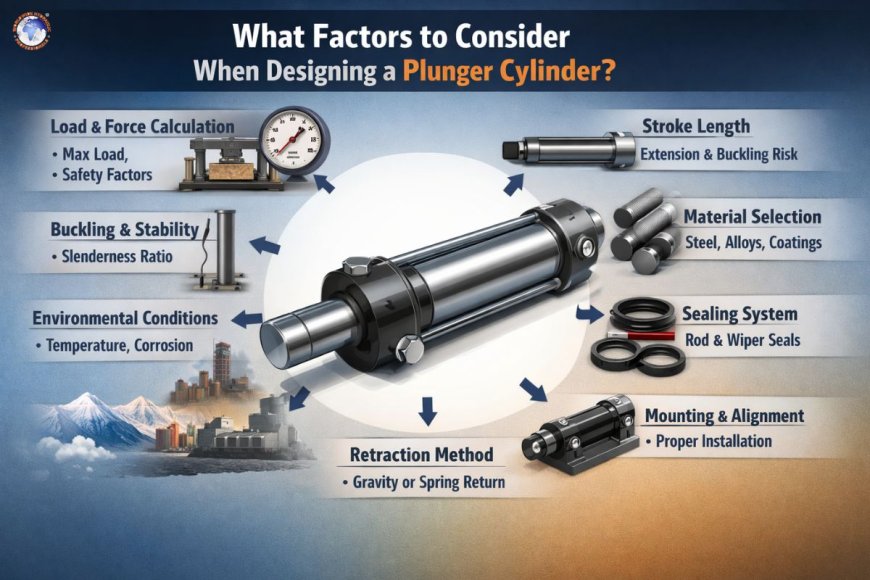

What factors should be considered when designing a plunger cylinder?

Plunger cylinders, also known as the ram cylinders, are commonly utilized in hydraulic systems when a strong force and unidirectional motion are needed. As opposed to double-acting cylinders, pistons work in one direction by using hydraulic pressure to stretch the plunger, and gravity or external force returns it. They are typically used in hydraulic presses and tipping mechanisms, lifting systems, and heavy-duty industrial machines.

Making a plunger cylinder is not an easy task and requires careful consideration of a variety of mechanical as well as hydraulic, environmental, and operational elements. A properly designed cylinder guarantees reliability, endurance, and safety, while an improperly designed one could result in leakage, premature failures, or even catastrophic failures.

In this blog, we'll examine the most important aspects engineers should think about when designing the plunger cylinder.

1. Load requirements and force calculation

The most essential aspect of designing a plunger is knowing the load it will have to handle.

The most important considerations are:

• The maximum weight that can be carried or moved

• The nature of the load (static as well as dynamic)

• Requirements for the safety factor

• Impact forces or shock loads

The force required determines the bore size of the cylinder and the operating pressure. The formula that is used to determine the required force is:

Force = Pressure x Area

A greater load demands either a greater bore diameter or greater pressure in the system. However, increased pressure comes with limitations because of system safety and the component's ratings; therefore, bore sizing is usually the most preferred method.

Designers must also incorporate the safe measure (typically 1.25 or higher, but could be 2.0 or more, depending on the application) to allow for unexpected overloads.

2. Operating pressure

Operating pressure plays an important part in how the plunger is designed.

The factors to consider:

• System pressure rating

• Peak vs. continuous pressure

• Pressure increases and spikes

The higher pressure permits smaller cylinders, but it also increases the stress on parts like seals, cylinder walls, and connections. Thus, the strength of the material as well as the wall thickness should be chosen with care so that they can resist internal pressure without breaking or deteriorating.

3. Stroke length

The length of the stroke is related to the distance that the plunger can travel during operation.

Design factors to consider:

• The length of extension required

• Installation constraints due to space

• The risk of Buckling (especially during long strokes)

Long stroke lengths can increase the chance of bending or breaking, particularly if your plunger extends during the load. To reduce this risk:

• Increase plunger diameter

• Utilize the guide mechanisms

• Limit unsupported length

In vertical setups, gravity is a major factor in retraction; however, in horizontal applications, other return mechanisms could be required.

4. Buckling and stability

Plunger cylinders are much more prone to buckling when compared to piston cylinders due to their lengthy rods, which are not supported.

Important factors:

• The ratio of Slenderness (length to diameter)

• End conditions (fixed or pinned)

• Direction of load and alignment

Engineers typically use Euler's Buckling formula to make sure that the plunger does not fail when pushed by compressive loads. The proper alignment in the installation process is crucial to avoid side loading, which can drastically reduce the life of the cylinder.

5. Material selection

Selecting the appropriate material is crucial to ensure durability, strength, and resistance against environmental elements.

Common materials:

• High-strength steel (for the plunger and cylinder barrel)

• Alloy steel is a strong alloy for applications that require a lot of force.

• Steel that is stainless for environments with corrosive elements

Materials properties to be considered:

• Tensile strength

• Resistance to fatigue

• Resistance to corrosion

• Wear resistance

Surface treatments like the chrome plating process or even nitriding is often applied to plungers to increase wear resistance and decrease friction.

6. Sealing system design

Seals are crucial elements that stop leaks and help maintain pressure inside the piston.

Seals are made of different types:

• Rod seals

• Wiper seals

• Static seals

The most important considerations are:

• Operating temperature and pressure

• Fluid compatibility

• Contamination exposure

In the plunger cylinders, sealing is comparatively less complicated than in double-acting ones since the piston seal is not present. But the rod seal has to be very effective as it is the principal seal element.

Wiper seals are especially important in environments that are dirty to stop particles of dirt, dust, or even metal particles from getting into the system.

7. Surface finish and tolerances

The surface finish has a major impact on seal longevity, along with overall quality.

Important aspects:

• Smooth plunger surface reduces seal wear

• Proper tolerances prevent leakage

• Avoid roughness or waviness that is too much.

A superior finish on the surface (typically accomplished by the grinding process and then polishing) assures minimum friction and excellent sealing performance.

8. Mounting and alignment

A poor mounting technique can cause uneven wear, which can lead to eventual failure.

Considerations for mounting:

• The type of mounting (flange or clevis, trunnion)

• Load direction relative to the axis of the cylinder

• Structural rigidity of the base for mounting

The cylinder needs to be precisely aligned with the load in order to avoid forces from the sides. Even slight misalignments can result in:

• Seal damage

• The increase in friction

• Wear and tear that is premature

9. Retraction method

Because plunger cylinders are usually single-acting, they are not operated by hydraulics.

Common methods of retraction:

• Gravity

• External mechanical force

• Spring return (in smaller systems)

Designers should make sure that the technique for retraction is safe and constant in any operating conditions.

10. Environmental conditions

The operating environment has a major impact on the design of the cylinder.

Things to think about:

• Temperature extremes

• Exposed to chemicals or moist conditions

• Dust, dirt, and other debris

Modifications to the design:

• Use materials with abrasion resistance

• Apply protective coatings

• Make sure to use seals for heavy-duty wipers.

For instance, in offshore or marine environments, stainless steel or components coated with special coatings are vital to stop corrosion.

11. Hydraulic fluid compatibility

The kind of hydraulic fluid utilized can affect the seal material and overall performance.

The most important considerations are:

• Viscosity range

• Stability in temperature

• Compatible with seals and other materials

The use of incompatible fluids could result in:

• Seal swelling or degradation

• Lubrication is reduced.

• More wear

12. Safety and standards compliance

Safety is a crucial element of the design of any hydraulic system.

Important considerations:

• Mechanisms for relief from pressure

• Rating for burst pressure

• Conformity to the industry standard (ISO, ASTM, etc.)

Designers need to ensure that the cylinder will be able to handle the worst-case scenarios without failing. Safety features like pressure relief valves as well as overload protection systems must be incorporated into the overall design.

13. Maintenance and serviceability

An ideal design should allow for ease of maintenance and last for a long time.

Maintenance features in design:

• Seals that can be replaced with ease.

• Standardized components

• Easy disassembly

The reduction in maintenance complexity will help minimize downtime and operational expenses.

14. Cost vs performance balance

High-end materials and sophisticated designs enhance efficiency, but they can also raise costs.

The most important trade-offs are:

• The quality of the material compares to. budget

• Performance in comparison to. manufacturing complexity

• Durability is compared to. the initial investment

The objective is to find the best balance, which meets demands for performance, but without incurring excessive expenses.

15. Application-specific requirements

Each application has specific requirements that influence the design of cylinders.

Examples:

• Hydraulic press: They require high power and accuracy

• Dump truck: Need long stroke and long-lasting

• Lifts for industrial use: You should expect smooth, steady operation

Knowing the application will ensure that the cylinder can be tailored to ensure maximum efficiency and dependability.

The design of a plunger cylinder requires an exact balance between mechanical durability, hydraulic efficiency, and environmental flexibility. From calculations of load and selection of materials through sealing and alignment systems, every element has a crucial impact on the durability and performance of the cylinder.

A well-designed plunger can not just improve the efficiency of the system but also lower the cost of maintenance, increase security, and guarantee long-term reliability. When considering the various aspects that are discussed in this blog, engineers can develop sturdy and effective hydraulic solutions that are tailored to the specific needs of their customers.

In heavy industrial or mobile equipment, the importance of a thoughtful and precise design of the plunger cylinder can't be overstated.
