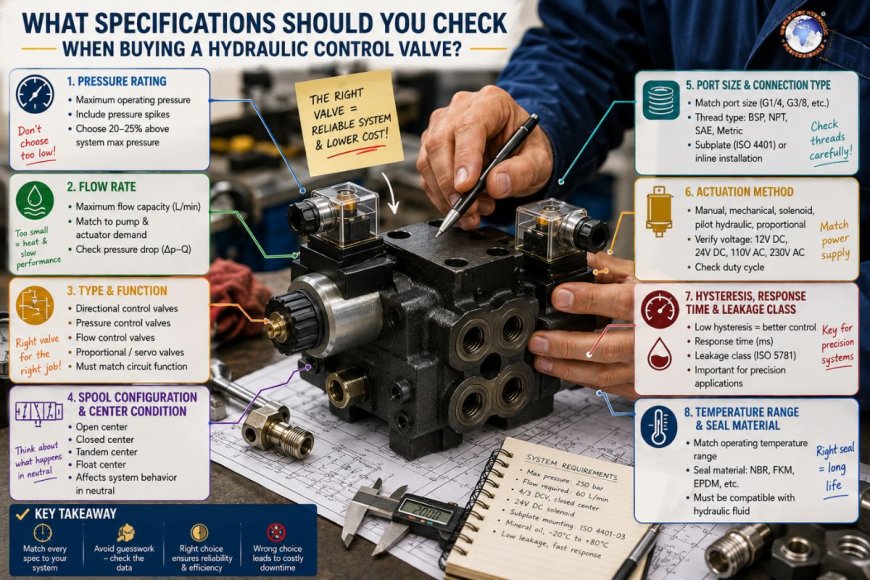

What specifications should you check when buying a hydraulic control valve?

The hydraulic valve has one crucial task: it regulates the pressure, flow, and direction of the hydraulic fluid in the system. When it's working properly, all downstream components—motors, cylinders, and actuators—respond precisely. If the valve is not properly matched with the system, it can result in slow performance, overheating, wear and leaks, and, in the worst-case scenario, catastrophic failure.

The issue is that hydraulic control valves cannot be interchangeable products. Two valves that appear similar on the market could have totally different performance envelopes. Making a purchase based on price or based on visual similarities to an older part is a sure way to incur costly downtime. It is the only method to ensure you get it right is to review the specifications before purchasing—and to know the significance of each specification to your specific application.

This guide outlines the most important specifications and what they are measuring and how you can evaluate the system you are using.

1. Pressure rating (Maximum operating pressure)

Pressure rating should be the initial requirement to test. It determines the maximum system pressure that the valve is able to handle without failing or leakage within the valve. Control valves for hydraulics are usually measured in PSI or bar, and the rating should be sufficient to meet your system's maximum operating pressure. This is not only the nominal operating pressure but also the peak pressure spikes that happen when the load is changed and cylinder-end-of-stroke conditions and other shock events occur in the system.

In general, you should select a valve with the pressure rating of between 20 and 25% over the system's maximum operating pressure. If your system is operating around 200 bar, avoid buying an item that is rated at precisely 200 bar. The margin takes into account temporary spikes in pressure, which gauges typically don't record in real-time.

Pay attention to the differences between static as well as dynamic ratings. Certain valves are rated with static holding pressure; however, they have lower limits in constant flow situations. Determine which rating is appropriate for the specific situation you are operating in.

2. Flow rate (Maximum capacity for flow)

Flow rate, which is expressed in units of liters per minute (L/min) or gallons per minute (GPM), will determine how much fluid a valve can move without causing a significant pressure drop. This is among the most often incorrect specifications used in the field.

The valve is too small—choosing one that has an output capacity that is lower than the actual flow of your system results in a tension drop in the valve. This is a waste of energy, creates heat, and can reduce actuator velocity and strength. In the worst situations, it may result in valve spool vibrations and noise.

Oversizing is not as harmful; however, it can cause problems, especially in control valves, where precise metering is needed. A valve designed for 100 L/min and operating at 10 L/min will suffer inadequate control at low flow rates.

The valve's flow rating must be matched to the pump's output and the needs of your actuators for flow. Also, check your valve's drop in pressure and compare it. flows graph (Dp-Q curve) If it is available, it will tell you precisely the amount of pressure that you lose across the valve for different flows.

3. Type and function of the valve

Different hydraulic control valves perform the same purpose. Before comparing specifications, ensure that you have the correct valve type to suit your needs:

• The valves for directional control (DCVs) transfer fluid to various actuator ports. They are identified through the amount of ports as well as positions, such as a 4-3/valve, which has three ports as well as four switching positions, as an example.
• The valves that control pressure are used to regulate pressure in the system. Types of relief valves include pressure-reducing valves, sequence valves, and counterbalance valves, each having an individual purpose.
• Control valves for flow regulate the flow rate independently of the pressure change. Throttle valves, needle valves, and flow control valves that are pressure-compensated belong here.
• Proportional and servo-type valves allow electronically controlled, continuous flow direction and flow for exact applications.

Verify that the valve's type is compatible with the circuit's function. A directional valve can't be used in place of the pressure-reducing valve in the event that the port dimensions match.

4. Spool configuration and condition of the center

For valves that control directionally, the spool configuration, especially the center condition, is an important setting that influences the operation of the system during neutral.

Common conditions for centering include:

• Ports that are open: They all join the neutral. The pump is unloaded to the tank, reducing energy consumption in systems that don't have to keep their position.
• Closed center All ports are locked in neutral. The pressure is kept, making it suitable for applications that require load-holding.
• Tandem center port for pressure connects to tank via valve, while the actuator ports are closed, allowing unloading of the pump while retaining load.
• Center of flotation: Every port, including actuator ports, is connected to the tank—to be used when the actuator has to be able to move in neutral.

Making the wrong choice for center conditions could cause an actuator to shift when under pressure, a pump that is operating at full pressure for a long time, or a circuit that can't hold its place. Always ensure that the spool's configuration is compatible with the circuit's design.

5. Size of the port and the type of connection

The valve's size and thread type should match your manifold and hydraulic connections. Common thread types include BSP (British Standard Pipe), NPT (National Pipe Taper), SAE straight thread (O-ring boss), and metric threads according to DIN standards.

Incorrectly matching thread standards—for example, threading a BSP that is inserted into an NPT port—causes leak pathways immediately and could harm threads in ports. Even within a thread standard, make sure the port's dimension (G1/4, G3/8, G3/8, G1/2, and so on) is in line with your line and the size of the fitting to avoid any flow restrictions at the point of connection.

Make sure to check if the valve was designed to be used for subplate (manifold) installation or inline installation. Many industrial valves employ D03, D05, or D08 mounting patterns (ISO 4401) for subplate mountingIf you're replacing a valve that is on the manifold that you have, the pattern of mounting must exactly match.

6. Method of calculation

Hydraulic control valves can be shifted using different mechanisms based on the purpose:

• Manual actuator (lever or hand knob) used for low-cycle, user-controlled applications.
• Mechanical actuator (cam or roller): The trigger is triggered by movement of a machine, commonly used in sequence circuits.
• Solenoid activation (electric coil) It is the most commonly used method used in automated systems. Make sure you check the voltage (12V DC, 24V DC, 110V AC, or 230V AC) and the power consumption to be in line with the electrical supply.
• Pilot hydraulic actuation is utilized in high-flow applications when solenoid force isn't enough to move large spools in a direct manner.
• Proportional solenoid: for electronic variable control.

For valves operated by solenoid, verify the rate of duty and whether the solenoid has been designed for continuous energization or for only intermittent usage. Energizing a solenoid with intermittent duty continuously will cause burning of the coil.

7. Hysteresis, response time and the leakage class

For proportional or precision valves, three specifications are important:

Hysteresis measures the variation in the valve's response when there is a change in input signals. Lower hysteresis means better and reproducible control. The best servo valves have an hysteresis of less than 1%. Typical proportional valves have a range of 3-5%.

Time to respond (step time) is the time that the valve takes to go from completely closed to fully opened following the command signal usually expressed in milliseconds. A quick response is essential for applications such as press brakes as well as injection molding machines or active controls for vibration.

Internal leakage identifies the extent to which fluid flows through the spool in a neutral or closed position. Leakage is categorized according to ISO 5781 or manufacturer standards and becomes crucial when the valve has to hold an object for prolonged durations without drift.

8. Temperature range, seal material and sealing

Verify the valve's operating temperature and make sure the seal's material matches with the fluid you use. Standard valves that have NBR (nitrile) seals are suitable for mineral oil-based fluids in an average temperature range from -20°C up to +80°C. Systems that use phosphate ester fluids, biodegradable esters, or water-glycol liquids require FKM (Viton) and EPDM seals, respectively. Incompatible seals expand, harden, or deteriorate rapidly, causing internal leakage as well as valve failure.

• Maximum operating pressure and the margin over system maximum
• Flow rate is matched to the actual demand for the actuator and pump output
• The correct type of valve to perform the circuit's function
• Spool and center condition that is suitable to your load-holding requirements and energy needs
• Size of the port and thread size that match your lines and manifold
• Type of actuator and voltage match the control system you are using.
• Hysteresis and response time and leakage class for precise applications
• The range of temperature and sealing material compatibility with your fluid

The hydraulic valve isn't an easy purchase. The specs above aren't marketing figures; they determine how the valve performs effectively and safely in your particular system. Make sure you make sure that every parameter is matched to your operating conditions, and you'll be able to avoid the more costly expense of a poorly matched valve operating.
